Product Details
Brand Name: | E-link | Place of Origin: | China | Model Number: | LNK-IMC208P-SFP Series |
Product Description

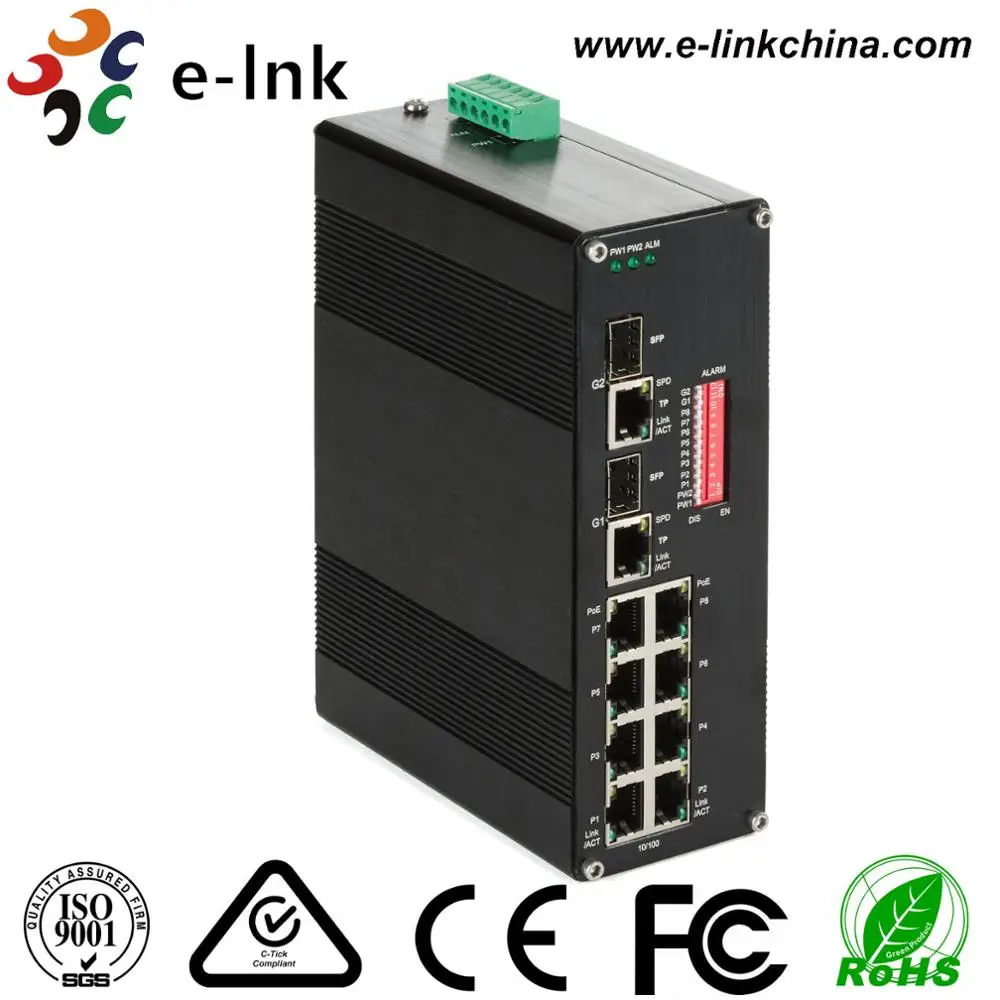

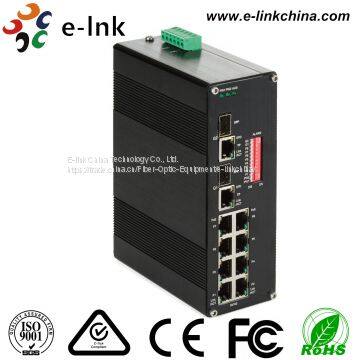

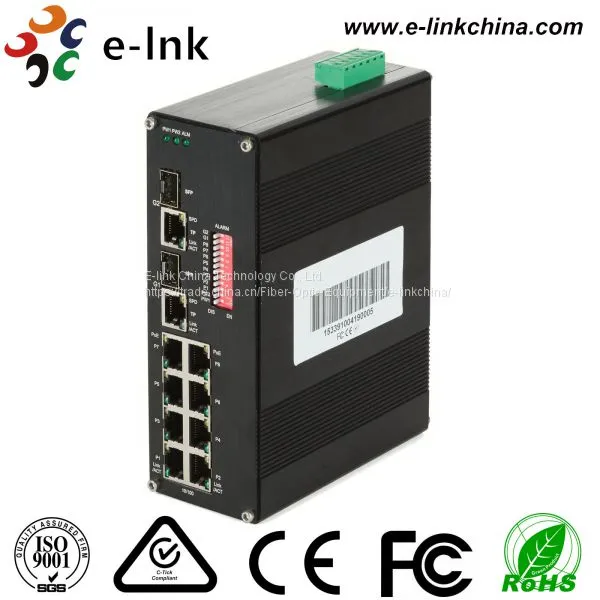

Product: Hardened Unmanaged 8-port 10/100Base-TX (PoE) + 2-port 10/100/1000Base-TX/SFP Combo Ethernet Switch
Overview
The LNK-IMC208P-SFP product is a Self-Configured Hardened Ethernet switch which provides 8 port 10/100Base-TX + 2x1000Base-FX SFP port.
Comply with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX/FX and IEEE 802.3x. It supports IGMP snooping which significantly saves the network bandwidth and reduces network load. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
8 10/100Base-TX + 2 10/100/1000Base-TX/SFP Combo with PoE
· Support IEEE802.3at PoE+ (30W per port)
· RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
· Combo RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
· Supports external SFP
· Supports 802.3x Flow control
· Support 8K MAC addresses
· 1M bits frame buffer memory
· Supports Relay output for Power and Port failure
· Redundant Power Inputs
· Supports DIN-Rail and Wall-mount installation
· Environmentally hardened
-40°C to 75°C (-40°F to 167°F) operating temperature
Warranty
5-Year Warranty

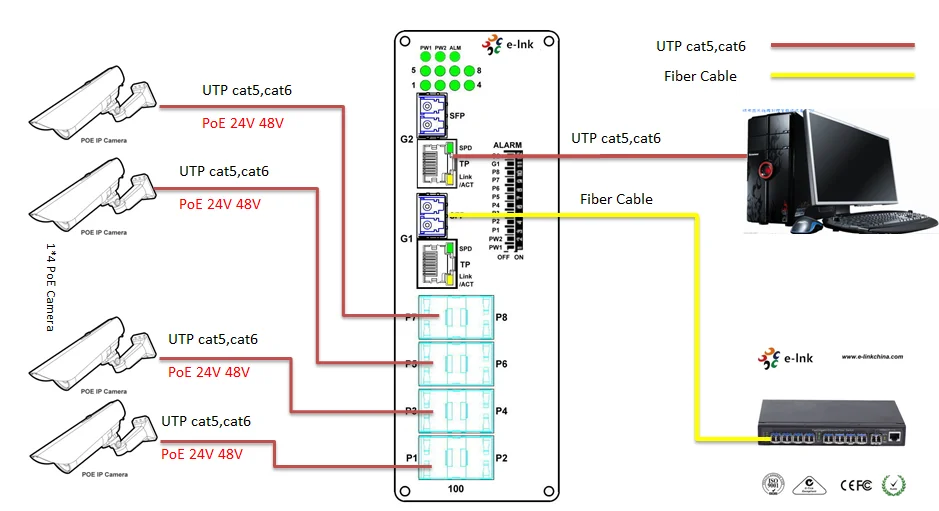

Typical Application
Technical Indexes
Ethernet | |
Standards: | IEEE802.3 10BASE-T |
IEEE802.3u 100BASE-TX/FX | |
IEEE802.3ab 1000BASE-T | |
IEEE802.3z 1000BASE-X | |
IEEE802.3af/at Power over Ethernet | |
Processing Type | Store-and-Forward |
Switch Fabric | 5.6 Gbps |
Forward Filter Rate | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer Memory | 1M bits |
Max Packet Length | 1522 Bytes |
Address Table Size | 8K MAC Addresses |
Connector | 10 x RJ45 |
Optical Port | 2 x SFP 1000Base-FX |
Environmental | |
Operating Temperature: | -40°C to 85°C (-40°F to 177°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Electrical and Mechanical | |

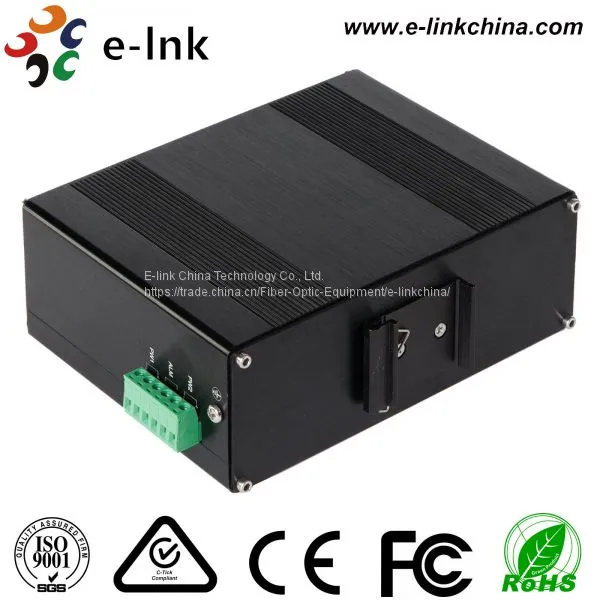

Input Power: | 24VDC or 48VDC (6-pin Terminal Block) |
Power Consumption: | 5W Max. 0.2A@24VDC |
Port: | RJ45 Port 1 ~ Port 8 |
Protection: | |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |

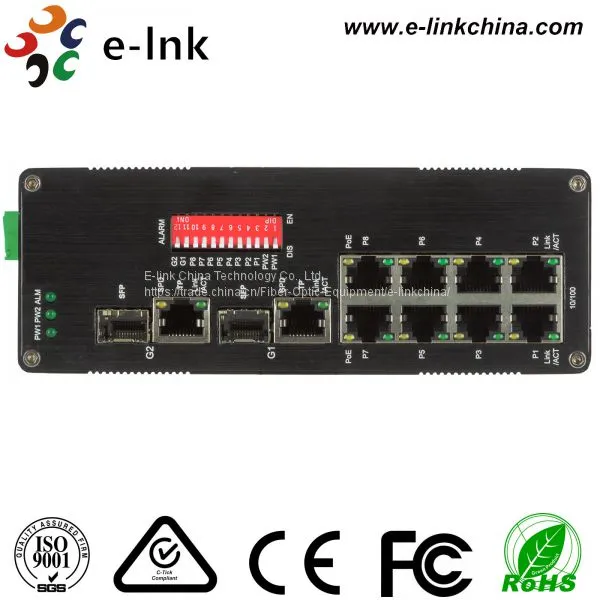

LED Indicators: | |
Power: | Power Status |
Ethernet(Per Port): | Link/Activity, Speed |
SFP: | Link/Activity |
Dimensions (WxDxH): | 59 x 120.5 x 165 mm |
Weight: | 0.9Kg |
Casing: | Aluminum Case |

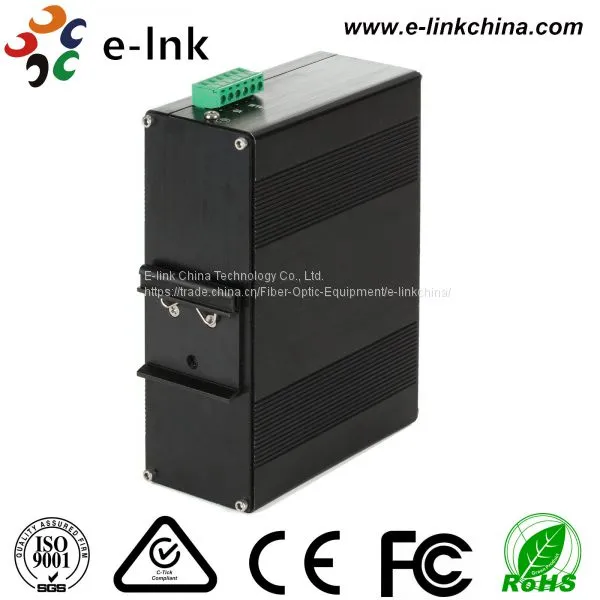

Mounting Options: | DIN-Rail / Wall-mount |
Regulatory Approvals | |
ISO9001, CE, FCC, RoHS | |
EMI | |
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010 | |
EMS | |
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
Model | Description |
LNK-IMC208P-SFP-24/24 | Hardened Unmanaged 8-port 10/100Base-TX (PoE) + 2-port 10/100/1000Base-TX/SFP Combo Ethernet Switch, Input 24VDC PoE 24VDC 15.4W |
LNK-IMC208P-SFP | Hardened Unmanaged 8-port 10/100Base-TX (PoE+) + 2-port 10/100/1000Base-TX/SFP Combo Ethernet Switch |
SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
SFP module is to be purchased separately. | |
Mounting Options | Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
Power Options | Power Supply is to be purchased separately. |
