Home > Products > laser cutting and engraving machine > MC 9060 glass cup laser engraving machine wood laser cutting and engraving machine price

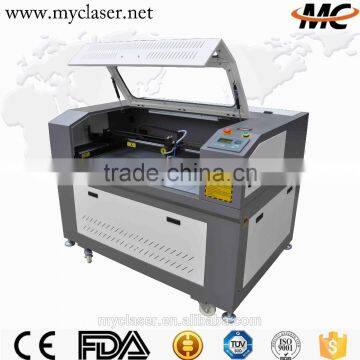

MC 9060 glass cup laser engraving machine wood laser cutting and engraving machine price
- 200 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood |
Cutting Thickness: | Depends | Cutting Area: | 900*600mm | Cutting Speed: | 0-60000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | laser cut |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | MC |
Model Number: | MC9060 | Certification: | CCC, CE, GS, ISO, SGS, UL, Other, CCC, CE, GS, ISO, SGS, UL, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MC 9060 glass cup laser engraving machine wood laser cutting and engraving machine price

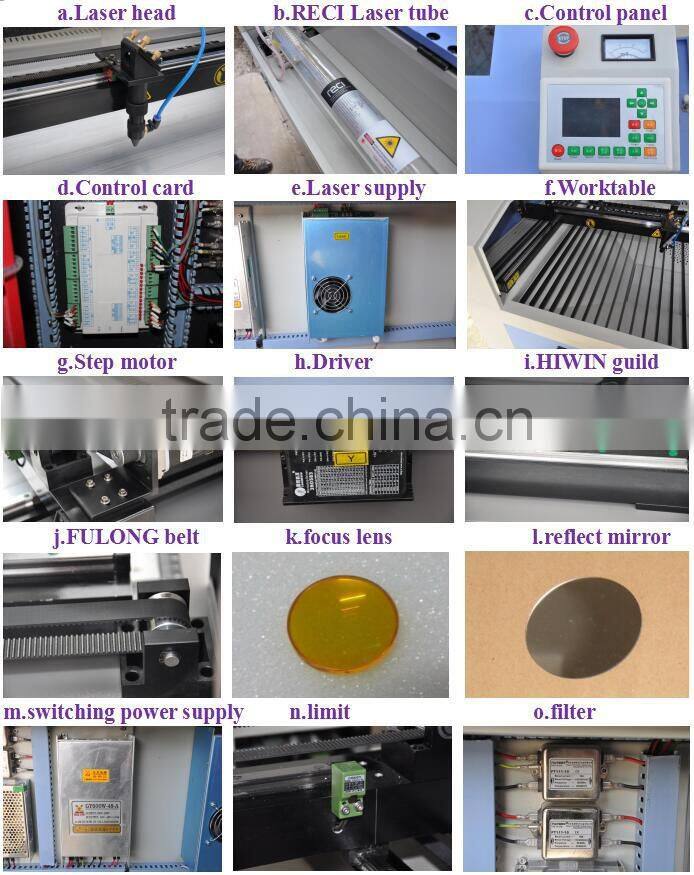

fessional flexible laser head,move more fast,easily to change the lens and focus distance
b.RECI 80w laser tube,has more long service life(over 8000 hours),stable laser beam, is the best laser tube in China.
c.RUDIA control panel,specialize in English,easy to operate.
d.RUIDA control card,work with the panel,very stable control the whole machine.
e.Professional laser supply,work with the laser tube,provide the stable Voltage.
f.Blade work table,made from black aluminum,avoid rusting.specialize for wood,acrylic,
plastic.etc hard materials.
g.High precision step motor,could keep high precision and provide more fast speed.
h.Driver,work together with the motor,very stable and high efficiency.
i.HIWIN square guild, the best guild for the machine, could keep high precision for long term.
j.FULONG belt,the the best belt for the machine, has long time service life.
fessional focus lens import from Singapore.can do maximum possible focus laser.
fessional reflect mirror also import from Singapore,could reflect the laser do
maximum possible.
m.switch power supply,help provide the stable Voltage for motor,driver,and control system.
n.limit.limit the range of the laser head,protect the head and guild.
o.filter,to stabilize the electric current,protect the machine.
Special functions
1.The professional worktable,specialize for various materials, can reach processing successively.
2.The intelligent design software is installed, could help to process fast, save materials, make
design files easily.
3.Best RECI laser tube can provide big stable power,can work longtime with stable
cutting and engraving effect.
4.The latest software is compatible with AutoCAD Coreledraw, etc. which support original file
output directly, or definite the command of cutting or engraving by different colors to finish
segment or full image output.
5.Adopt reflection style and HIWIN square guild that let the laser focus and rail moving more
stable , and keep its cutting efficiency and precision.
6.Specially, its distinctive lens barrel makes laser beam smaller and easily change lens and
adjust focus distance.
7.More heavy frame body can let the machine more stable when working,keep high precision.
Model | MC 9060 | Option |
Working area | 900*600 mm | According to demands |
Laser power | 60w/80w/100w/150w/180w for option | |
Laser type | CO2 Sealed laser tube , 10.6μm | |
Cooling type | Water cooling | |
Engraving speed | 0-40000mm/min | |
Cutting speed | 0-60000mm/min | |
Laser output control | 0-100% set by software | |
Min. engraving size | English letter:1.0mm*1.0mm | |
Highest scanning precision | 4000DPI | |
Locating accuracy | ≤+0.01mm | |
Controlling system: | DSP control system | |
Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc | |
Compatible software | CORELDRAW, PHOTOSHOP, AUTOCAD, etc. | |
Drive motor and system | High-precision 3-phase stepper motor and Leadshine Driver | |
Auxiliary equipment | Exhaust fan, air exhaust pipe/water pump/water chiller | |
Power supply | AC110V/220V+10%,50HZ/60HZ | |
Working environment | Temperature:0-45℃,Humidity 5-95%(No condensate water) | |
Option configuration | up&down table, honeycomb worktable, rotary device, red dot position system,auto-focus device |
a.water pump,use water to cool the laser tube
b.exhaust fan,help to clean the dust smoke.
c.air pump,blow air to clean the dust smoke and cool the focus lens.
to maintain the machine and change the lens and mirrors.
point.because people cannot see the laser ,so use the red point to confirm the
site of the laser point.
b.auto together with the up/down system,could adjust the focus distance.
d.chiller,be used to cool the laser tube,has more better effect than water pump,usually,
if the laser power is more than 90W,will equipped with this accessory.
e.up/down system,the worktable could up and down,usually,if the materials is very thick,
could choose this accessory.
f.air compressor,has more bigger power than air pump,if the materials will have lots of
dust smoke when engraving or cutting, could choose this accessory.
g.honey worktable,if need to cut or engrave on soft materials,such as rubber,fabric,
cloth,paper.etc,could choose this worktable.
h.chuck rotary,be used for irregular column,should work together with the up/down system.
i.roller rotary,be used for regular column,also should work together with the up/down system.
j.panel worktable,only be used for engraving materials,such as stone,marble.etc.
1. 24 months for machine,and 10 months for RECI laser tube.
2. Online technical support by e-mail, phone, video or door-to-door service
3. English software, user manual and detailed Videos CD
4. Offer free training in our factory.
Every machine is packed with great care and tough material. It is packed with cling films first and
then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the
top and bottom With this kind machine, all our laser machine can protect well during long trip by
sea or by train. We can transport machine by boat or by training, according to your requirement.
Jinan Maidun CNC Equipment Co., Ltd. is well-known manufacturer of Laser machines in China,
located in Jinan city that is famous for its fountains. We continually devote to developing,
manufacturing and selling of laser engraving machine, laser cutting machine, cloth laser cutting
machine, laser marking machine, Advertising laser engraving machine, woodworking laser machine,
stone laser machine, glass laser machine, etc.
