Jinan Maidun CNC Equipment Co., Ltd.: Shandong, China; Main products: Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Yag Laser Cutting Machine, Fiber Laser Cutting Machine

Home > Products > laser cutting machine > Chinese Factory MC 1610 Dual Heads Wood Acrylic Laser Cutting Machine Price

Chinese Factory MC 1610 Dual Heads Wood Acrylic Laser Cutting Machine Price

FOB Price

US$ 3,700 - 7,500 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Thickness	Depends
Cutting Area	1600*1000mm	Cutting Speed	0-60000mm/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	DSP Control System	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin	Shandong, China	Brand Name	MC
Model Number	MC 1610	Certification	CCC, CE, GS, ISO, SGS, UL, Other, CCC, CE, GS, ISO, SGS, UL, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Chinese Factory MC 1610 Dual heads wood acrylic laser cutting machine price

Related Products


Top quality CO2 150 watts laser cutting machine CNC acrylic laser cutting machine price MC1390	Jinan Manufacturer CO2 plywood acrylic MDF laser cutting machine priceMC1325	Hot sale Rectify deviation Automatic textile laser cutting machine for fabric cloth leather MC 1610

150W 180w co2 metal sheet laser cutting machine for stainless carbon steel wood acrylic MC 1390	3 Years Warranty CO2 laser metal cutting machine CNC stainless steel metal laser cutting machine price MC 1325	3 Years Warranty Auto Feeding garment / cloth / textile / fabric laser cutting machine MC 1630

Technical Parameters

Model	MC 1610
Working Area	1600*1000mm
Laser Power	60W/80W/100W/150W/180W for option
Laser Type	CO2 Sealed glass Laser Tube , 10.6μm
Cooling Type	Water Cooling
Working Speed	0-400mm/s
Transmission system	FULONG belt and Taiwan HIWIN guide rail
Driver System	Lead shine brand high subdivision stepper motor driving
Auxiliary Accessories	Water pump, Air pump, Exhaust Fans with air pump, Tool box
Controlling Software	DSP Control System
Min. Engraving Size	Chinese: 2.0mm2.0mm English Letter:1.0mm1.0mm
Locating Accuracy	≤±0.01mm
Laser Output Control	0-100% Set by Software
Graphic Format Supported	DST. PLT. BMP. DXF. DWG. AI. LAS, etc
Compatible Software	CORELDRAW, PHOTOSHOP, AUTOCAD, etc
Power Supply	AC110V/220V+10%,50HZ/60HZ
Working Environment	Temperature:0-45C,Humidity 5-95%(No Condensate Water)

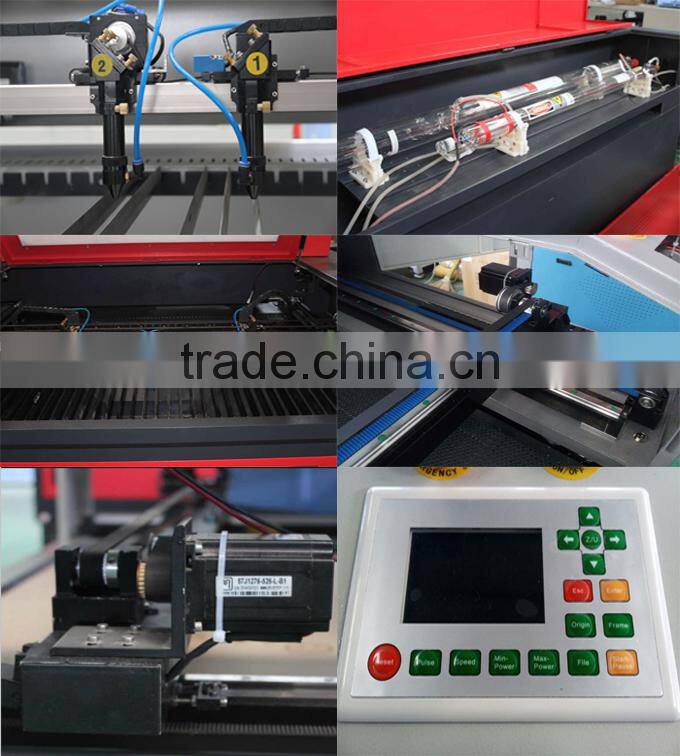

Main Accessories

1. Double Laser heads: Stable moving, promptly adjusting ray path system, and work at same time, imporve efficiency. Blue tube can blow gas to cooling the materials and focus lens.

2. RECI laser tube: More stable laser beam and long life time of laser tube is about 8000-10000 hours under the good environment, could provide stable laser.

3. Blade platform: After our special handle with high durable, won’t be rusted or deformed even after many years, generally used for cutting hard materials, such as Acrylic, Wood, MDF, Plywood, Die board, etc.

4. Transmission system: Taiwan HIWIN guide rail and FULONG brand high toughness belt with very long service life and highest precision.

6. Driver system: Lead shine brand high subdivision stepper motor, make sure the speed and precision work.

7. Control system: RD updated DSP with off-computer control system.

Auxiliary Accessory

1. Water pump: Providing power to circulate water, help to cool the temperature of laser tube, prevent the laser tube from broke up.

2. Air pump: Blowing the laser lens during working to make the laser lens away from dirty environment caused by smoke and dust.

3. Exhaust Fans with air pipe: For exhausting the smoke and some small pieces during the machine working, clean dirty air, with low noise.

4. Tool box: Help to install and maintain machine.

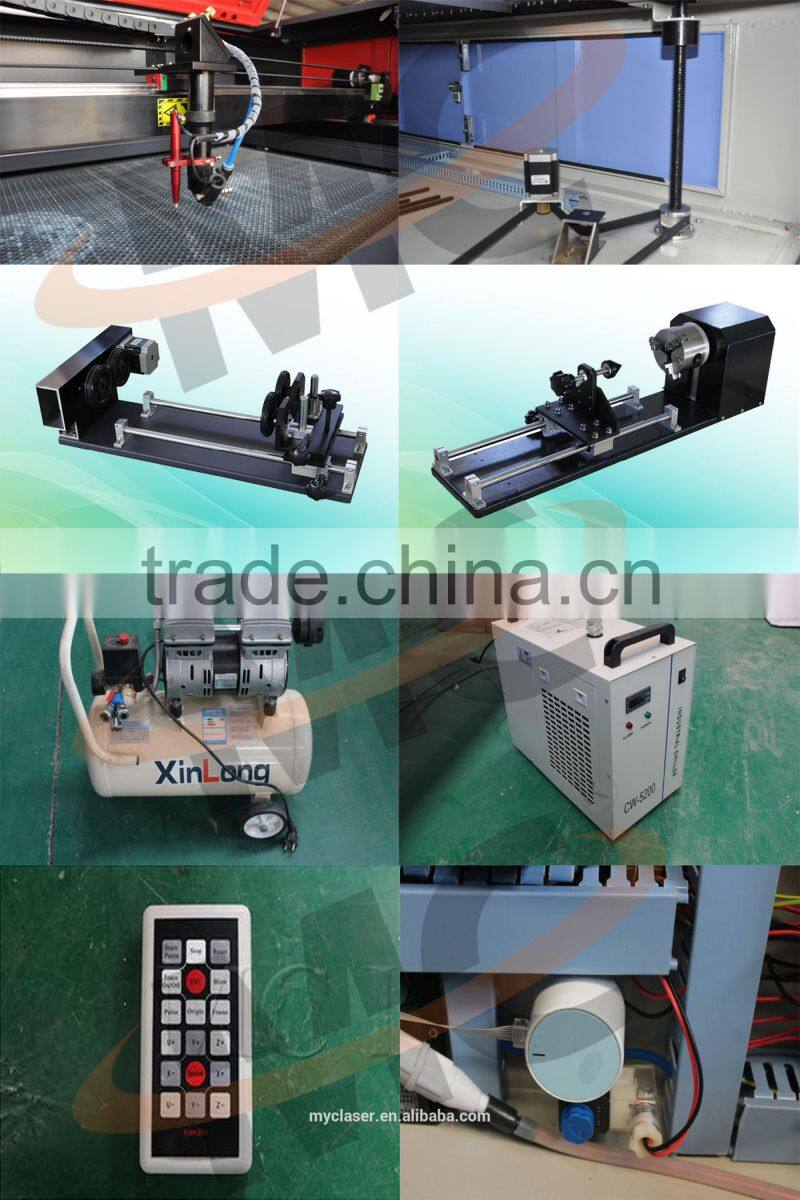

Optional Accessories

1. Auto-focusing system: Work with electrical the up & down working table, could intelligent adjust the focus distance between the head and materials.

2. Electrical Up-Down table: It could intelligently adjust up and down in accordance with different thickness of materials, ensuring the best focus height and perfect processing effect.

3. Rotary attachment: when need to engrave on the regular or irregular round materials, need to use Roller rotary or Chuck rotary, this accessory must work together with the up & down system.

4. Air compressor: Environment Protection, Oil-free, Low noise, Strong high power for cutting Acrylic, Wood, MDF, Leather, Cloth, Card board, Rubber, preventing fire and protecting cutting effect.

5. Double inlet and outlet Chiller: Can control the temperature automatically. It will alarm if there is a shortage of water thus ensure the continuous work of the laser tube, could cooling 2 pcs laser tube at same time.

6. WIFI receiver: could operate the machine through this panel directly.

Applicable Industry

1. Stone Industry(engrave): marble, granite, white marble etc.

2. Art crafts Industry: wood, bamboo, elephant's tusk, bone, leather, sea shell etc.

3. Advertisement Industry: double color board, acrylic engraving and cutting, label engraving, crystal etc.

4. Model Industry: sand table construction model, plane model, etc.

5. Packing Industry: rubber engraving, plastic, doubling plate, die board cutting etc.

6. Leather and cloth processing Industry: compound leather, man-made leather, fabric, fur, toy, etc.

7. Other industry: glass, crystal engraving, paper/greeting card cutting, etc.

Packing and Shipping

Machine will be clean and fixed on the wood board, every auxiliary parts will be packed by film, laser tube will set in one independent box , and fixed by sponge.Then,machine will be surrounded by the film and air rubber film,after that, will packed by the standard export plywood.Finally, will surround by the metal line again. The machine will be protected well.

1. The total machine guarantee for 2 years, Laser tube for 10 months, change the free parts within warranty.

2. Supply Full English Manual and Installing video/CD Disk.

3. Providing professional service to customers, technical suport will be solved by Skype, Whats app, E-mail, Phone, Video, etc

4. If need, welcome to our factory for detailed free training.
