1. Laser head: Stable moving, and promptly adjusting ray path system.

Blue tube can blow gas to cooling the materials and focus lens.

2. RECI laser tube: More stable laser beam and long life time of laser tube is about 8000-10000 hours under the good environment, could provide stable laser.

3. Blade platform: After our special handle with high durable, won’t be rusted or deformed even after many years, generally used for cutting hard materials, such as Acrylic, Wood, MDF, Plywood, Die board, etc.

4. Focus Lens and Reflect Mirrors: Original imported from Singapore, very high sensitivity, high temperature resistance, no need to be changed often with long life time, reduce the resuming cost.

5. Transmission system: Taiwan HIWIN guide rail and FULONG brand high toughness belt with very long service life and highest precision.

6. Driver system: Lead shine brand high subdivision stepper motor, make sure the speed and precision work.

7. Control system: RD updated DSP with off-computer control system.

1. Water pump: Providing power to circulate water, help to cool the temperature of laser tube, prevent the laser tube from broke up.

2. Air pump: Blowing the laser lens during working to make the laser lens away from dirty environment caused by smoke and dust.

3. Exhaust Fans with air pipe: For exhausting the smoke and some small pieces during the machine working, clean dirty air, with low noise.

4. Tool box: Help to install and maintain machine.

1. Auto-focusing: Work with electrical the up & down working table, could intelligent adjust the focus distance between the head and materials.

2. Electrical Up-Down table: It could intelligently adjust up and down in accordance with different thickness of materials, ensuring the best focus height and perfect processing effect.

3. Rotary attachment: when need to engrave on the regular or irregular round materials, need to use Roller rotary or Chuck rotary, this accessory must work together with the up & down system.

4. Cooling system:Can control the temperature automatically. It will alarm if there is a shortage of water thus ensure the continuous work of the laser tube.

5. Air compressor:Environment Protection, Oil-free, Low noise, Strong high power for cutting Acrylic, Wood, MDF, Leather, Cloth, Card board, Rubber, preventing fire and protecting cutting effect.

6. WIFI receiver: could operate the machine through this panel directly.

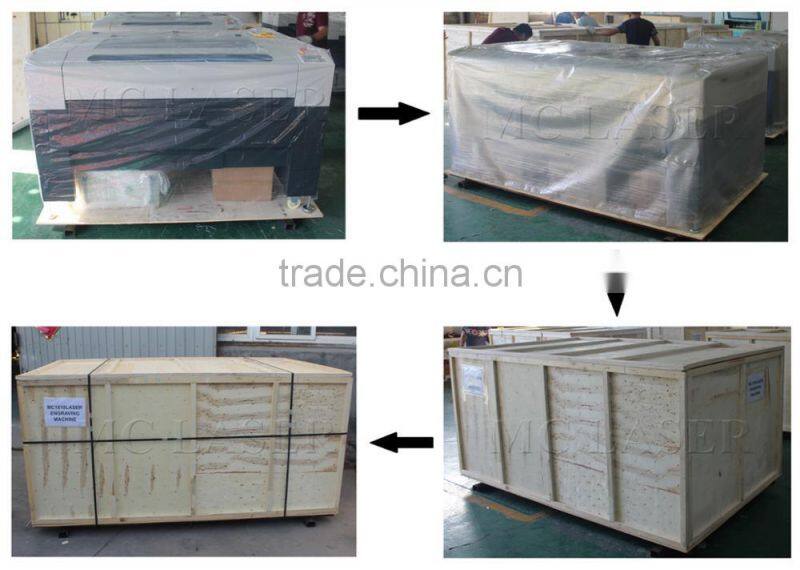

Machine will be clean and fixed on the wood board, every auxiliary parts will be packed by film, laser tube will set in one independent box , and fixed by sponge.Then,machine will be surrounded by the film and air rubber film,after that, will packed by the standard export plywood.Finally, will surround by the metal line again. The machine will be protected well.

We offer

•Sea Transportation

•Land Transportation

•Air Transportation

1. The total machine guarantee for 2 years, Laser tube for 10 months, change the free parts within warranty.

2. Supply Full English manual and Installing video.

3. Providing professional service to customers, technical help will be solved by Skype, Whats app, E-mail, Phone, Video, etc

4. If need, customer could come to our factory for detailed free training.
