Auto feeding laser cutting polyester / nylon / fabric / leather / vinly machine MC 1630
- 500 Set / Sets per Month
- Any port in China (main Qingdao port )
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Leather, MDF, Paper, Rubber, Other, Acrylic, Leather, MDF, Paper, Rubber, cloth |
Cutting Thickness: | due to materials | Cutting Area: | 1600*3000mm | Cutting Speed: | 0-40000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | laser cut |
Graphic Format Supported: | AI, BMP, DST, DXF, DXP, PLT, Other, AI, BMP, DST, DXF, DXP, PLT, software suppoted : AutoCAD CorelDRAW | Place of Origin: | Shandong, China | Brand Name: | MC |
Model Number: | 1630 | Certification: | CCC, CE, ISO, Other, CCC, CE, ISO, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

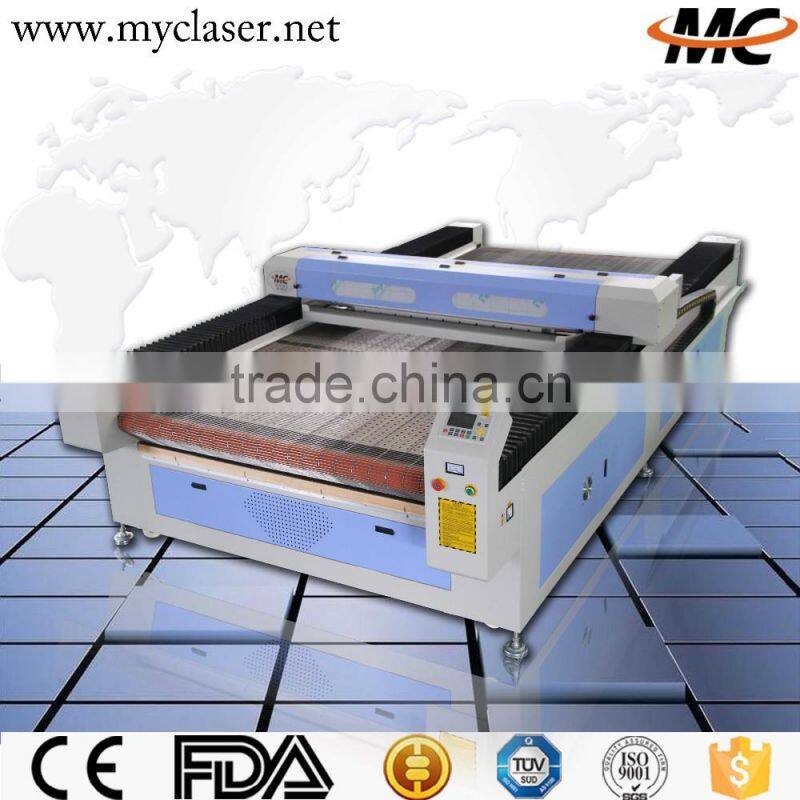

MC 1630 auto feeding laser cutting polyester / nylon / fabric / leather / vinly machine
1.Technical parameter of Laser engraving fabric Machine
Model | MC1630 | MC1830 |
Working Area | 1600*3000mm | 1800mm*3000mm |
Laser Power | 150w/180W | |
Laser Type | CO2 Sealed Laser Tube , 10.6μm | |
Cooling Type | Water Cooling | |
Engraving Speed | 0-60000mm/min | |
Cutting Speed | 0-40000mm/min | |
Laser Output Control | 0-100% set by software | |
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | |
Highest Scanning Precision | 4000DPI | |
Locating Accuracy | ≤+0.01mm | |
Controlling Software | DSP Control System | |
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | |
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | |
Color Separation | Yes | |
Drive System | Mix servo motor and driver | |
Auxiliary Equipment | Exhaust Fan, Air Exhaust Pipe, | |
Power Supply | AC110V/220V+10%,50HZ/60HZ | |
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | |
Weight | 1200KGS |

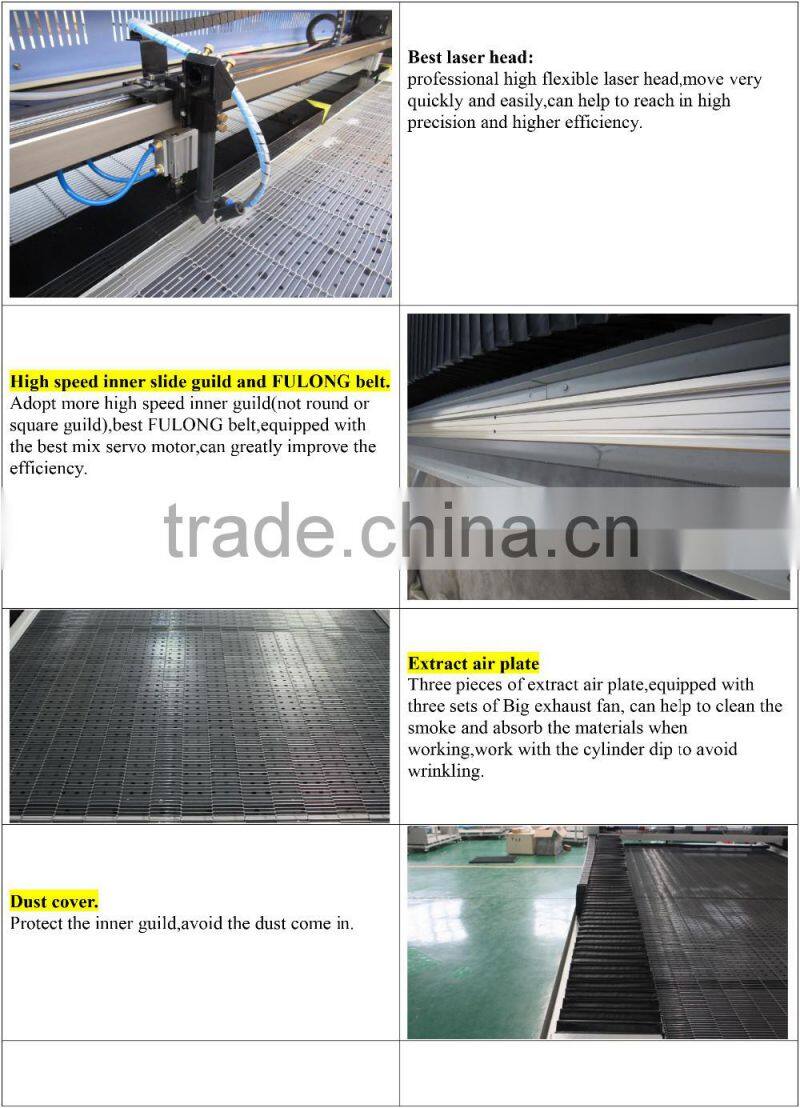

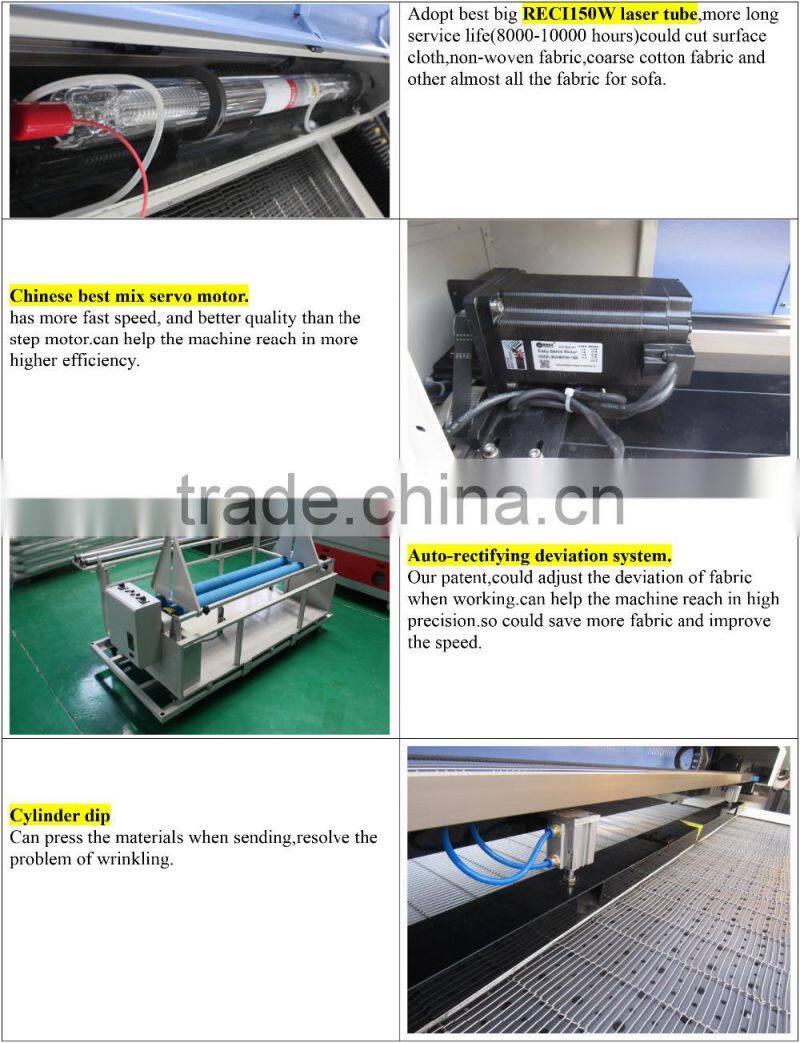

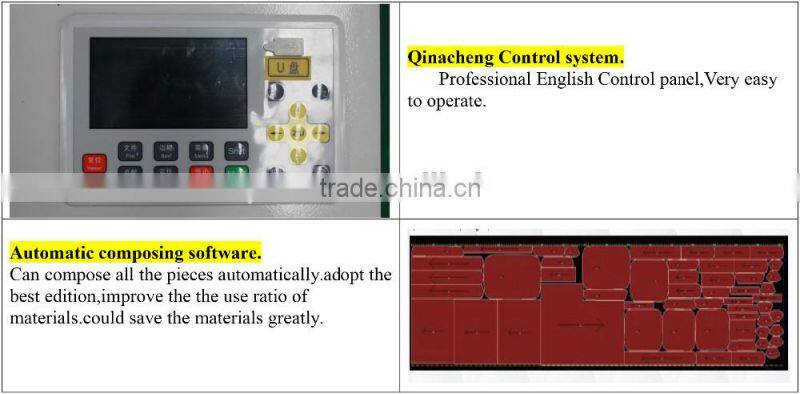

2.Detail features of Auto Feeding Laser engraving fabric Machine
3.Auxiliary accessories of Auto Feeding Laser engraving fabric Machine

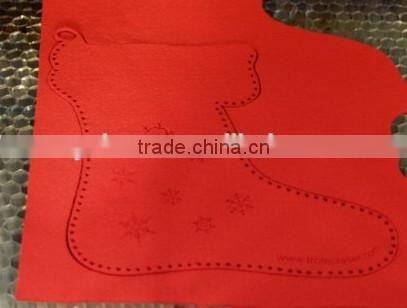

8.Samples of Auto Feeding Fabric Laser engraving fabric Machine
9.About our company
Jinan Maidun CNC Equipment Co., Ltd., since 2002, specializing in producing CNC laser machinery, and has rich experience!
Maidun CNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises.
Maidun CNC provide quality and efficient CNC machines worldwide. With strength solid financial and university staff,
"Brand Maichuang"(MC) success in woodworking engraving machine, advertising engraving machine,
stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment,
especially the development and expansion of production facilities occupy China's forefront.
10.best keep high quality system
11.Warranty and after-service
1.Guarantee for the whole machine: 3 years ,change the parts free within warranty.
2.We can arrange technical personnel to your place to do on-site training.
3.Providing professional service to customers, any call for technical help will be solved in 24 hours
4.The total machine guarantee for 3 year. RECI Laser tube and lens for 8months.
5.We supply life-long free service in technical upgrading.
12.Packing and transportation
1.Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly.Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
We offer
•Sea Transportation
•Land Transportation
•Air Transportation
13.Contact us
Sincerely welcome to your inquiry and look forward to cooperation with you.
We believe our high-quality yet best-price laser machines will meet your need and satisfy you.
