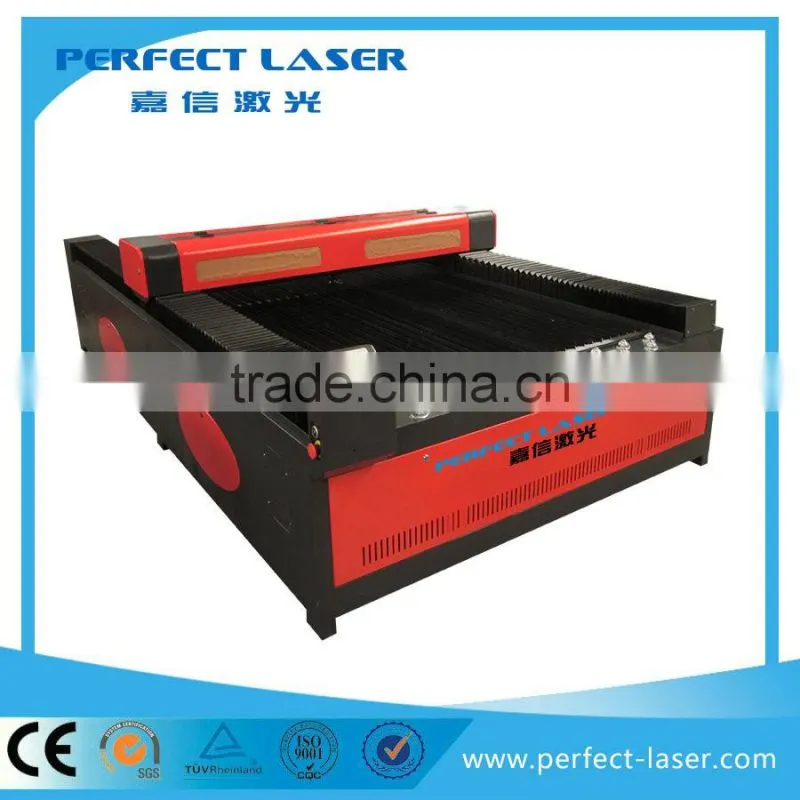

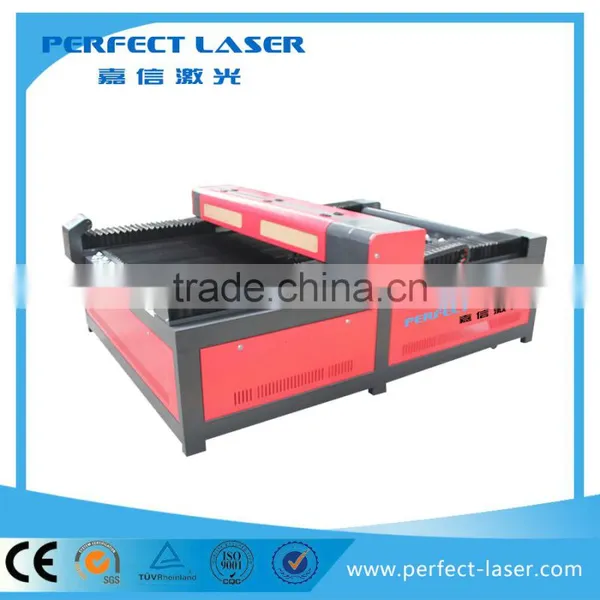

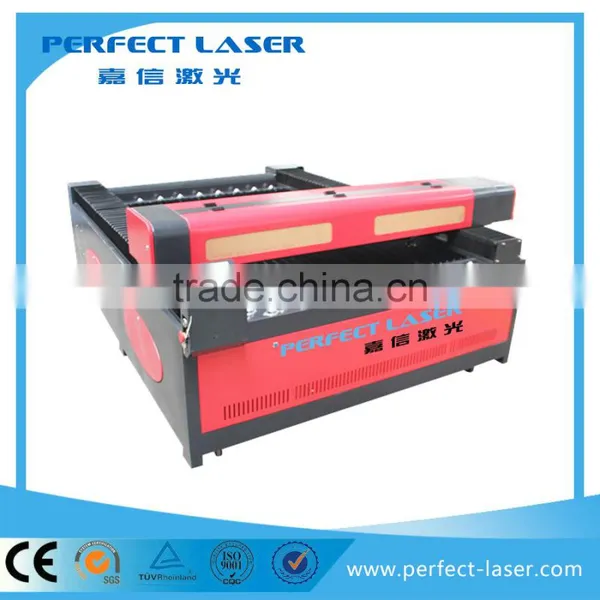

Perfect Laser - High Quality Laser Engraving/Cutting machine PEDK-130250 with CE/ISO
Perfect Laser
World Famous Brand
Germany TUV & CE Certified
Free Technical Supporting Life-Long
24 Hours Online Service
n Applicable Area and Material
Acrylic, Wood, Fabric, Cloth, Leather, Rubber Plate, PVC Board, Paper and other kinds of nonmetal materials with complex shapes.

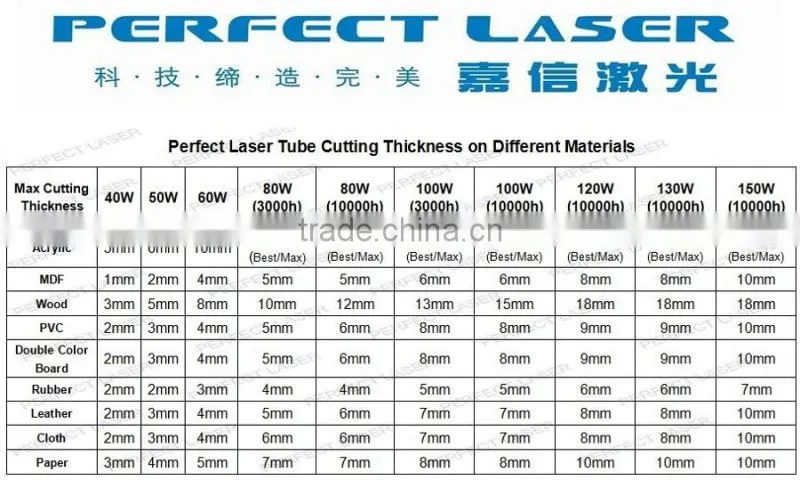

n Cutting Thickness on Different Material

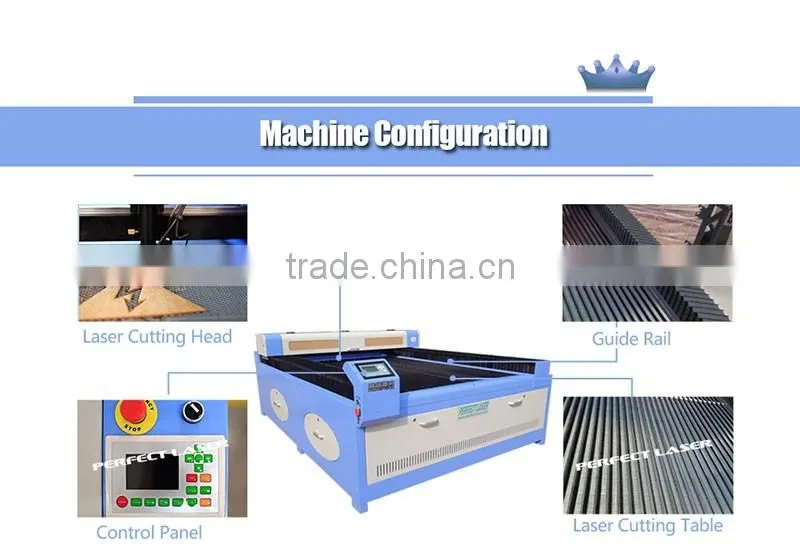

n Main Features
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointerrealizes the exact position without laser.
10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
n Technical Data
Model |
PEDK-130250 |
Working Area |
1300x2500mm |
Laser Power |
60W/80W/100W/120W/150W |
Laser Type |
Hermetic and Detached Co2 Laser Tube |
Engraving Speed |
0-60000mm/s |
Cutting Speed |
0-10000mm/s |
Cutting Thickness |
0-25mm Acrylic (Others Determined by Materials) |
Repeat Location Accuracy |
+/-0.0125mm |
Driving Mode: |
DC0.8A 24V Stepper Motor |
Position System: |
Red Dot |
Interface: |
USB |
Voltage |
AC220V/50HZ or 110V/60HZ or Depend on Customer |
Machine Power |
900W |
Controlling System |
CNC Professional Control System |
Support Graphics Mode |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
Cooling Mode |
Circulation Water Cooling and Protection System |
Auxiliary Devices |
Exhaust Fan and Exhaust Pipe |
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
Power Control Mode |
Laser Energy Combining Movement Control System |
Software |
Professional Laser Engraving & Cutting Software(Reader Software) |
Operating Temperature |
0-45C |
Operating Humidity: |
5-95% |
Packing: |
Standard Wooden Box |
Guarantee Time: |
12 Months, Laser Tube 3 Months |
Operation: |
Detailed Video to Teach Customer How to Operate the Machine |
Machine Size |
3580mm×2030mm×1130mm |
Process Flow Diagram:
Body Making - Welding - Printing - Hardware Installation - Hardware Testing - Software Installation - Software Testing - 48 hours Running - QC Final Testing - Packing - Delivery
n Terms and Conditions
* 12 Months Guarantee
* 5-7 Days Lead Time
* VCD Training , Easy Installation
* 12 Hours Response
* TT/Western Union / Paypal / Ali Trade Assurance Payment
* Sea Shipping
n FAQ:
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
