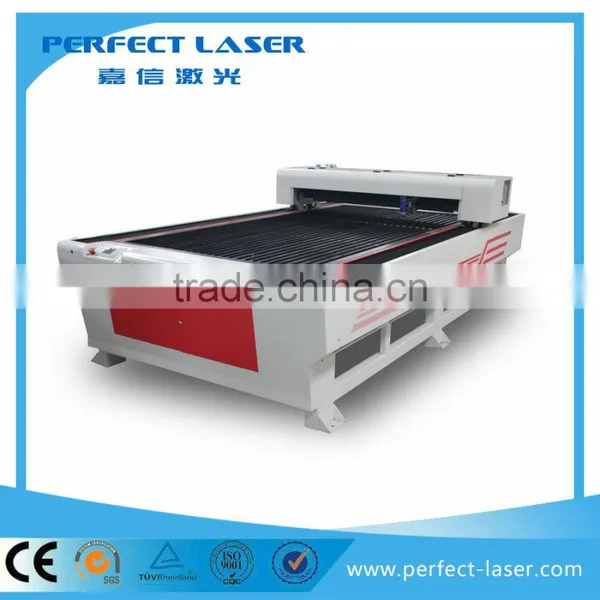

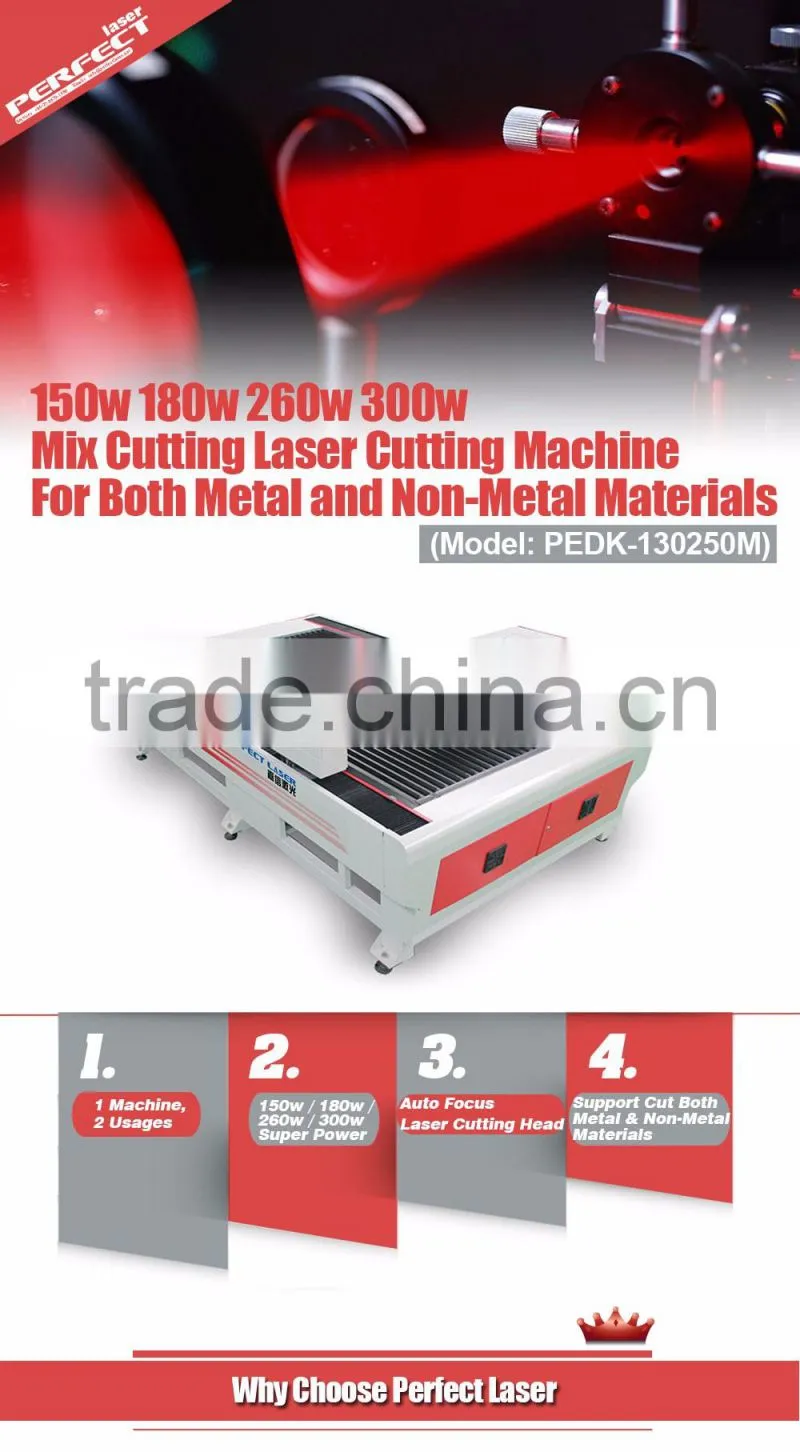

2016 new PEDK-130250M 130W Mixed Laser Cutting Machine with CE
Model: PEDK-4030/6040/9060/13090/130180/160100/130250/160260
Laser power: 40W / 60W / 80W / 90W / 100W / 120W / 130W / 150W / 180W
Please check our company introduction video at https://img13.fr-trading.com/
Description of 130w Mixed Laser Cutting Machine
with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Application Fields of 130w Mixed Laser Cutting Machine
Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

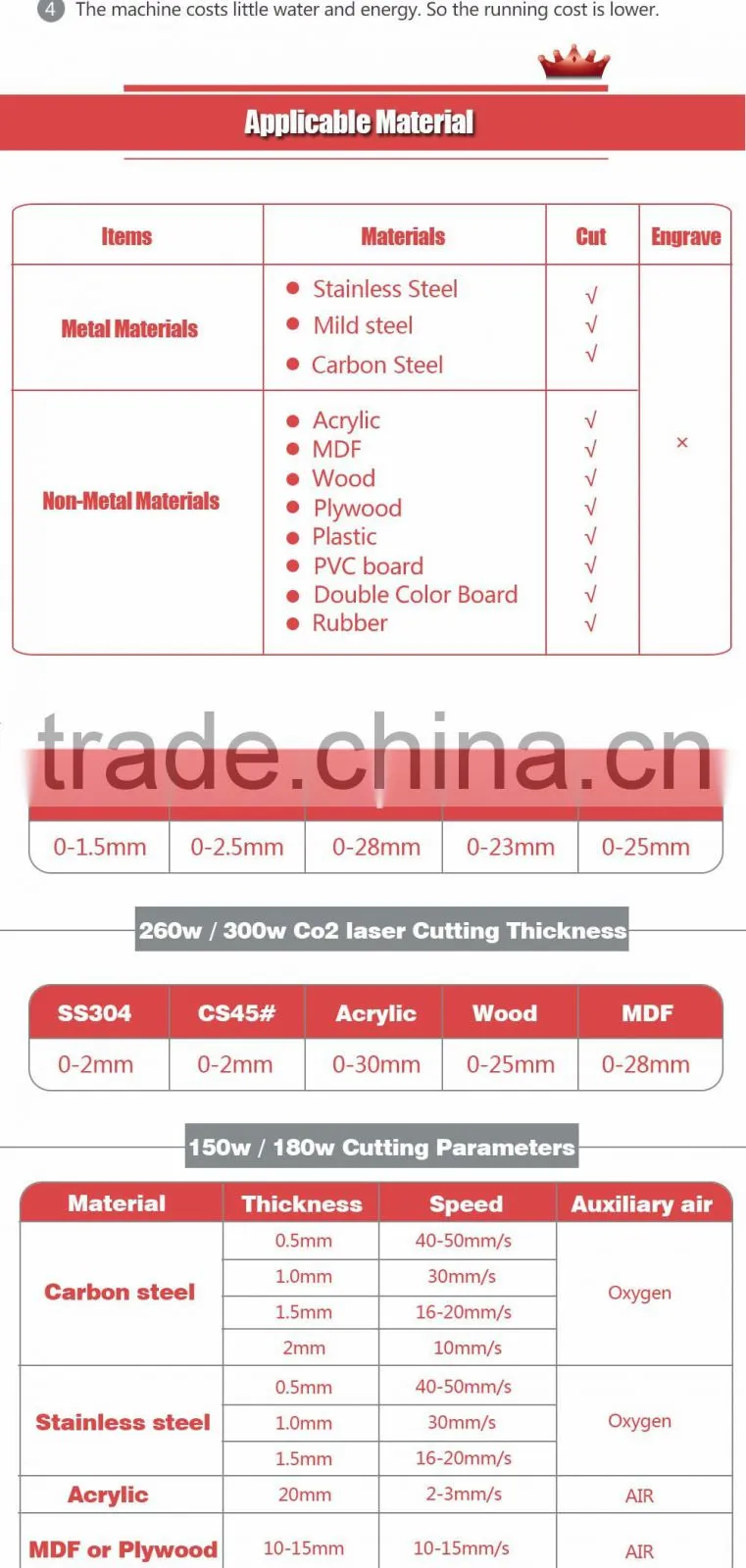

Available Materials of 130w Mixed Laser Cutting Machine
Advertisement material |
Acrylic engraving cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, Plexiglas engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting. |
Wood material: |
Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving. |
Garment material: |
Leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, Shoes engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting. |
Special Features of 130w Mixed Laser Cutting Machine

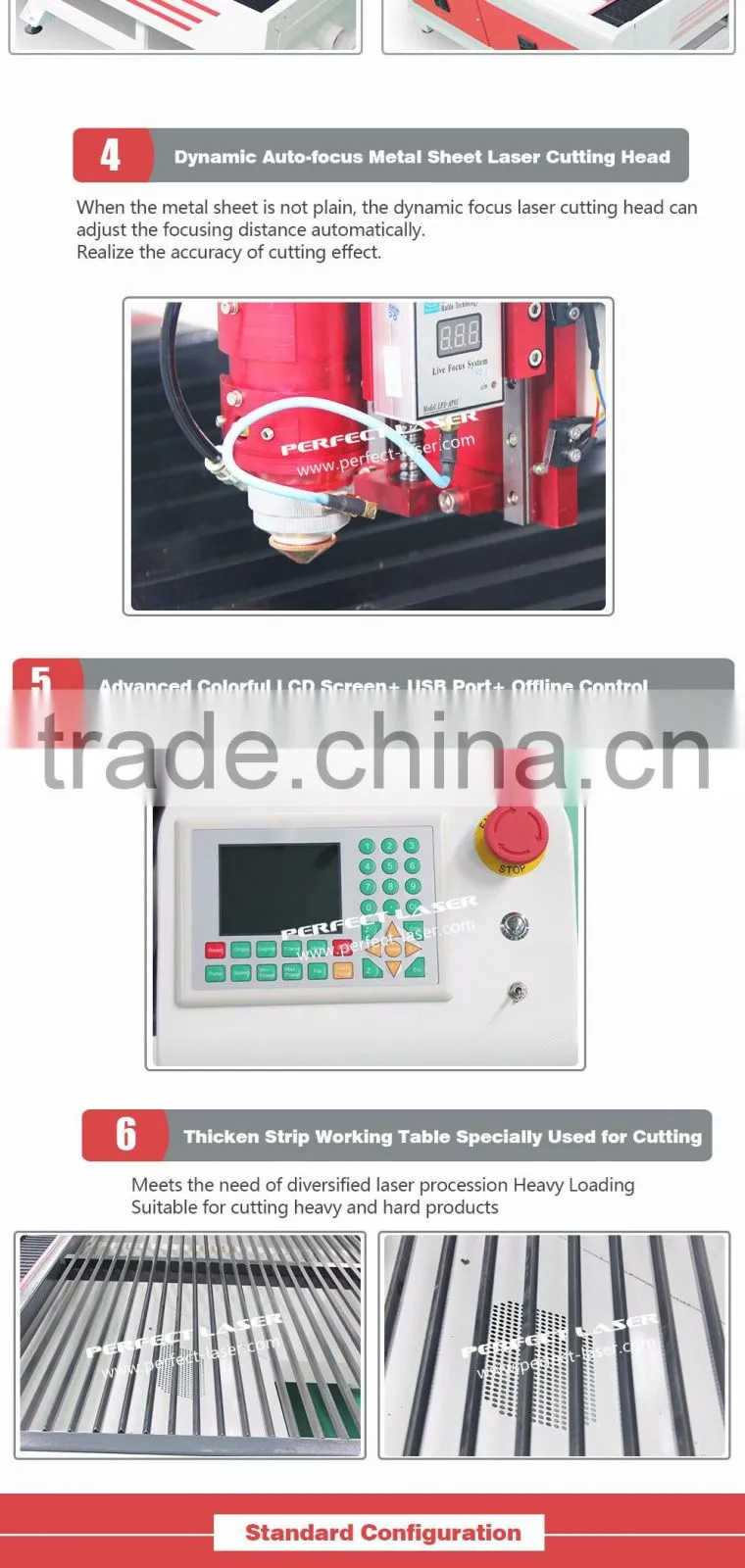

1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

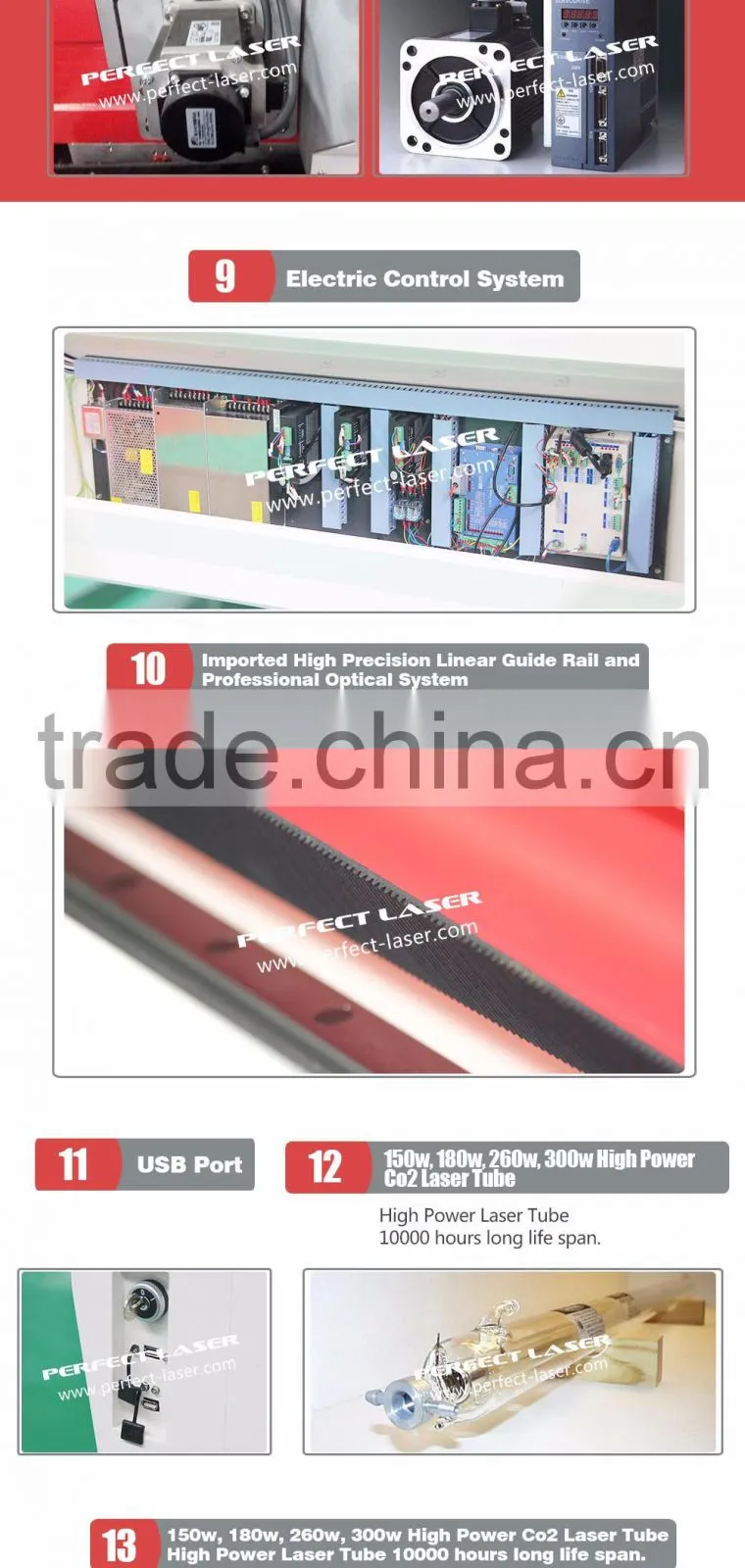

3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

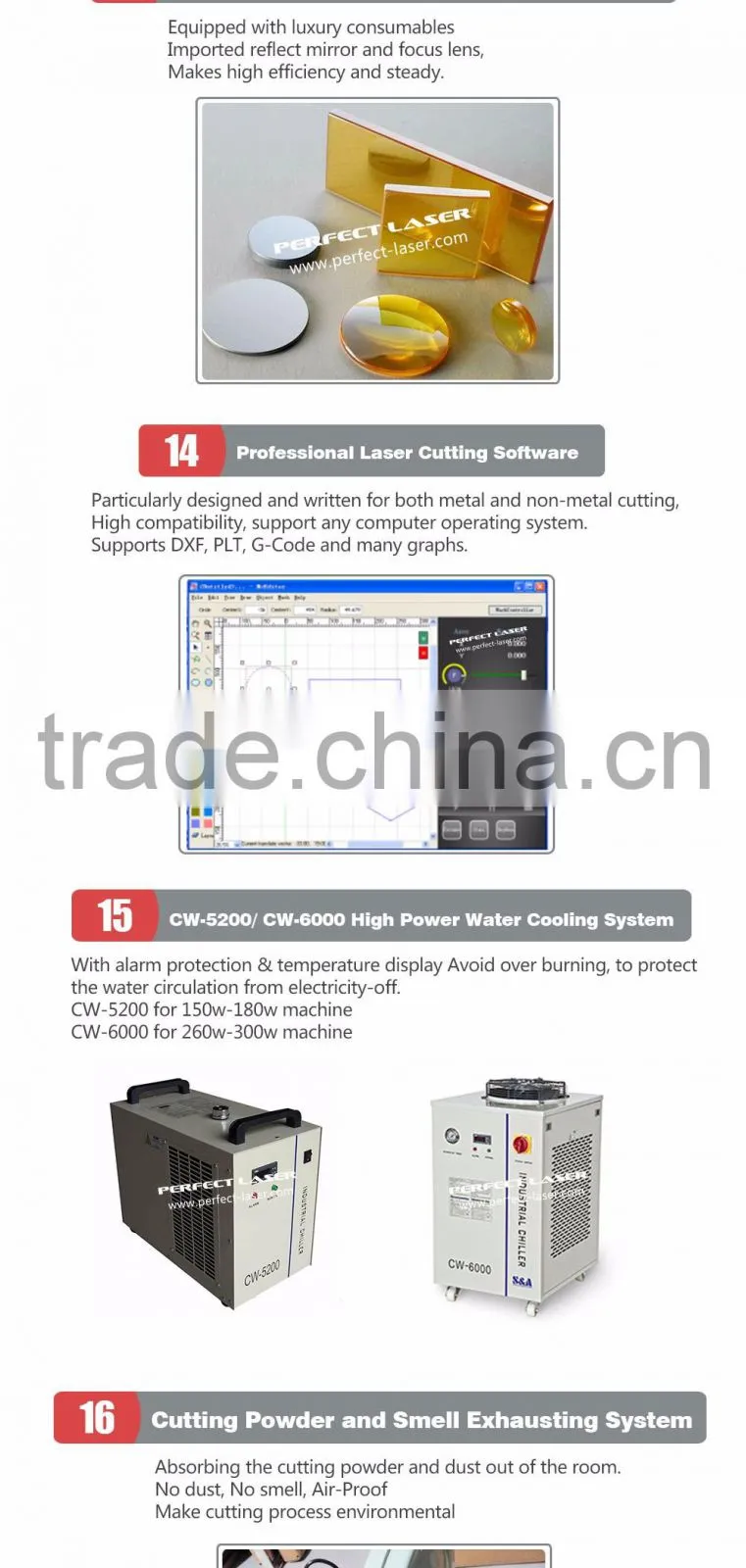

6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

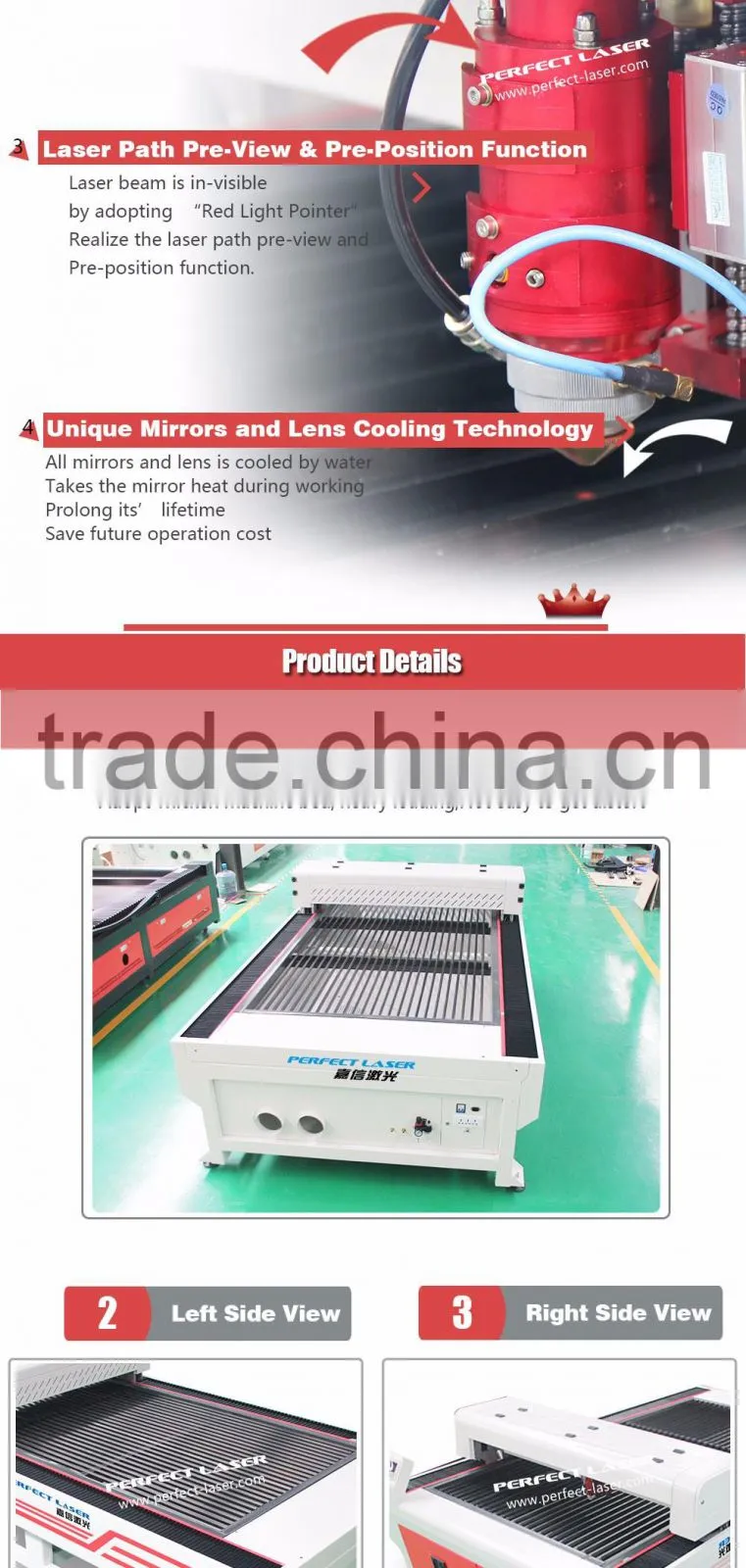

9) Red Light Pointerrealizes the exact position without laser.
10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
11) Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
12) Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
13) Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
14) Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

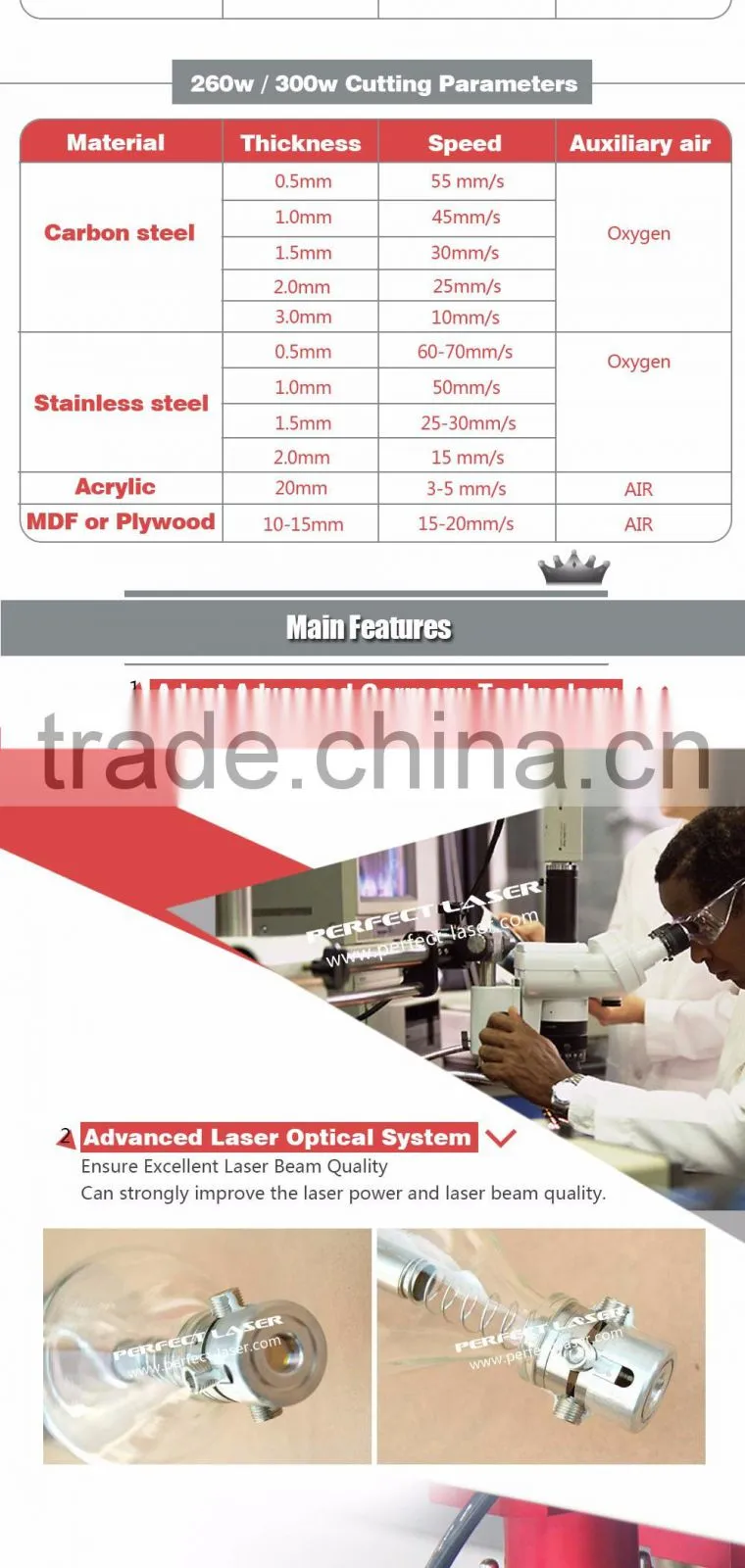

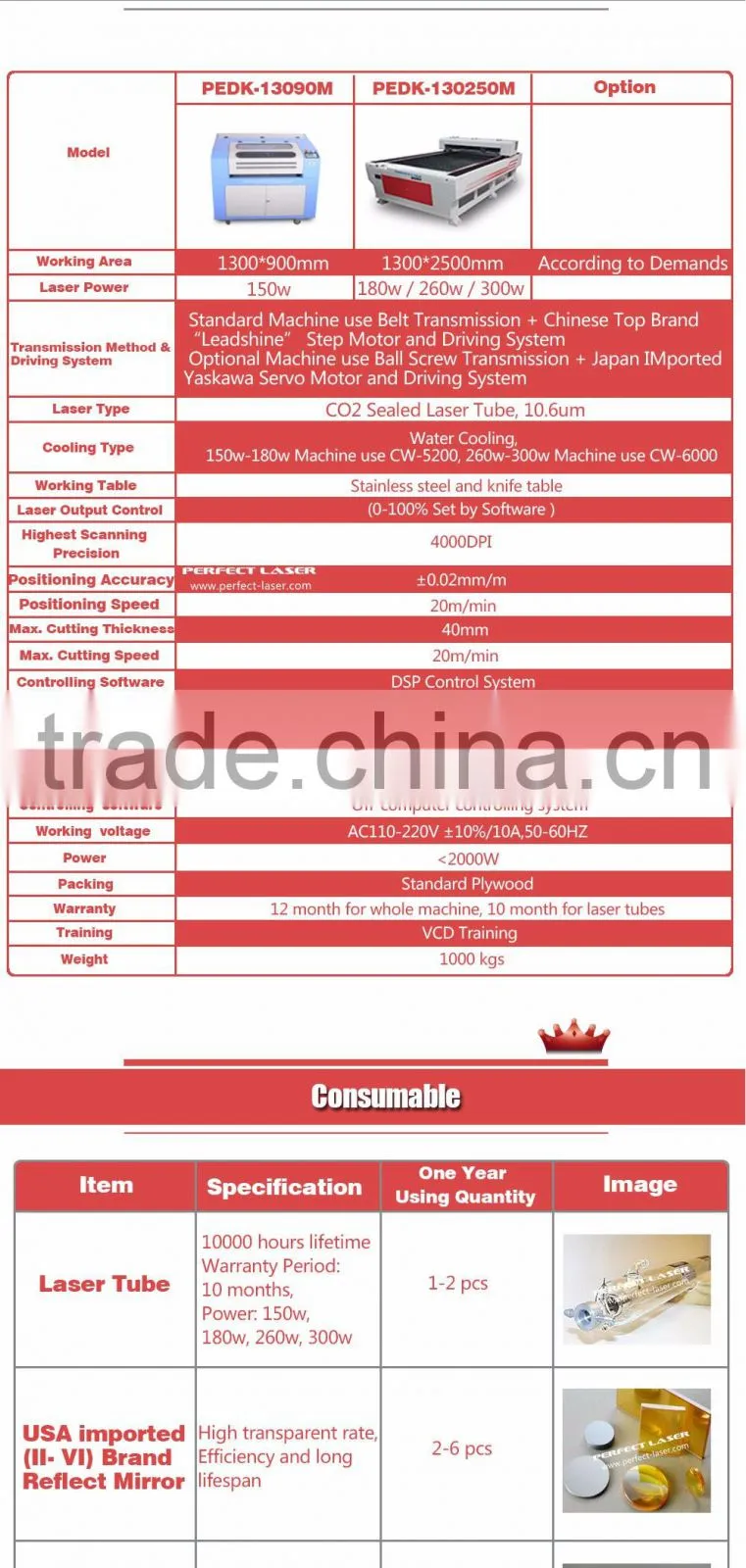

Technical Parameters of 130w Mixed Laser Cutting Machine
Model |
PEDK-13090M |
PEDK-130250M |
Working Area |
1300*900mm |
1300*2500mm |
Laser Power |
150w |
180w / 260w / 300w |
Transmission Method & Driving System |

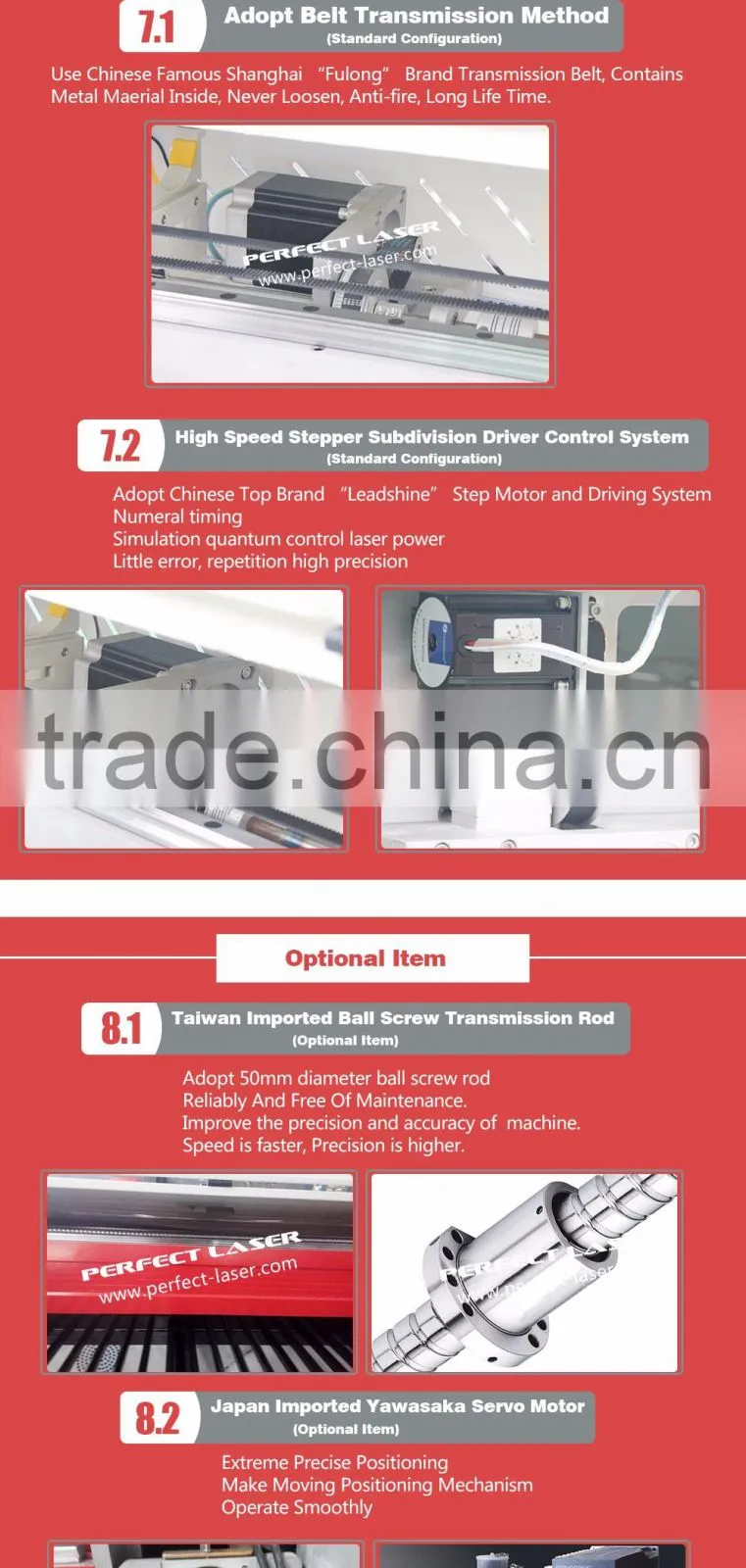

1. Standard Machine use Belt Transmission + Chinese Top Brand “Leadshine” Step Motor and Driving System 2.Optional Machine use Ball Screw Transmission + Japan IMported Yaskawa Servo Motor and Driving System |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6um |
|
Cooling Type |
Water Cooling, 150w-180w Machine use CW-5000 260w-300w Machine use CW-6000 |
|
Working Table |
Stainless steel and knife table |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Smallest Character Engraving |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Positioning Accuracy |
±0.02mm/m |
|
Positioning Speed |
20m/min |
|
Max. Cutting Thickness |
40mm |
|
Max. Cutting Speed |
20m/min |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
BMP, PLT, DST, DXF, and AI, etc |
|
Compatible Software |
CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Controlling software |
Off-computer controlling system |
|
Working voltage |
AC110-220V ±10%/10A,50-60HZ |
|
Power |
<2000W |
|

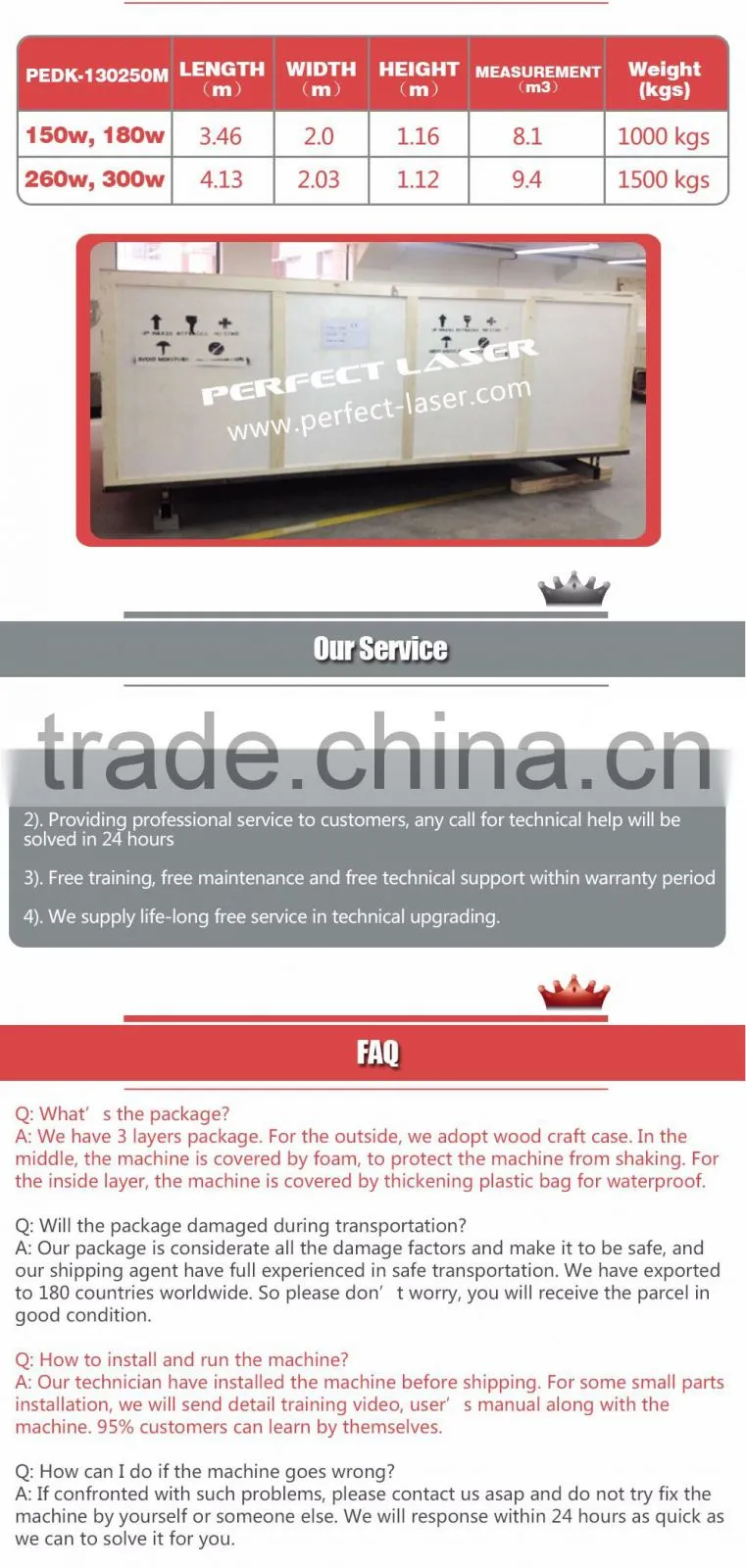

Packing |
Standard Plywood |
|
Warranty |
12 month for whole machine, 10 month for laser tubes |
|
Training |
VCD Training |
|
Weight |
1000 kgs |
|
We have different models, such as PEDK-9060, PEDK-13090, PEDK-160100, PEDK-130250 and so on. To choose best machine for you, please kindly check and tell us:
1>the exact material you want to work with? (acrylic, wood, rubber, marble, textile, fabric, leather, paper, etc)
2>The working size of the machine you demand? (max dimension of material, width*length, 600*400 mm-PEDK-6040 model, 900*600 mm-PEDK-9060 model, 1200*900 mm-PEDK-13090 model,...)
3>For the laser power, we need know the cutting depth you demand? (5 mm thick wood, 15 mm thick acrylic, etc, this will decide the laser power.)
4>Do you want to engrave on round surface too?
5>The destination sea port you desire? Then we can check the shipping cost for you.
