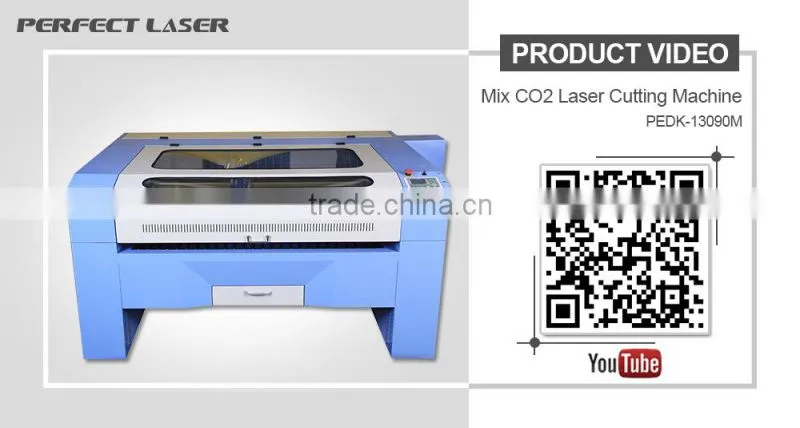

20 years factory non metal and metal laser cutting machine price
Skype:perfectlaser005 Whatsapp/Mobile: 86 0136 5988 2898 Email: sales05 at
Company Introduce video: https://youtu.be/Ojo3XnAzRdM
Working video for PEDK-13090: https://youtu.be/zAT8XK3hZeU
Perfect Laser are 20 years laser industrial machine manufacturer and exporter
Certified with CE & ISO & TUV.
Free Technical Supporting Life-Long
24 Hours Online Service
Exported to more than 180 countries.
Received many good feedback from our clients.

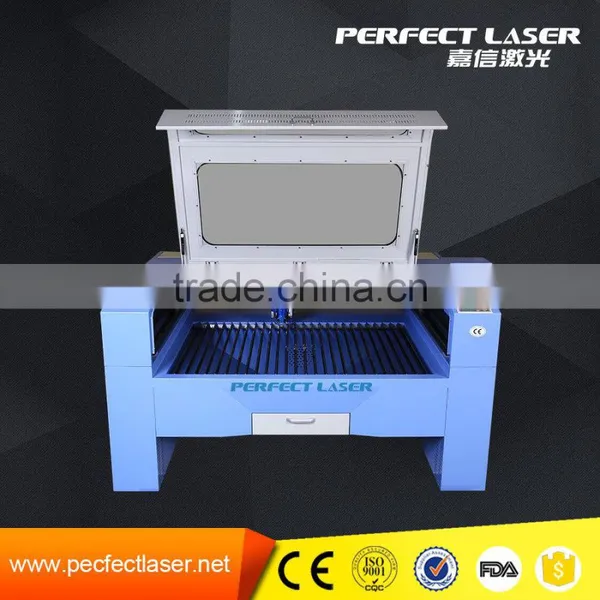

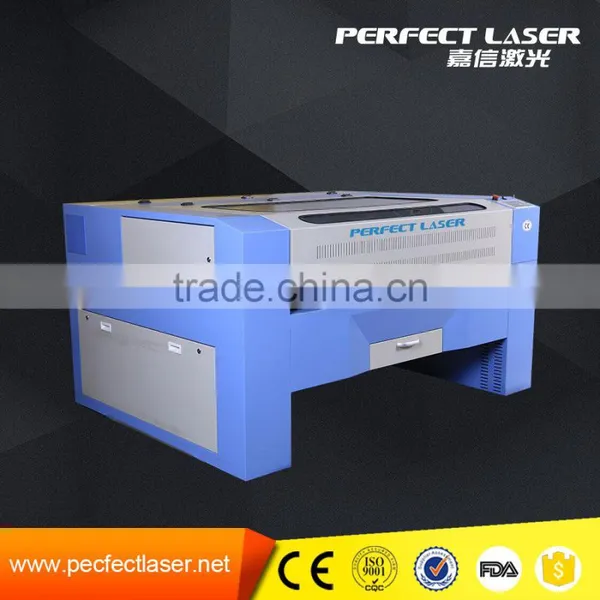

Introduction
The laser cutting machine for metal's cutting thickness can reach 1-2mm stainless steel, 1-3mm carbon steel and mild steel, 20-30mm acrylic and plastic, 10-20mm wood, 20-30mm MDF.
The laser cutting machine for metal is really a wonderful choice for user have demand to cut metal and non-metal material together. One machine can fulfill all your demand. No need to buy one Co2 laser engraving machine plus one fiber laser cutting machine. The laser cutting machine for metal really is a high efficiency machine. It also called mix laser cutting,laser cutting machine for metal,arcylic cutting,stainless steel cutting,cutting acrylic sheets,mixed laser cutting.

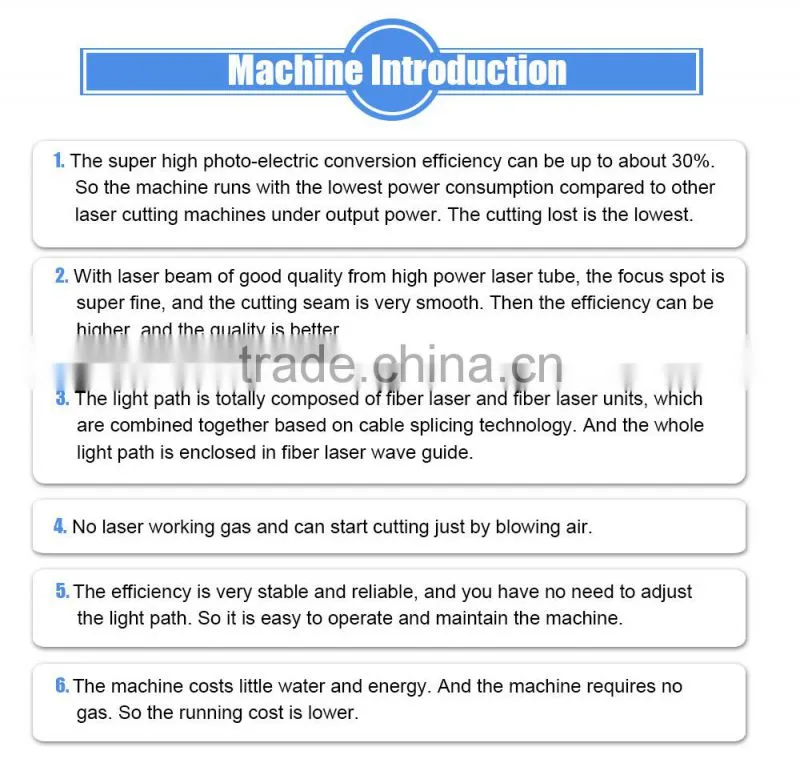

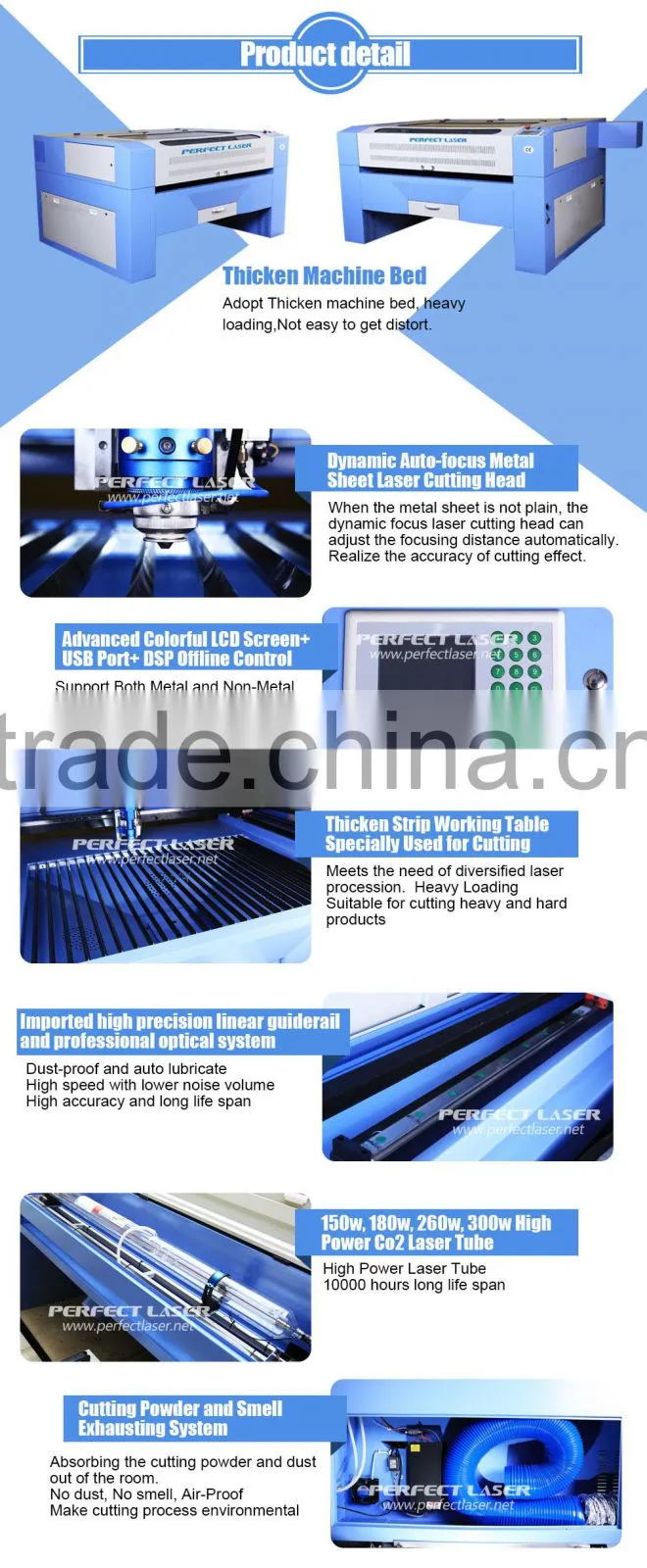

1. The super high photo-electric conversion efficiency can be up to about 30%. So the laser cutting machine for metal runs with the lowest power consumption compared to other laser cutting machines under output power. The cutting lost is the lowest.
2. With laser beam of good quality from high power laser tube, the focus spot is super fine, and the cutting seam is very smooth. Then the efficiency can be higher, and the quality is better.
3. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser wave guide.
4. No laser working gas and can start cutting just by blowing air.
5. The efficiency is very stable and reliable, and you have no need to adjust the light path. So it is easy to operate and maintain the machine.
6. The laser cutting machine for metal costs little water and energy. And the machine requires no gas. So the running cost is lower.

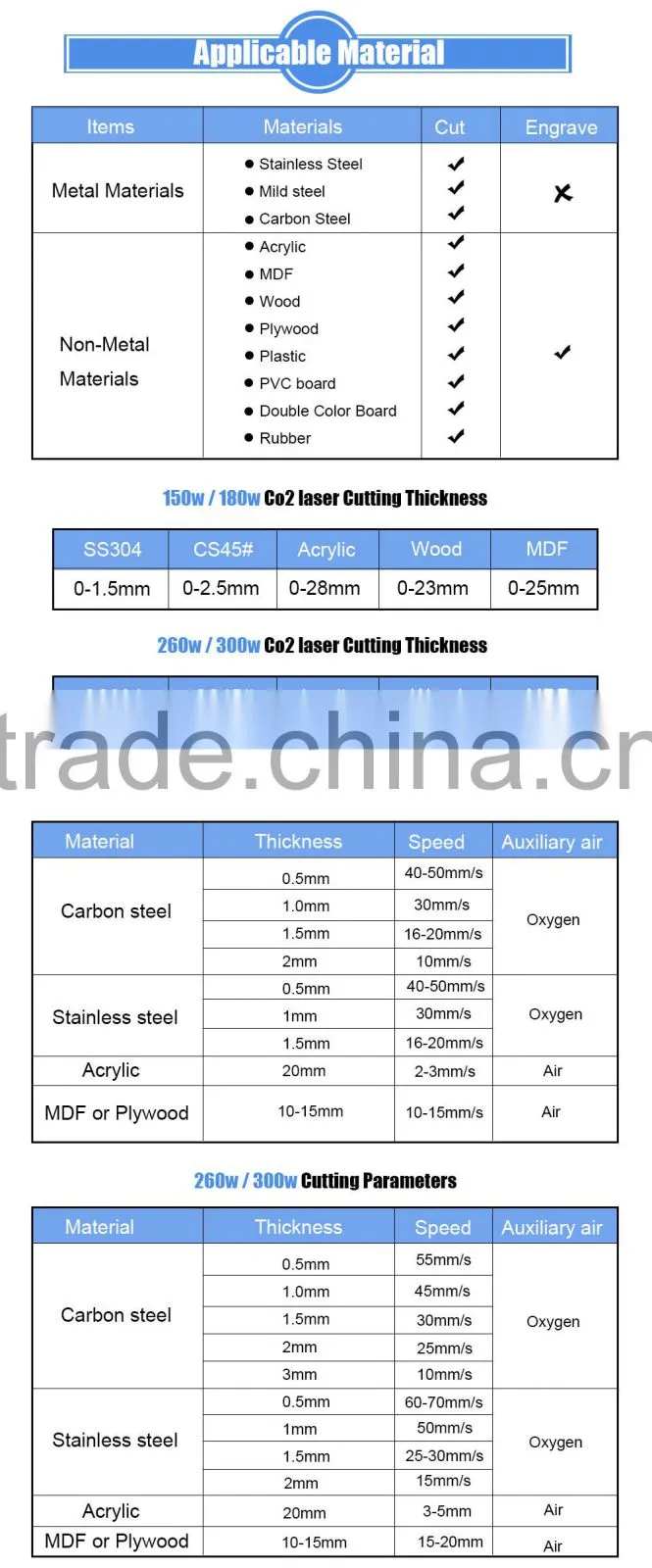

Items |
Materials |
Cut |
Engrave |
Metal Materials |
Stainless Steel Mild steel Carbon Steel |
√ √ √ |
√ |
Non-Metal Materials |
Acrylic MDF Wood Plywood Plastic PVC board Double Color Board Rubber |
√ √ √ √ √ √ √ √ |

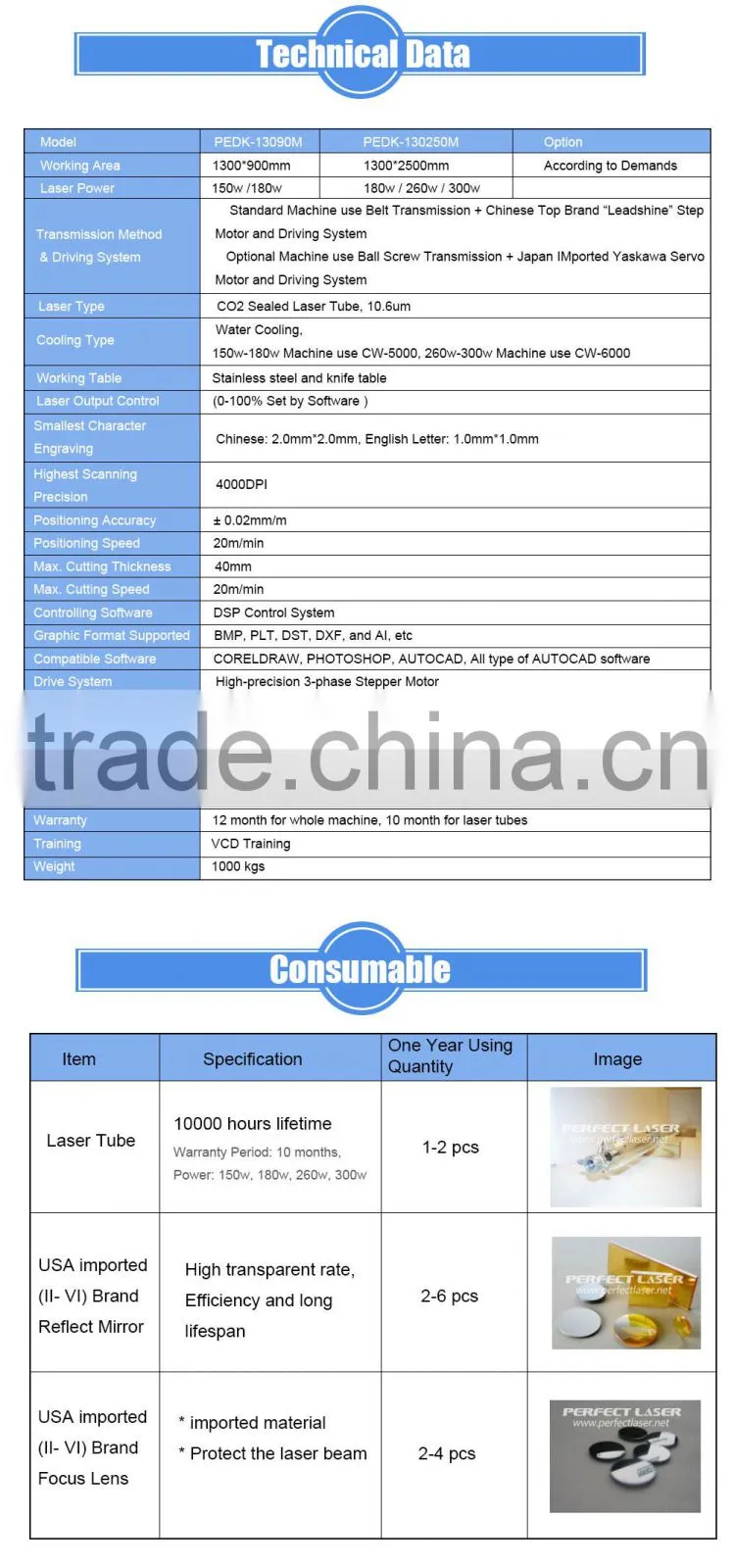

Model |

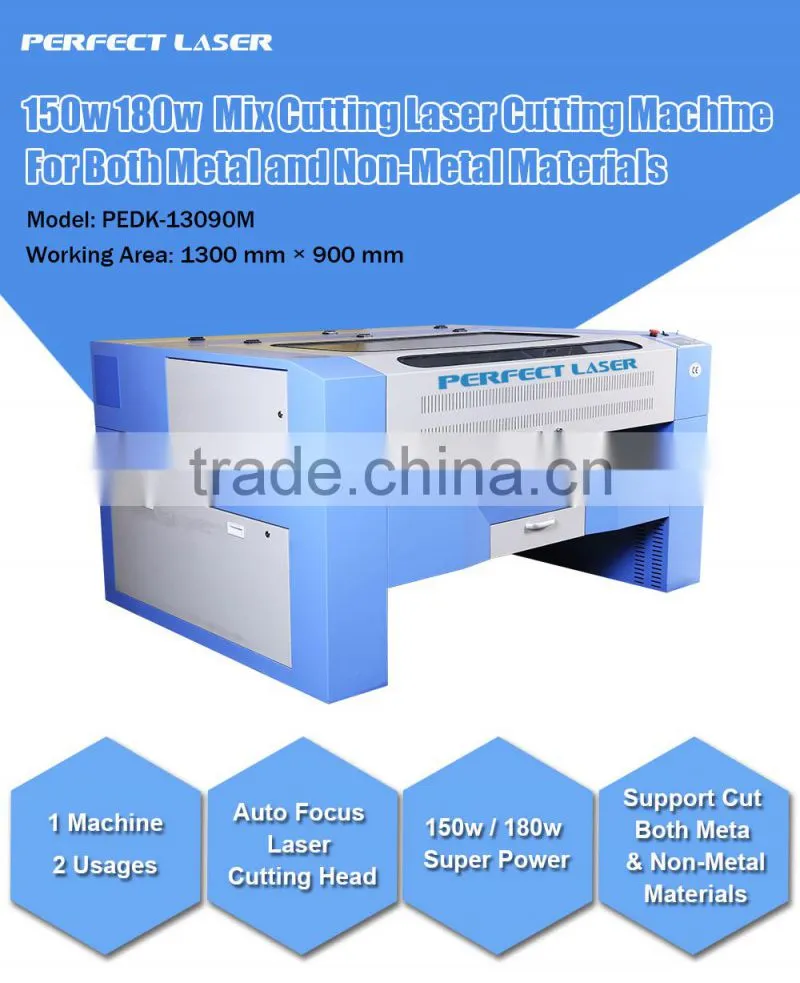

PEDK-13090M |
PEDK-130250M |
Working Area |
1300*900mm |
1300*2500mm |
Laser Power |
150w |
180w / 260w / 300w |
Transmission Method & Driving System |

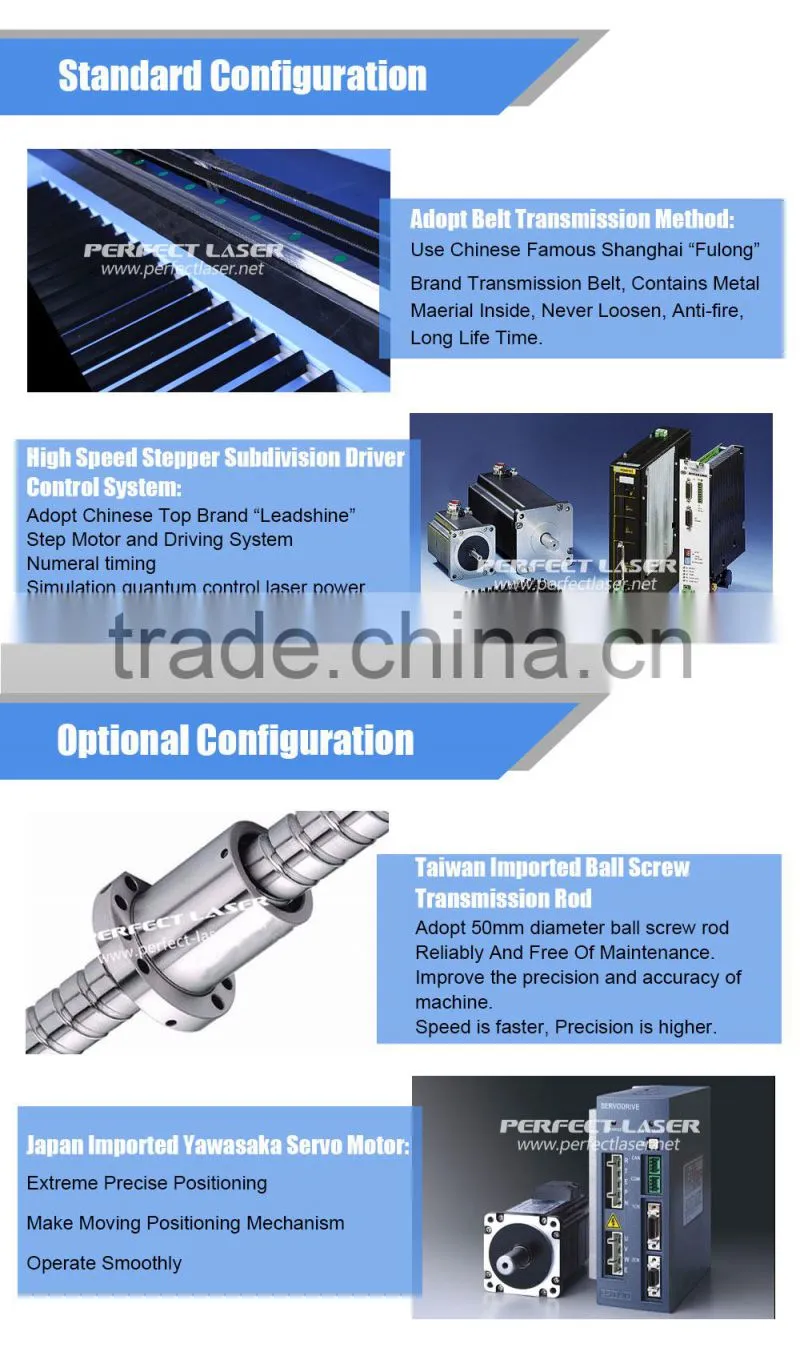

Standard Machine: use Belt Transmission +Chinese Top Brand “Leadshine” Step Motor and Driving System Optional Machine: use Ball Screw Transmission +Japan IMported Yaskawa Servo Motor and Driving System |
|
Laser Type |
CO2 Sealed Laser Tube, 10.6um |
|

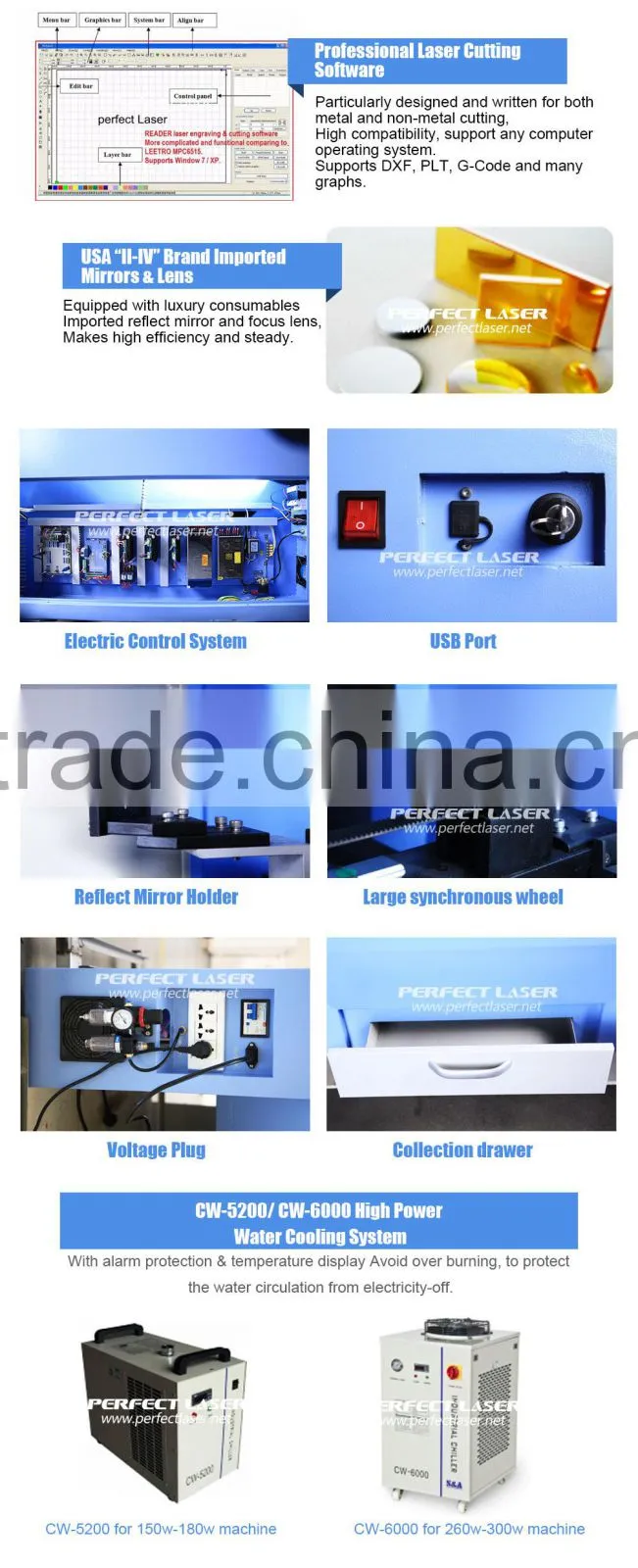

Cooling Type |
Water Cooling, 150w-180w Machine use CW-5000, 260w-300w Machine use CW-6000 |
|
Working Table |
Stainless steel and knife table |
|
Laser Output Control |
(0-100% Set by Software ) |
|
Smallest Character Engraving |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
|
Highest Scanning Precision |
4000DPI |
|
Positioning Accuracy |
±0.02mm/m |
|
Positioning Speed |
20m/min |
|
Max. Cutting Thickness |
40mm |
|
Max. Cutting Speed |
20m/min |
|
Controlling Software |
DSP Control System |
|
Graphic Format Supported |
BMP, PLT, DST, DXF, and AI, etc |
|
Compatible Software |
CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
|
Drive System |
High-precision 3-phase Stepper Motor |
|
Auxiliary Equipment |
Exhaust Fan and Air Exhaust Pipe |
|
Controlling software |
Off-computer controlling system |
|
Working voltage |
AC110-220V ±10%/10A,50-60HZ |
|
Power |
<2000w |
|
Packing |
Standard Plywood Case |
|
Warranty |
12 month for whole machine, 10 month for laser tubes |
|
Training |
VCD training |
|
Weight |
1000 kg |
|

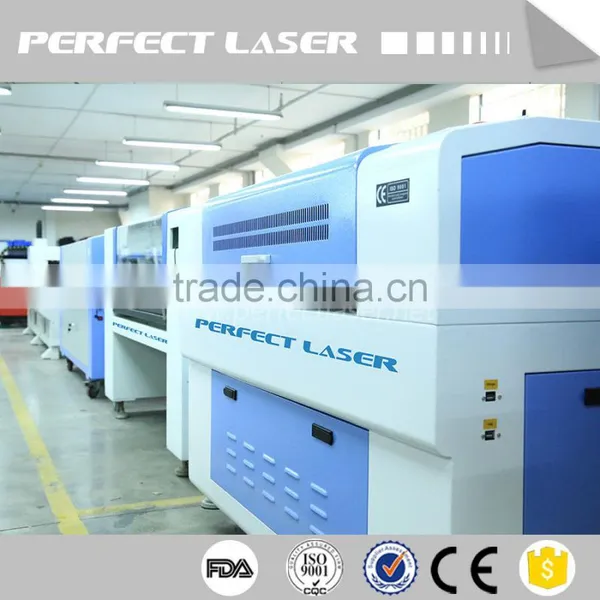

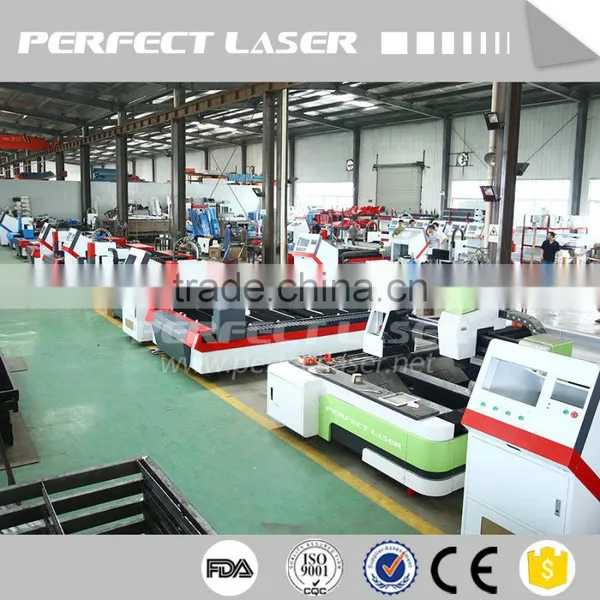

Perfect Laser is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.
Product
Our products include: laser engraving machine, laser cutting machine, fiber laser marking machine, fiber laser cutting machine, die board laser cutting machine, 3D laser engraving machine, CNC router, plasma cutter, dot peen marking machine, inkjet printer, CNC channel letter bender, laser welding machine and so on.
More than 20 series, 300 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in electronics, hardware, model-making, clothing, footwear, advertising, printing and packaging, toy-making, as well as more industries.
Certificate and International Certification
As ISO9001: 2000 certified laser machinery manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Perfect Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
