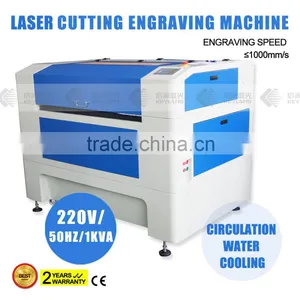

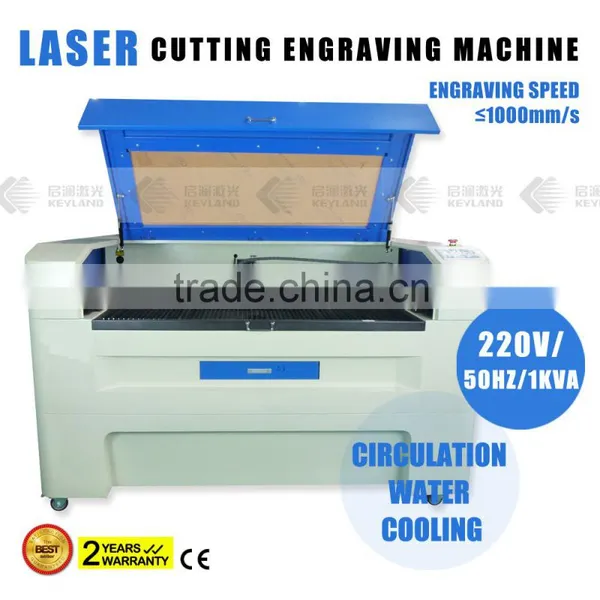

Keyland Multi-purpose CNC Laser Engraver with Reci
Laser Power:60W 80W 100W 130W 150W 200W

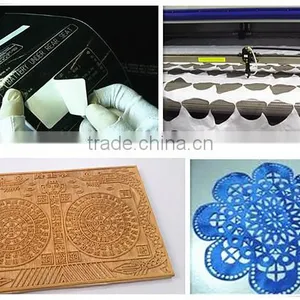

Laser Engraver Machine is suitable for leather Jeans MDF Wood Acrylic Plastic glass paper and other nonmetal materials Engraving/hollowing/marking/cutting
Details of Laser Engraver Machine
Mode |

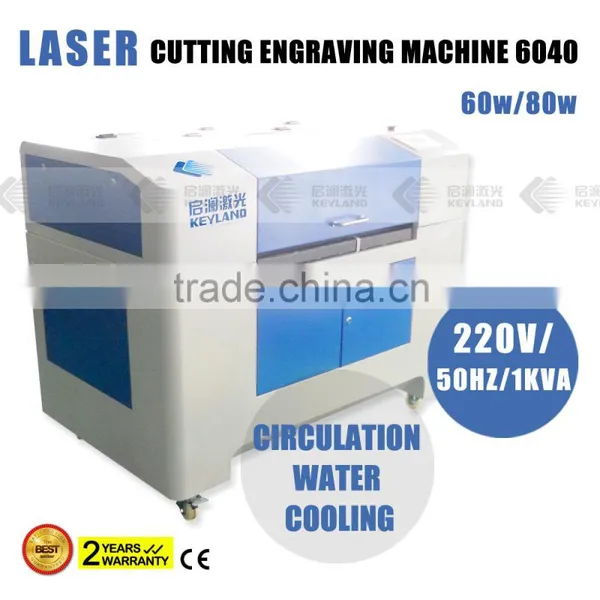

KQG-6040 KQG-1060 KQG-1390 KQG-1612 KQG-1325 KQG-1825 |
Laser wavelength |
CO2 10640nm |
Laser power |
60W 80W 100W 130W 150W 200W |
Working table |
600mm*400mm 1000*600mm 1300*900mm 1600*1200mm 1300*2500mm 1800*1800mm |
Water Chiller |
Cw3000/5000/5200 Water Pump |
Cutting speed |
≤500mm/s |
Engraving speed |
≤1000mm/s |
Repeat positional accuracy |
≤+0.01mm |
Laser output control |
0-100% set by software |
Min. engraving size |
1.0*1.0mm |
Highest scanning precision |
2500DPI |
Controlling software |
DSP |
Drive system |
3-phase stepper motor or servo Motor |
Interface |
LCD screen with USB interface |
off-line work |
YES |
Connect way |
USB OFFLINE |
Power |
AC110V/220V+10%,50HZ/60HZ |
Graphic format supported |
DST PLT BMP DXF DWG AI LAS,etc |
Compatible software |
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
Compatible with |
windows7/8/xp |
Auxiliary equipments |
Exhaust fan and air exhaust pipe |
Color separation |
yes |
Software output |
PLT,BMP,DXF,T100 and etc. |
Working environment |
Temperature:0-45°C,Humidity 5-95% |
Cooling way |
Circulation Water cooling system |
Option |
Rotary device,auto focus,up-down working table,red pointer and etc |
Exact materials can be used by keyland Laser Engraver Machine
Materials |
Cutting |
Engraving |
Wood |
√ |
√ |
Melamine |
√ |
√ |
Matte Board |
√ |
√ |
Wood veneer |
√ |
√ |
Cork |
√ |
√ |
Corian |
√ |
√ |
Anodized Aluminum |
|
√ |
Painted metals/Coated metal |
|
√ |
Plastic |
√ |
√ |
Fiberglass/Acrylic |
√ |
√ |
Fabric |
√ |
√ |
Glass/Ceramic/Marble |
|
√ |
Delrin |
√ |
√ |
Cloth/Leather/Mylar |
√ |
√ |
pressboard |
√ |
√ |
Rubber |
√ |
√ |
Keyland laser engraver machine is composed of
Optical Parts |
1.RECI/EFR glass laser tube or RF metal laser tube (option) 2.USA Imported Focus lens and reflector 3.Laser power Supply
|
|
Transmission Parts |
1.Imported HIWIN guide rail 2.Japan motor 3.Patent flexible coupling
|
|
Control System |
1.2015 New Software-Colorful interface 2.Emergency stop switch 3. Relay 4. Fan |
Cooling & dusty system |
Water chiller CW3000/CW5000/CW5200 or water pump (option) Air pump Fan exhaust |
|
Mechanical Parts- |
Working table : honeycomb working table or Blade working table Upper (1.5mm thickness sheet metal ) chasis(3mm thickness sheet metal) |
Keyland 's technology for Laser engraver Machine
Durable parts and good operating software are be used in our machines
Stronger appearance
t focus lens,the focus length is about 50.5 and 63.5 for option,which are suitable for cutting ,engraving
*Auto focus--adjust the working platform and workpiece to a suitable space automatically
*Red pointer --Easy and fast to align
*Z axis-(up down working table)-suitable for thickess of workpiece 's processing
*Rotary device--suitable for ring& Cylinder workpiece

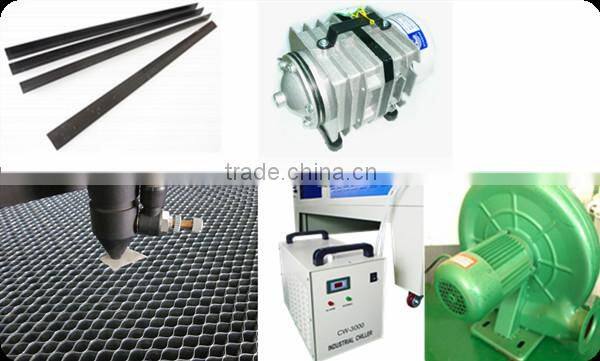

Auxiliary equipment of Laser engraver Machine
Blowing nozzle--- Debris being transferred in the process
Hydraulic protection,exclusion of dust and smoke.
Universal Wheels --easy to move machine
Water Chiller---make laser tube longer lifetime.
Air pump.fan exhust

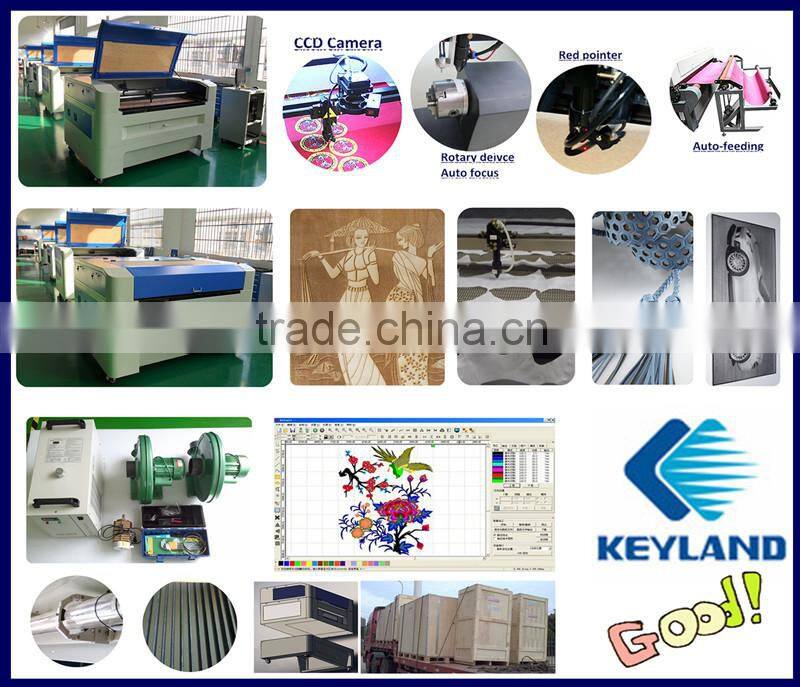

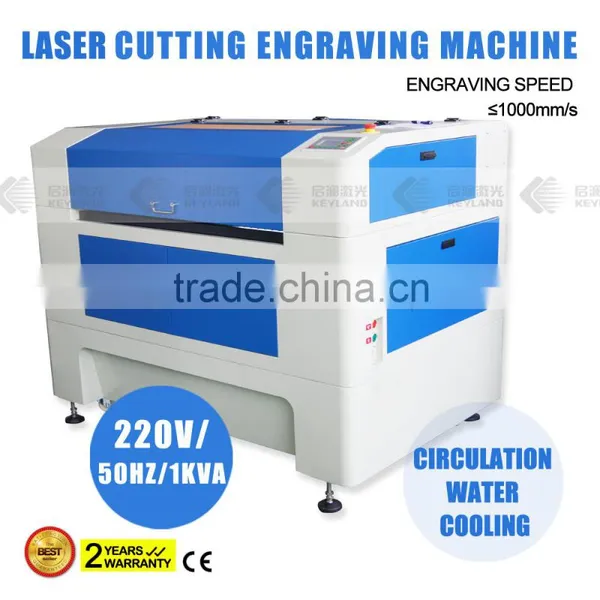

Actual photos of laser engraver machine:
About Keyland
Before quotation, would you please let me know some items following?
1.What materials do you want to engrae on by our laser engraving machine?
2.What max. size of your workpiece ?
Then, more details with good price will be sent . Also more industry solution will be supplied.
Notice:
Laser Engraving machine agents wanted all over the world.
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful
Ms Lucia await for your inquiry about Keyland laser machine.
You can contact me through following way:
1. CLICK "CONTACT SUPPIER" or "SEND MESSAGE"to send offer to me through alibaba.
2.Ms Lucia's online contact way: Whatsapp:0086 186 7291 7139
Skype:lvlucia
QQ:593670706
Email:lucia (at)
3.Also YOUTOBE :keylandlaser
Facebook:keyland laser
To know more about our company new trends ,laser machines' working processing.
