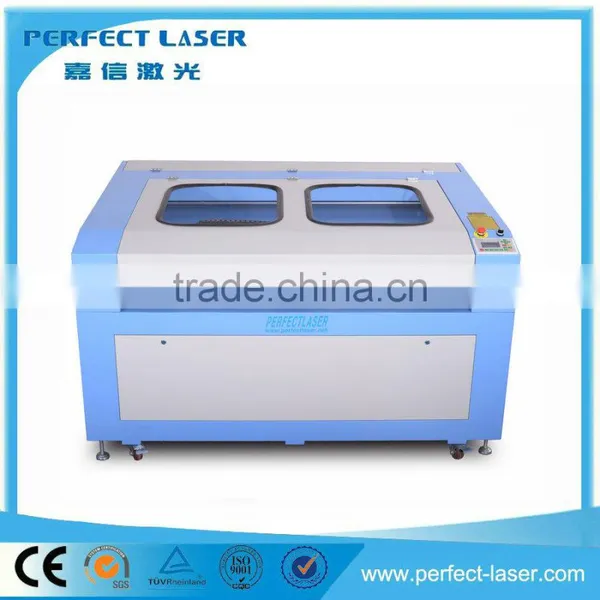

Help CenterPEDK-13090M CO2 Laser Cutting Machine
Related Products
-
2016 New PEDK-130250M 130W Mixed Laser Cutting Machine With CEUS$ 6,700 - 6,700MOQ: 1 Set -
20 Years Manufacturer 60w 80w 100w 120w 150w Wood / Acrylic / MDF / Plastic / Fabric Co2 Laser Cutting Machine Price 1390US$ 2,200 - 3,800MOQ: 1 Unit
-
20 Years Factory Non Metal Co2 Laser Engraving Cutting MachineUS$ 3,999 - 4,999MOQ: 1 Set
-
20 Years Factory Non Metal and Metal Laser Cutting Machine PriceUS$ 5,999 - 20,000MOQ: 1 Set
-
Perfect Laser PEDK-130180 100W Laser Engraving Machine With CEUS$ 4,800 - 4,800MOQ: 1 Set

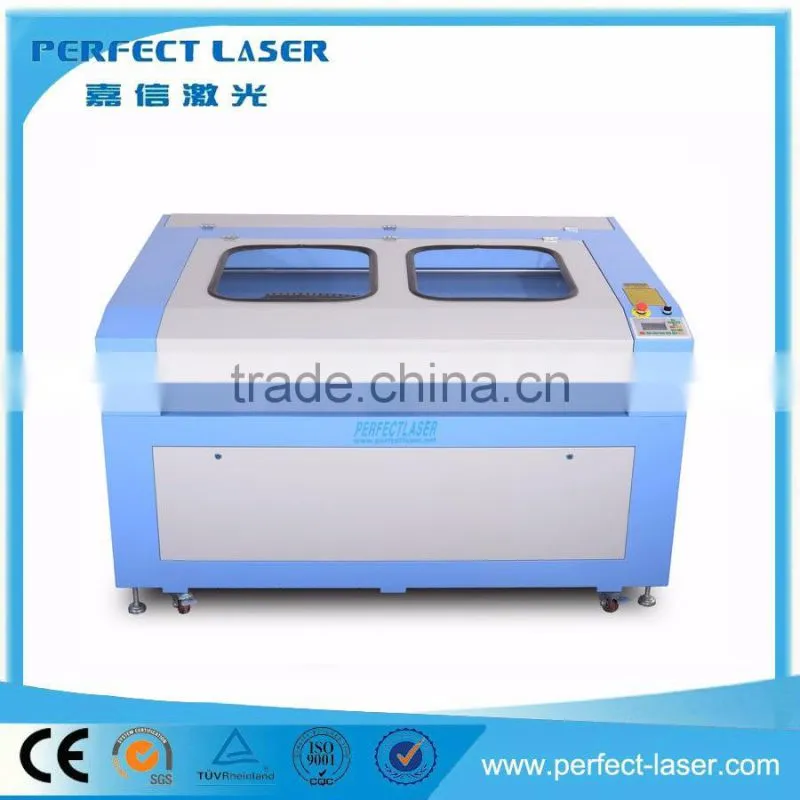

The steel sheet cutter is a so wonderful choice for user who has demand to cut 1-2mm thin metal material and thick non-metal materials by own this industrial laser cutter.

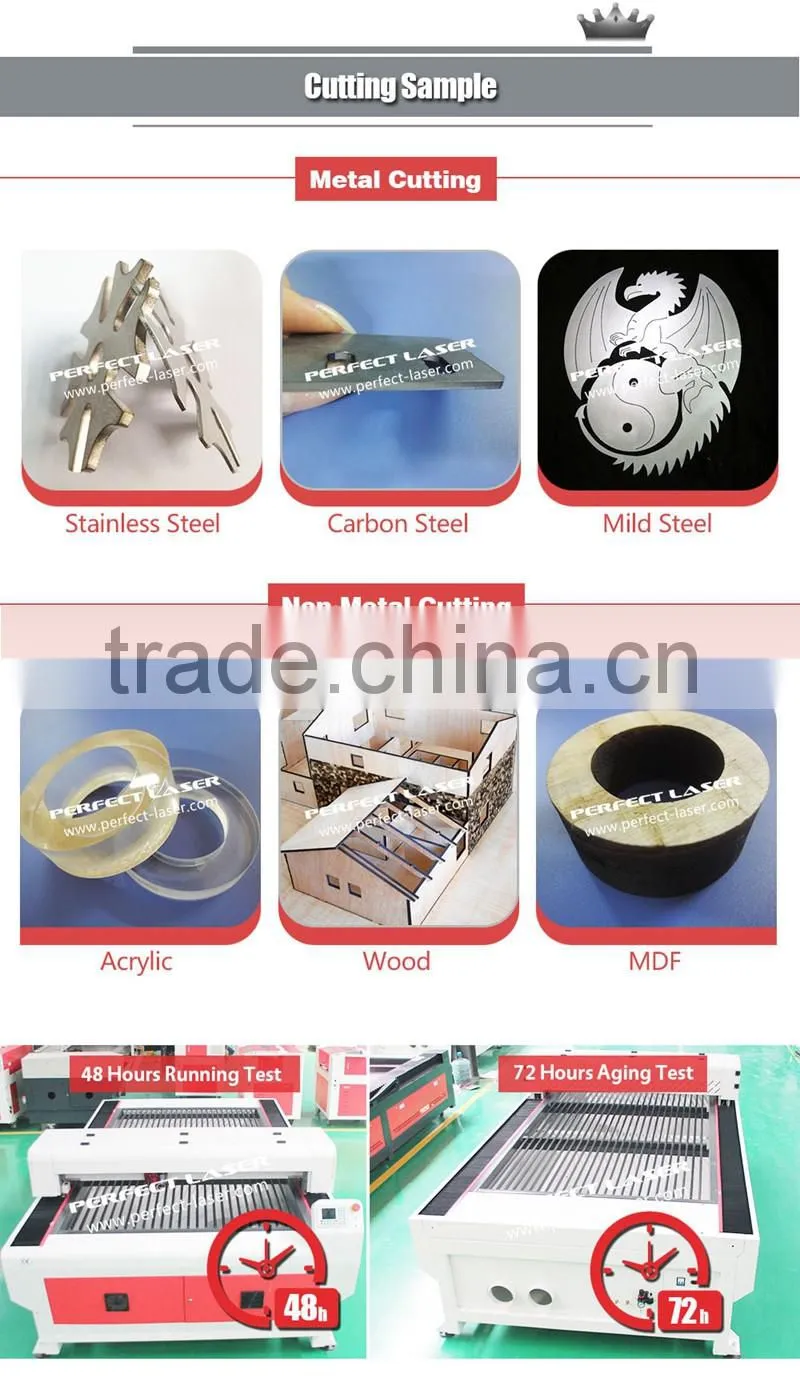

Metal Materials Cutting: Stainless Steel, Mild steel, Carbon Steel
Non-Metal Materials Cutting: Acrylic,MDF, Wood, Plywood, Plastic, PVC board, Double Color Board, Rubber

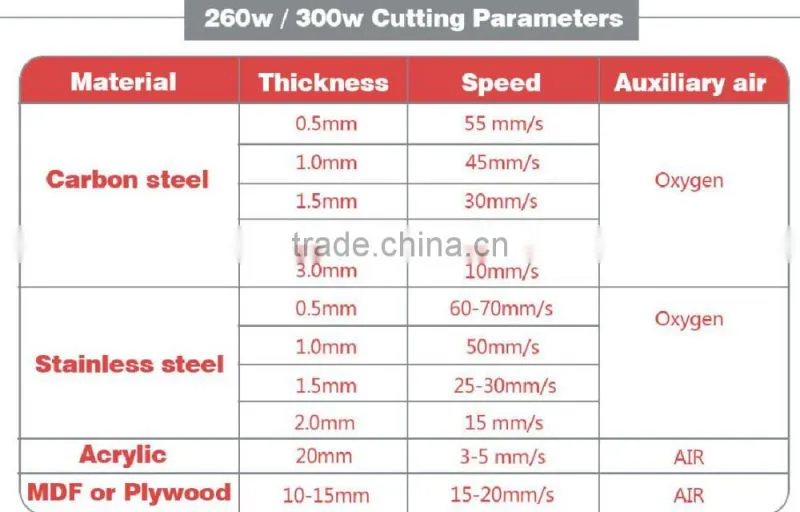

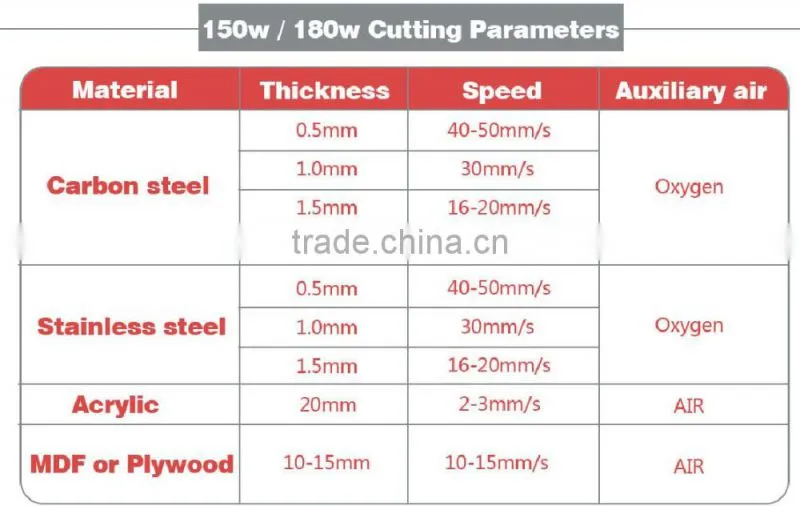

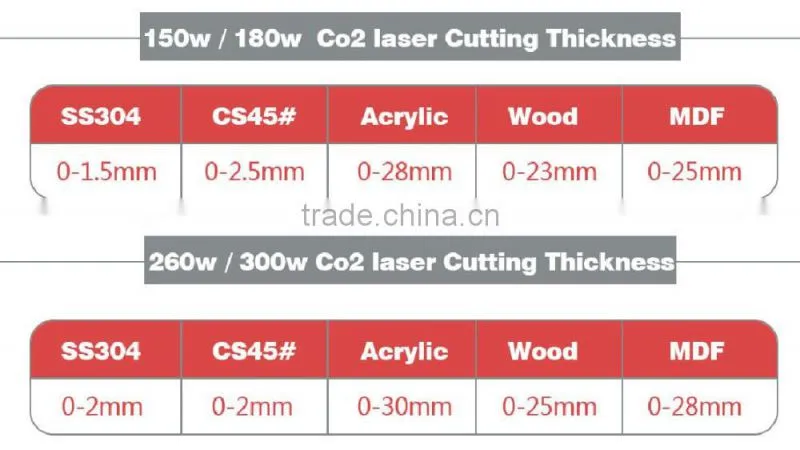

Cutting Thickness Form:
Special Features:
1) Mix Cutting: The metal plate cutter supports both metal and non-metal Cutting, which can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.

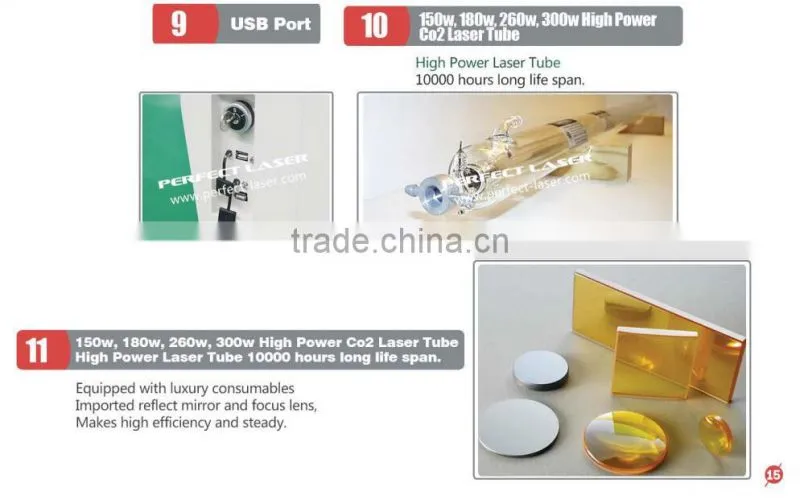

2) The metal plate cutter adopts 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.

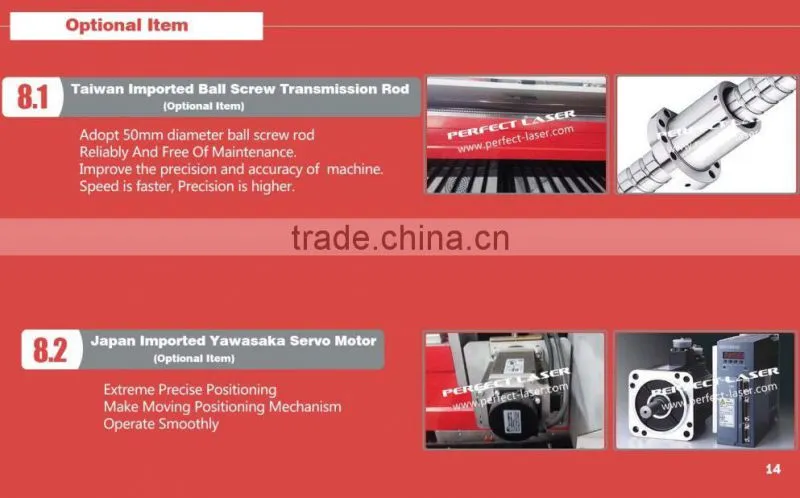

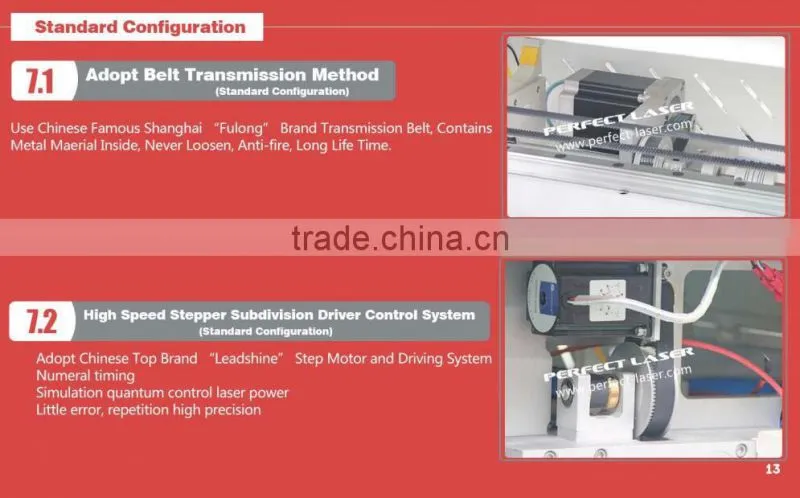

3) Adopt Japan Imported Motor and Ball Screw Transmission Rod, with fast speed and high precision.
4) This metal plate cutter adopts dynamic auto-focusing metal sheet laser cutting head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.

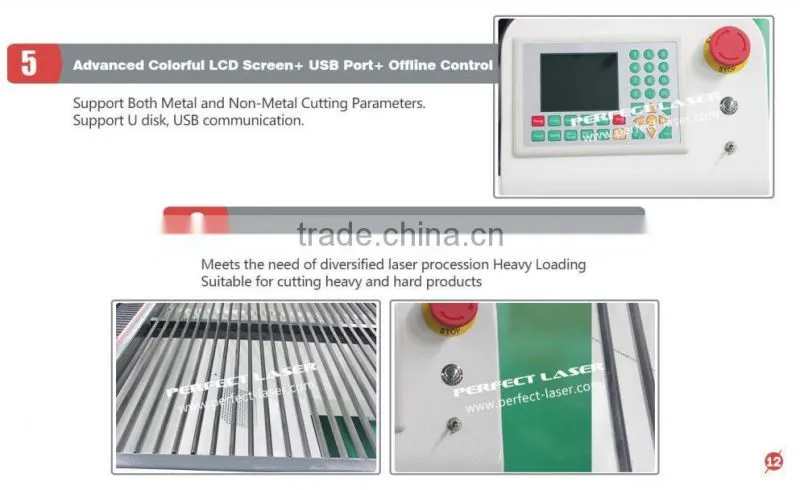

5) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which make the metal plate cutter can not only work without computer, but also connect to U disk, USB communication.
6) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
7) This steel sheet cutter use imported high precision linear guide rail and professional optical system, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
8) Professional Strip work table: meets the needs of diversified laser procession;
9) Water Cooling System with Alarm Protection, adopt CW-5000 or CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
10) Equipped with luxury Consumables,USA original Focus Lens and reflect mirror, steel sheet cutter makes high efficiency and steady.

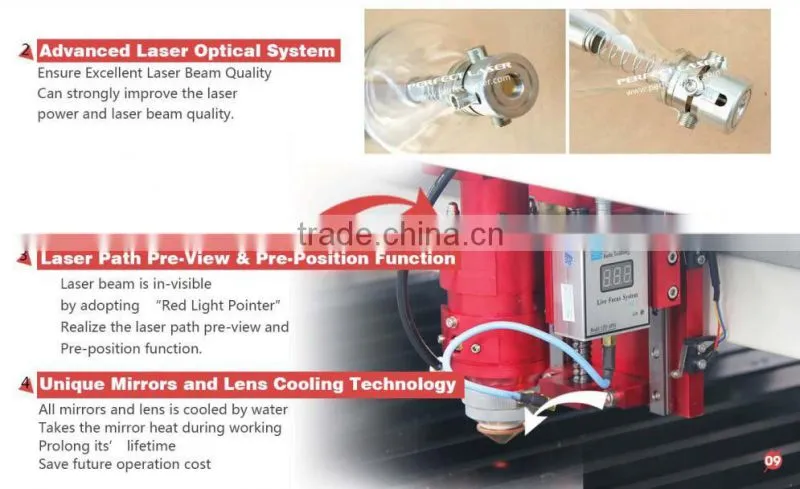

11) Red Light Pointer realizes the exact position without laser.
12) Matched Professional cutting software is particularly designed and written for both metal and non-metallic cutting, with high compatibility, support any computer operating system.
13)The steel sheet cutter can also called mdf laser cut, acrylic cutter.
China best laser tube with 10000 hours lifetime with 10 months warranty
150w, 180w, 260w, 300w

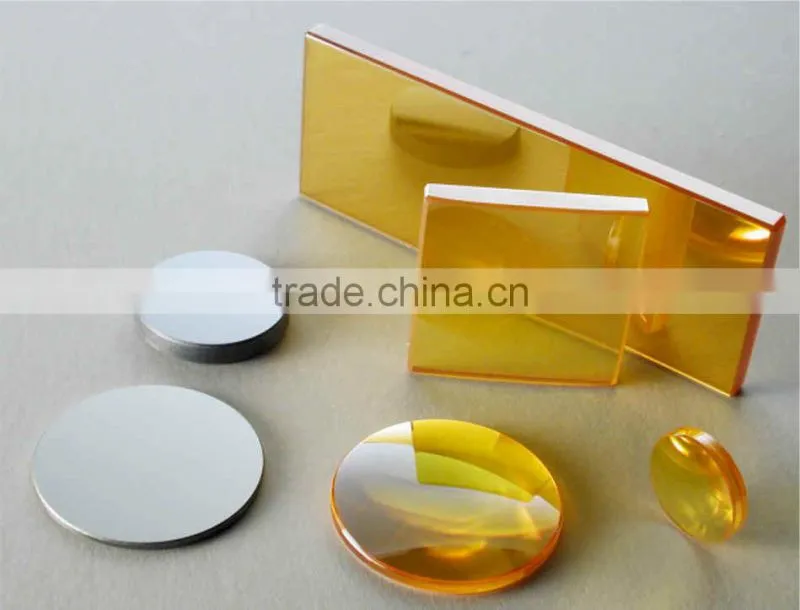

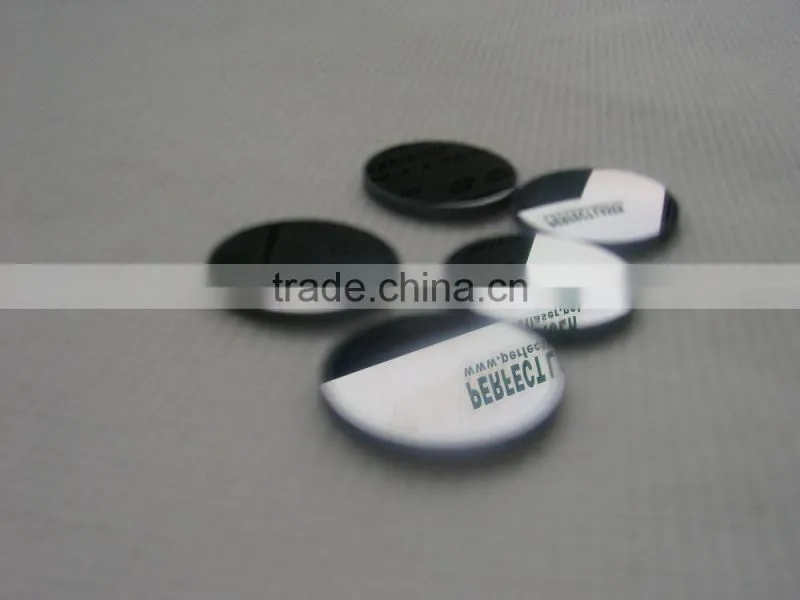

American brand focus lens
Lifetime 6 months-12 months
American brand reflective mirrors
Lifetime 6 months-12 months
Warranty & Service
1. 1 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment
if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
FAQ:
Q1.: What’s the package for this machine?

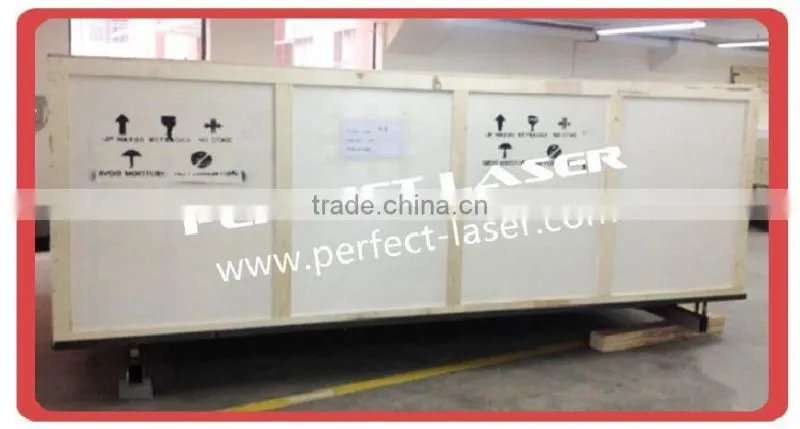

A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q3.: How to install and run the 20W laser printer?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q4.: How can I do if the 20W laser printer goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

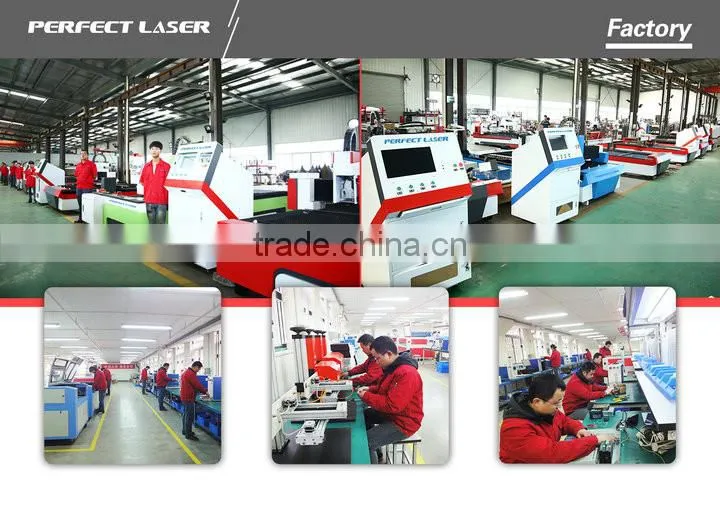

Perfect Laser is a world famous manufacturer of industrial laser &cnc advertising equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.pecimen book.
