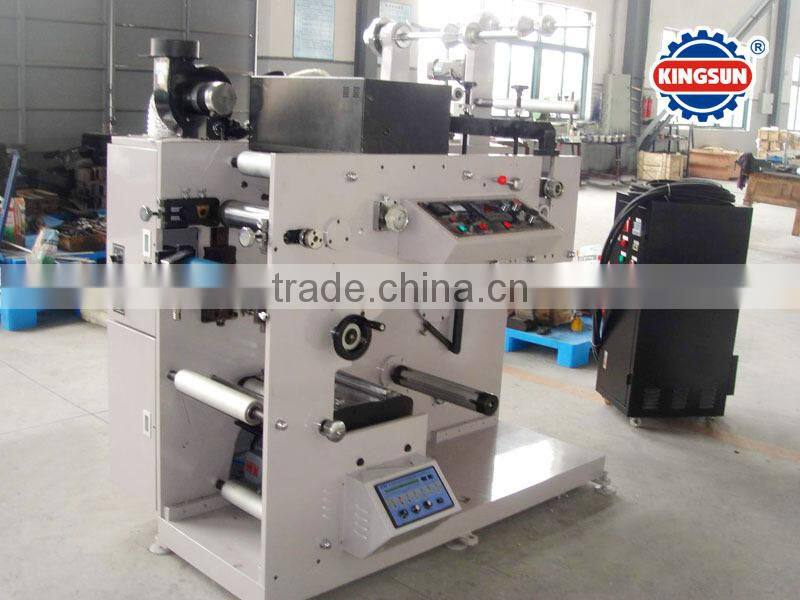

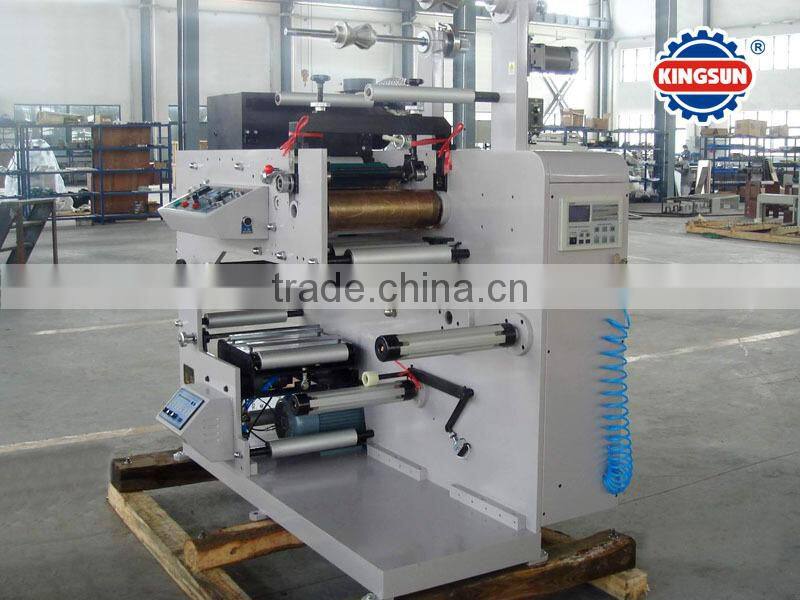

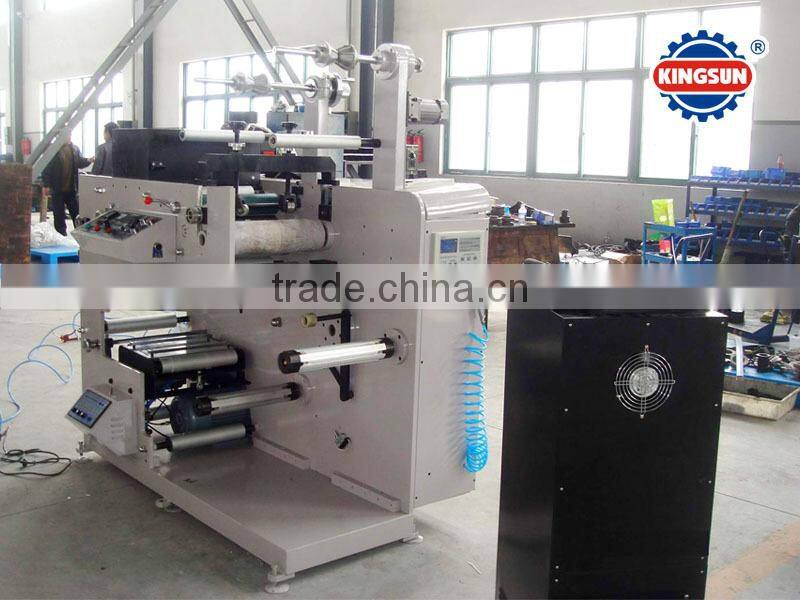

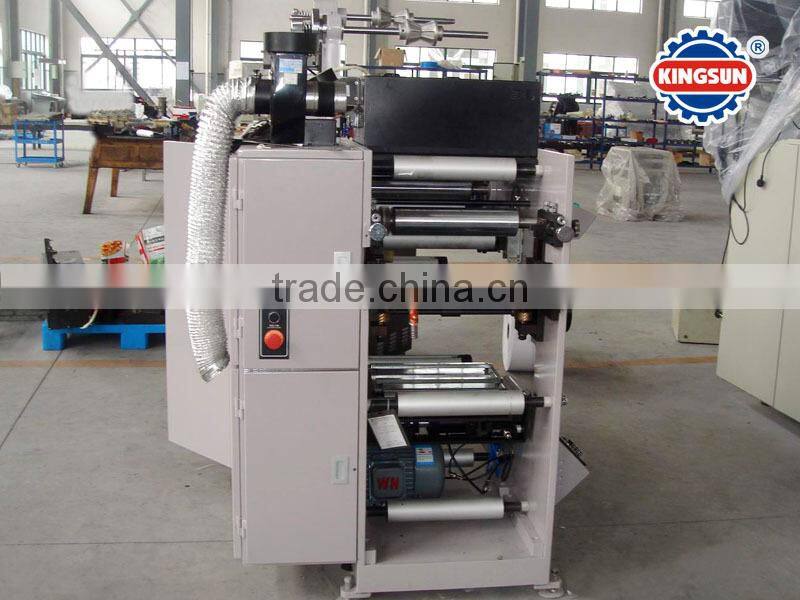

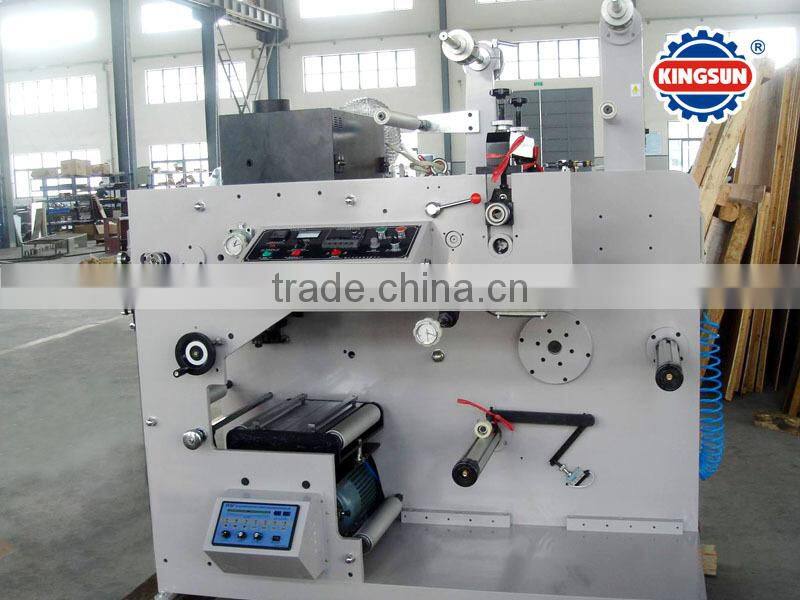

FP450 single colour stickers label flexo printing machine
This flexo printing press is fit for flexo printing of label paper, commercial forms; computer typing paper, film etc, the printing quality is high and cost effective for the plate. This flexo printing equipment use water based ink, it is green equipment so widely accepted by printing and packaging industry.
Features:
1. Use high precision ceramic anilox cylinder for ink transfer
2. Unwinding adopts magnetic brake and Mitsubishi tension controller
3. Rewinding adopts magnetic clutch and reliable tension controller
4. Printing unit 360° plate register adjustment
5. IR dryer for each printing unit
6. The anilox roller will be separated with plate roller and still keeping low speed running after machine stopped
7. Imported frequency inverter for speed control
8. With laminating unit and rotary die cutting unit
9. Optional parts: UV dryer, web guide, turn-bar, rotary die cutting station, video camera etc.
10. 320mm, 450mm, 620mm, 820mm width available, other size can be special made
Main specifications:
Model |
FP-450 |
Printing speed |
50m/min |
Printing color number |
1 |
Max. web width |
320mm |
Max. printing width |
310mm |
Max. unwinding diameter |
600mm |
Max. rewinding diameter |
600mm |
Printing repeat length |
175-320mm |
Precision of color register |
±0.1mm |
Overall dimensions |
2X1.25X1.6M |
Weight |
About 1300kg |
Main equipments:
Description |
Quantity and Brand |
Printing roller |
3sets |
Anilox roller |
1set |
Mounting machine |
1set |
Unwind tension controller |
1pc, Mitsubishi , Japan |
Transducer |
2pcs, Mitsbishi , Japan |
Rewind tension controller |
1pc, Made in china |
Magnetic power brake |
2pc, Ningxia , china |
Electromagnetism valve |
1pc, SMC, Japan |
Inverter |
1 pc, TECO, Taiwan |
Contactor |
Schneider , France |
Center relay |
Schneider , France |
Temperature |
Yuyao , China |
All Switches |
Schneider , France |
Other low-pressure wiring |
Schneider , France |
Standard configuration
3sets of printing rollers
1set of anilox roller
Mounting machine
IR Dryer
Turn bar
Lamination system
One rotary die-cutting station
Unwinder tension controller ( China brand )
Rewinder tension controller (China brand)
Options:
UV dryer:
Web-guiding system :
Rewinder tension controller (Mitsubishi):
Video inspecting system :
