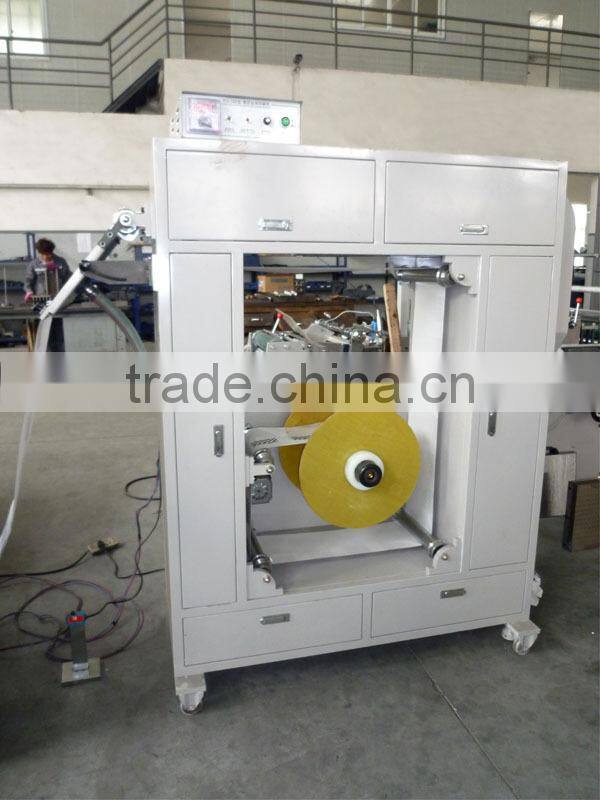

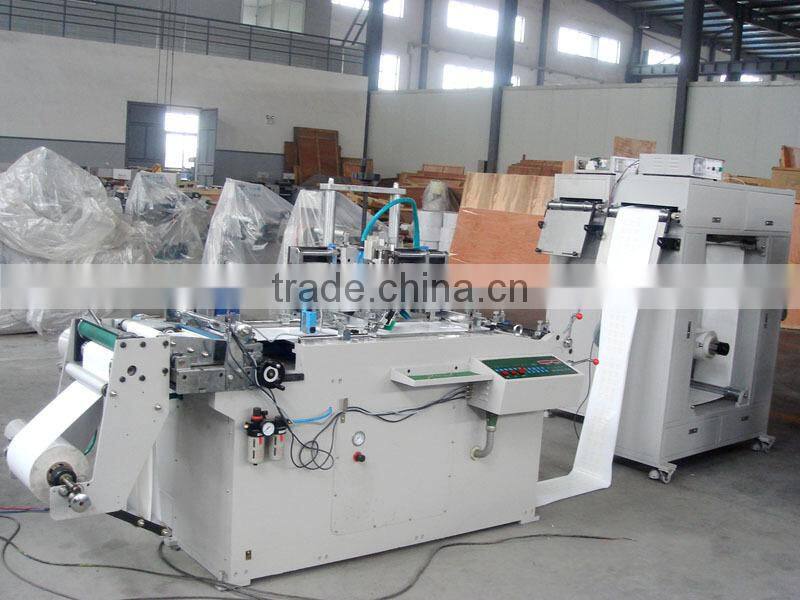

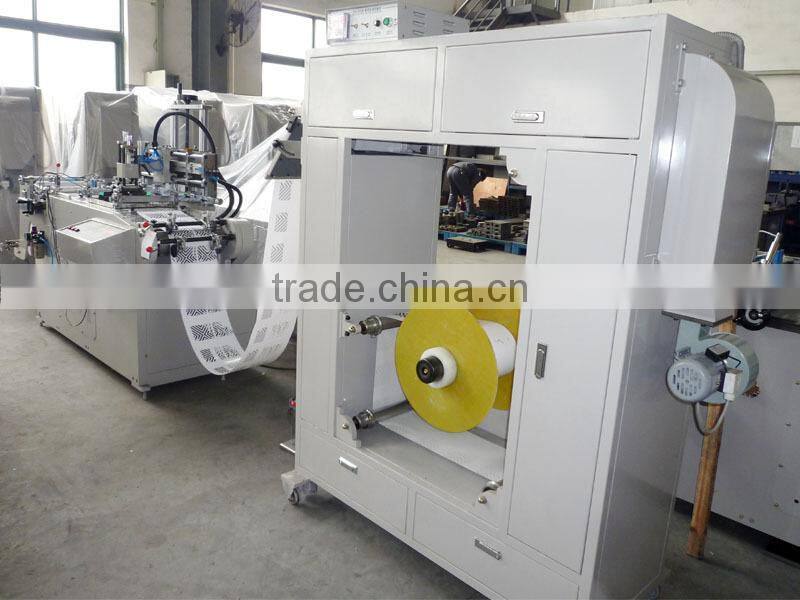

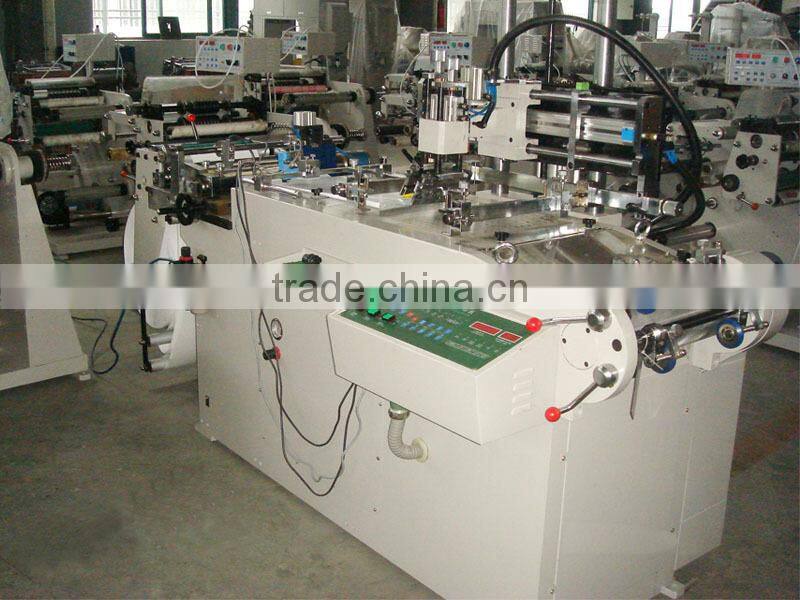

WQ 320 self-adhesive label screen printing press
This machine is used for printing on reel material such as PVC,OPP,Nylon,hologram label,adhensive label sticker,etc. the material feeding of this machine is controlled by servomotor,the main drive part adopted the pneumatic device,and the printing position is followed and controlled by photocell. the machine has the characteristic of high accurate of color register,steady material-feeding,automatic counter and alarm,convenient adjust and compact structure,etc.
Main specifications:
Model |
WQ-320 |
Printing speed |
10-50m/min |
Max. web width |
320mm |
Max. printing width |
300mm |
Max. printing length |
320mm |
Max. unwinding diameter |
450mm |
Printing repeat length |
175-355mm |
Precision of color register |
±0.15mm |
Main motor power |
1.2kw |
Oven power |
4.1kw |
Air pressure needed |
4.5-6kg/cm2 |
Main machine dimension |
2.4x0.95x1.5m |
Overall dimensions |
1.75x0.6x1.8m |
Weight |
About 1100kg |
