►Description
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environ metal stress resisting anti-chemical cross, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
►Application ►Construction
These power cable for fixed installations such as distribution networks or industrial installations. Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc
Conductor: Plain annealed copper, class 1 solid or class 2 stranded acc. to IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.

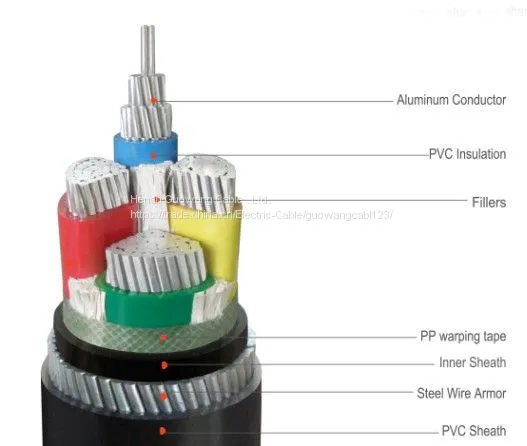

Assembly: Cores cabled together with PP filler and covered with non-woven tape.
Outer Sheath: Polyvinyl choride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Outer Sheath Color: Black or other color as per customer request
This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEAstandard as customer request.
■ Technical Data
►Parameter
Sectional Area |
Insulation Thickness |
Outer Sheath Thickness |
Approximate Outer Diameter |
Approximate Weight |
DC Resistance |
Test Voltage |
Carrying Capacity |
|||||
In Air |
In Burial |
|||||||||||
Cu |
AL |
Cu(≤) |
AL(≤) |
Cu |
AL |
Cu |
AL |
|||||
3×1.5 |
0.70 |
1.50 |
10 |
145 |
- |
12.1 |
- |
3.5 |
25 |
- |
30 |
- |
3×2.5 |
0.70 |
1.50 |
11 |
185 |
140 |
7.41 |
12.1 |
3.5 |
30 |
25 |
35 |
30 |
3×4 |
0.70 |
1.50 |
12 |
582 |
175 |
4.61 |
7.41 |
3.5 |
40 |
30 |
50 |
40 |
3×6 |
0.70 |
1.50 |
13 |
320 |
210 |
3.08 |
4.61 |
3.5 |
50 |
40 |
60 |
45 |
3×10 |
0.70 |
1.50 |
15 |
450 |
260 |
1.83 |
3.08 |
3.5 |
65 |
50 |
80 |
60 |
3×16 |
0.70 |
1.50 |
17 |
640 |
340 |
1.15 |
1.91 |
3.5 |
85 |
62 |
100 |
80 |
3×25 |
0.90 |
2.0 |
21 |
940 |
470 |
0.727 |
1.20 |
3.5 |
115 |
90 |
130 |
100 |
3×35 |
0.90 |
2.0 |
23 |
1260 |
600 |
0.524 |
0.868 |
3.5 |
145 |
110 |
155 |
120 |
3×50 |
1.00 |
2.0 |
27 |
1670 |
730 |
0.387 |
0.640 |
3.5 |
175 |
130 |
185 |
140 |
3×70 |
1.10 |
2.0 |
30 |
2280 |
970 |
0.268 |
0.443 |
3.5 |
220 |
170 |
225 |
175 |
3×95 |
1.10 |
2.0 |
34 |
3020 |
1240 |
0.193 |
0.320 |
3.5 |
270 |
205 |
270 |
210 |
3×120 |
1.20 |
2.5 |
38 |
3790 |
1540 |
0.153 |
0.253 |
3.5 |
315 |
240 |
305 |
235 |
3×150 |
1.40 |
2.5 |
42 |
4750 |
1940 |
0.124 |
0.206 |
3.5 |
360 |
275 |
345 |
265 |
3×185 |
1.60 |
2.5 |
45 |
5654 |
2248 |
0.0991 |
0.164 |
3.5 |
420 |
320 |
390 |
301 |
3×240 |
1.70 |
3.0 |
51 |
7243 |
2723 |
0.0754 |
0.125 |
3.5 |
500 |
385 |
455 |
355 |
3×300 |
1.80 |
3.0 |
52 |
9465 |
3675 |
0.0601 |
0.100 |
3.5 |
570 |
445 |
430 |
395 |
3×400 |
2.00 |
3.0 |
54 |
12066 |
4506 |
0.0470 |
0.0778 |
3.5 |
670 |
530 |
580 |
460 |
4×4 |
0.70 |
1.50 |
13 |
253 |
155 |
4.61 |
7.41 |
3.5 |
40 |
30 |
50 |
40 |
4×6 |
0.70 |
1.50 |
14 |
337 |
184 |
3.08 |
4.61 |
3.5 |
50 |
40 |
60 |
45 |
4×10 |
0.70 |
1.50 |
16 |
501 |
258 |
1.83 |
3.08 |
3.5 |
65 |
50 |
80 |
60 |
4×16 |
0.70 |
2.00 |
19 |
778 |
366 |
1.15 |
1.91 |
3.5 |
85 |
65 |
100 |
80 |
4×25 |
0.70 |
2.00 |
22 |
1160 |
540 |
0.727 |
1.20 |
3.5 |
115 |
90 |
130 |
100 |
4×35 |
0.90 |
2.00 |
25 |
1554 |
686 |
0524 |
0.868 |
3.5 |
145 |
110 |
155 |
120 |
4×50 |
1.00 |
2.00 |
28 |
2148 |
907 |
0.387 |
0.641 |
3.5 |
175 |
130 |
185 |
140 |
4×70 |
1.10 |
2.00 |
32 |
2928 |
1192 |
0.268 |
0.443 |
3.5 |
220 |
170 |
225 |
175 |
4×95 |
1.10 |
2.5 |
37 |
3954 |
1598 |
0.193 |
0.320 |
3.5 |
270 |
205 |
270 |
210 |
4×120 |
1.20 |
2.5 |
42 |
4925 |
1949 |
0.153 |
0.253 |
3.5 |
315 |
240 |
305 |
235 |
4×150 |
1.40 |
3.00 |
46 |
6238 |
2517 |
0.124 |
0.206 |
3.5 |
360 |
275 |
345 |
265 |
4×185 |
1.60 |
3.00 |
51 |
7562 |
3091 |
0.0991 |
0.164 |
3.5 |
420 |
320 |
390 |
305 |
4×240 |
1.70 |
3.00 |
57 |
9836 |
3825 |
0.0754 |
0.125 |
3.5 |
500 |
385 |
455 |
355 |
4×300 |
1.80 |
3.00 |
59 |
12550 |
4830 |
0.0601 |
0.100 |
3.5 |
570 |
445 |
430 |
395 |
4×400 |
2.00 |
1.50 |
62 |
15939 |
5840 |
0.0470 |
0.0778 |
3.5 |
670 |
530 |
580 |
460 |
3×4+1×2.5 |
0.70 |
1.50 |
13 |
236 |
147 |
4.61 |
7.41 |
3.5 |
40 |
30 |
50 |
40 |
3×6+1×4 |
0.70 |
1.50 |
14 |
315 |
87 |
3.08 |
4.61 |
3.5 |
50 |
40 |
60 |
45 |
3×10+1×6 |
0.70 |
1.50 |
16 |
416 |
234 |
1.83 |
3.08 |
3.5 |
65 |
50 |
80 |
60 |
3×16+1×10 |
0.70 |
2.00 |
18 |
479 |
322 |
1.15 |
1.91 |
3.5 |
85 |
65 |
100 |
80 |
3×25+1×16 |
0.90 |
2.00 |
22 |
1065 |
505 |
0.727 |
1.20 |
3.5 |
115 |
90 |
130 |
100 |
3×35+1×16 |
0.90 |
2.00 |
24 |
1306 |
615 |
0.524 |
0.868 |
3.5 |
145 |
110 |
155 |
120 |
3×50+1×25 |
1.00 |
2.00 |
28 |
1901 |
816 |
0.387 |
0.641 |
3.5 |
175 |
130 |
185 |
140 |
3×70+1×35 |
1.10 |
2.00 |
31 |
2585 |
1085 |
0.268 |
0.443 |
3.5 |
220 |
170 |
225 |
175 |
3×95+1×50 |
1.10 |
2.00 |
36 |
3518 |
1440 |
0.193 |
0.320 |
3.5 |
270 |
205 |
270 |
210 |
3×120+1×70 |
1.20 |
2.50 |
40 |
4443 |
1766 |
0.153 |
0.253 |
3.5 |
315 |
240 |
305 |
235 |
3×150+1×70 |
1.40 |
2.50 |
44 |
5326 |
200 |
0.124 |
0.206 |
3.5 |
360 |
275 |
345 |
265 |
3×185+1×95 |
1.60 |
3.00 |
48 |
6682 |
2650 |
0.0991 |
0.164 |
3.5 |
420 |
320 |
390 |
301 |
3×240+1×120 |
1.70 |
3.00 |
53 |
801 |
3291 |
0.0754 |
0.125 |
3.5 |
500 |
385 |
455 |
355 |
3×300+1×150 |
1.80 |
3.10 |
57 |
11155 |
4440 |
0.0601 |
1.100 |
3.5 |
570 |
445 |
430 |
395 |
3×400+1×240 |
2.00 |
3.10 |
60 |
14470 |
5392 |
0.0470 |
0.0778 |
3.5 |
670 |
530 |
580 |
460 |
