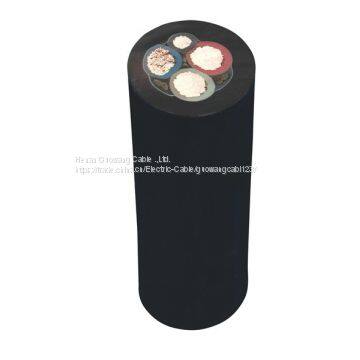

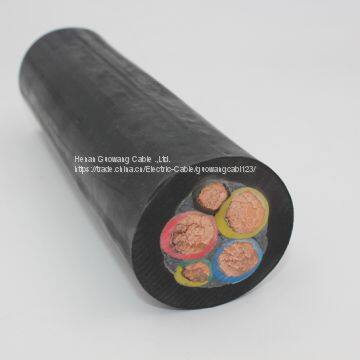

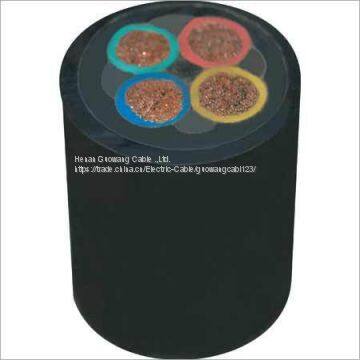

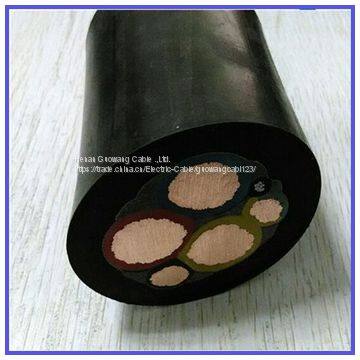

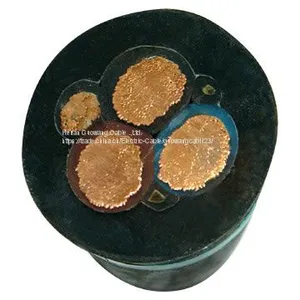

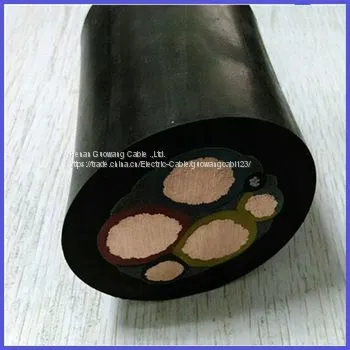

Help Center450/750 H07RN-F Flexible Rubber Sheathed Cable Rubber Insulation Cable 4*35MM2
Related Products
-
Welding Cable Butyl Rubber Sheathed 1000 V Or Less Single Conductor 22mm Sq X1cUS$ 1 - 5MOQ: 100 Meters -
H05SS-F Silicone Rubber Insulated Cables and Multicore WiresUS$ 1 - 5MOQ: 100 Meters
-
0.6/1kv Multi Conductor Copper Control Cable 2.5mm2 16ce Xlpe Insulation 90 C Steel Wire ArmouredUS$ 1 - 5MOQ: 100 Meters
-
120mm2 Aerial Bundled Conductor Aluminum ConductorUS$ 0.1 - 0.5MOQ: 100 Meters
-
Over Head Cables Project Aluminum Conductor Steel ReinforcedUS$ 0.1 - 0.5MOQ: 100 Meters
■ Specifications
►Application
The H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables to heavy mobile equipment.
►Technical Information
Standards: BS7919, CENELEC HD22.4 S4
Conductor: Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360)
Insulation: EPR (Ethylene Propylene Rubber) Type EI4 to BS7655
Sheath: PCP (Polychloroprene) Type EM2 to BS7655
Sheath Colour: Black
Voltage Rating: 450/750V
Number of cores: 1,2,3,3+1,4,5
Cross Sectional Area:1.5sqmm up to 400sqmm
Temperature Rating: Conductor operating temperature -30°C to +60°C (85°C max)
Minimum Bending Radius:
Up to 25mm²: 6 x overall diameter
Above 25mm²: 8 x overall diameter
►Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
■ Technical Data
No. of Cores x Normal | Normal Diameter | Normal Thickness | Normal Thickness of Jacket(mm)
| Over Diameter | Max Conductor Resistance |
2x1.0 | 0.2 | 0.8 | 1.3 | 8.3±0.5 | 17 |
2x1.5 | 0.253 | 0.8 | 1.5 | 9.3±0.5 | 21 |
2x2.5 | 0.253 | 0.9 | 1.7 | 11.2±0.5 | 30 |
2x4 | 0.3 | 1 | 1.8 | 12.8±0.5 | 39 |
2x6 | 0.3 | 1 | 12 | 14.4±0.5 | 51 |
3G1.0 | 0.2 | 0.8 | 1.4 | 9.0±0.5 | 12 |
3G1.5 | 0.253 | 0.8 | 1.6 | 10.1±0.5 | 18 |
3G2.5 | 0.253 | 0.9 | 1.8 | 12.1±0.5 | 26 |
3G4 | 0.3 | 1 | 1.9 | 13.9±0.5 | 34 |
3G6 | 0.3 | 1 | 2.1 | 15.4±0.5 | 43 |
4G1.0 | 0.2 | 0.8 | 1.5 | 9.9±0.5 | 14 |
4G1.5 | 0.253 | 0.8 | 1.7 | 11.1±0.5 | 18 |
4G2.5 | 0.253 | 0.9 | 1.9 | 13.3±0.5 | 27 |
4G4 | 0.3 | 1 | 2 | 15.2±0.5 | 34 |
4G6 | 0.3 | 1 | 2.3 | 17.2±0.5 | 44 |
5G1.0 | 0.2 | 0.8 | 1.6 | 11.0±0.5 | 14 |
5G1.5 | 0.253 | 0.8 | 1.8 | 12.2±0.5 | 18 |
5G2.5 | 0.253 | 0.9 | 2 | 14.6±0.5 | 27 |
5G4 | 0.3 | 1 | 2.2 | 16.9±0.5 | 34 |
5G6 | 0.3 | 1 | 2.5 | 19.1±0.5 | 44 |
