Home > Products > Electriw Wire > Pvc Cable Flexible Stranded Annealed Copper Class 5 1 Core X 1.5 Mm2 Red Colour H07v K 450 750v

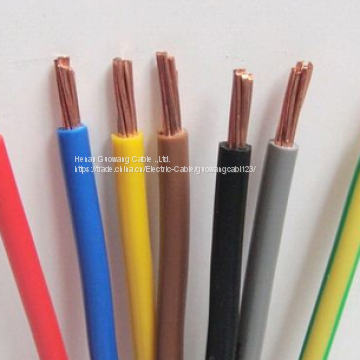

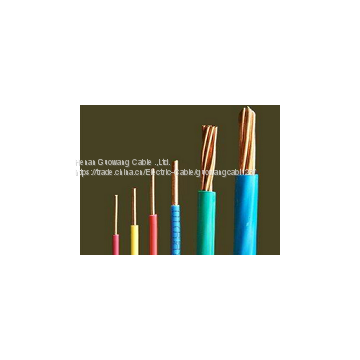

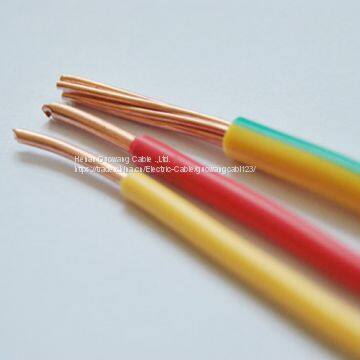

Pvc Cable Flexible Stranded Annealed Copper Class 5 1 Core X 1.5 Mm2 Red Colour H07v K 450 750v
- 1000000 Meter / Meters per Month
- Tianjin, Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
-
Mooring rope cable
-
Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
-
The difference between different types of automotive cables and selection advice
-
China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
-
IEC62196-2 mode 3 16A single-phase electric vehicle charging process
-
Automotive high-voltage cables with protection class IP67 characteristics
Product Details
| Brand Name: | Guowangcable | Place of Origin: | China | Type: | Low Voltage |
| Insulation Material: | XLPE | Jacket: | PVC | Conductor Material: | Copper |
Product Description
■ Specifications
►Construction
Conductor Material: Flexible Bare Copper/Tinned Copper
Insulation Material: PVC
Sheath Material: PVC
►Characteristics
Rated Voltage: 300/500V
Cross Section: 0.75/1.0/1.5/2/2.5/4/6/10/16/25/35mm
Cores: 2-37 Cores
Test Voltage: 2000V
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Working Temperature: -5º C to +70º C
Insulation Resistance: 20 MΩ x km
Fire Retardant: Confirm to IEC60332-1-2, EN60332-1-2 UL VW-1+CSA FT1
Application Standard: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
►Application
Interconnection between electrical and electronic equipments, outdoor and indoor instruments
►Structure
■ Technical Data
Model Nominal Section mm2 | Conducor Class | Insulation Thickness mm | Jacket Thickness mm | Max. Ave. OD mm | Cable Weight kg/km | Conductor Max. DC resistane at 20℃ Ω/km | Min. Insu. resistance at 70℃ MΩ.km | |
Non electroplating | Electroplating | |||||||
H05VV-F 2×0,75 | 5 | 0.6 | 0.8 | 7.2 4.5×7.2 | 60.9 | 26 | 26.7 | 0,011 |
H05VV-F 2×1,0 | 5 | 0.6 | 0.8 | 7.5 4.7×7.5 | 69.1 | 19.5 | 20 | 0,010 |
H05VV-F 2×1,5 | 5 | 0.7 | 0.8 | 8.6 5.2×8.6 | 93.9 | 13.3 | 13.7 | 0.010 |
H05VV-F 2×2,5 | 5 | 0.8 | 1.0 | 10.6 | 143.2 | 7.98 | 8.21 | 0.0095 |
H05VV-F 2×4,0 | 5 | 0.8 | 1.1 | 12.1 | 195.8 | 4.95 | 5.09 | 0.0078 |
H05VV-F 3×0,75 | 5 | 0.6 | 0.8 | 7.6 | 71.9 | 26 | 26.7 | 0,011 |
H05VV-F 3×1,0 | 5 | 0.6 | 0.8 | 8.0 | 82.9 | 19.5 | 20 | 0,010 |
H05VV-F 3×1,5 | 5 | 0.7 | 0.9 | 9.4 | 117.3 | 13.3 | 13.7 | 0.010 |
H05VV-F 3×2,5 | 5 | 0.8 | 1.1 | 11.4 | 178.7 | 7.98 | 8.21 | 0.0095 |
H05VV-F 3×4,0 | 5 | 0.8 | 1.2 | 13.1 | 247.0 | 4.95 | 5.09 | 0.0078 |
H05VV-F 4×0,75 | 5 | 0.6 | 0.8 | 8.3 | 88.3 | 26 | 26.7 | 0,011 |
H05VV-F 4×1,0 | 5 | 0.6 | 0.9 | 9.0 | 105.4 | 19.5 | 20 | 0,010 |
H05VV-F 4×1,5 | 5 | 0.7 | 1.0 | 10.5 | 148.8 | 13.3 | 13.7 | 0.010 |
H05VV-F 4×2,5 | 5 | 0.8 | 1.1 | 12.5 | 220.1 | 7.98 | 8.21 | 0.0095 |
H05VV-F 4×4,0 | 5 | 0.8 | 1.2 | 14.3 | 306.9 | 4.95 | 5.09 | 0.0078 |
