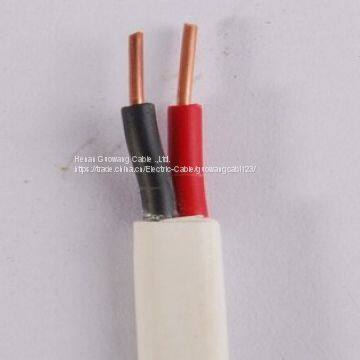

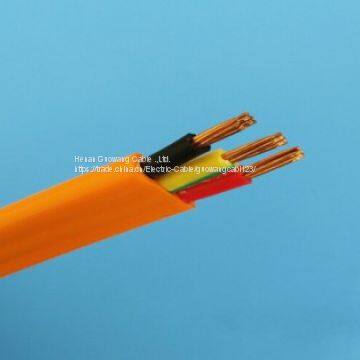

Help CenterHome Appliances Electric Wire 1*2.5MM2 Copper Conductor PVC Insulated Soft Electric Wire For Lighting
Related Products
-
Pvc Cable Flexible Stranded Annealed Copper Class 5 1 Core X 1.5 Mm2 Red Colour H07v K 450 750vUS$ 0.1 - 0.5MOQ: 100 Meters -
2.5mm Twin and Earth Cable DimensionsUS$ 0.1 - 0.5MOQ: 100 Meters
-
450/750 H07RN-F Flexible Rubber Sheathed Cable Rubber Insulation Cable 4*35MM2US$ 1 - 5MOQ: 100 Meters
-
0.6/1kv Multi Conductor Copper Control Cable 2.5mm2 16ce Xlpe Insulation 90 C Steel Wire ArmouredUS$ 1 - 5MOQ: 100 Meters
-
120mm2 Aerial Bundled Conductor Aluminum ConductorUS$ 0.1 - 0.5MOQ: 100 Meters
■ Specifications
►Construction
Conductor Material: Flexible Bare Copper/Tinned Copper
Insulation Material: PVC
Sheath Material: PVC
►Characteristics
Rated Voltage: 300/500V
Cross Section: 0.75/1.0/1.5/2/2.5/4/6/10/16/25/35mm
Cores: 2-37 Cores
Test Voltage: 2000V
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Working Temperature: -5º C to +70º C
Insulation Resistance: 20 MΩ x km
Fire Retardant: Confirm to IEC60332-1-2, EN60332-1-2 UL VW-1+CSA FT1
Application Standard: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
►Application
Interconnection between electrical and electronic equipments, outdoor and indoor instruments
►Structure
■ Technical Data
Model Nominal Section mm2 |
Conducor Class |
Insulation Thickness mm |
Jacket Thickness mm |
Max. Ave. OD mm |
Cable Weight kg/km |
Conductor Max. DC resistane at 20℃ Ω/km |
Min. Insu. resistance at 70℃ MΩ.km |
|
Non electroplating |
Electroplating |
|||||||
H05VV-F 2×0,75 |
5 |
0.6 |
0.8 |
7.2 4.5×7.2 |
60.9 |
26 |
26.7 |
0,011 |
H05VV-F 2×1,0 |
5 |
0.6 |
0.8 |
7.5 4.7×7.5 |
69.1 |
19.5 |
20 |
0,010 |
H05VV-F 2×1,5 |
5 |
0.7 |
0.8 |
8.6 5.2×8.6 |
93.9 |
13.3 |
13.7 |
0.010 |
H05VV-F 2×2,5 |
5 |
0.8 |
1.0 |
10.6 |
143.2 |
7.98 |
8.21 |
0.0095 |
H05VV-F 2×4,0 |
5 |
0.8 |
1.1 |
12.1 |
195.8 |
4.95 |
5.09 |
0.0078 |
H05VV-F 3×0,75 |
5 |
0.6 |
0.8 |
7.6 |
71.9 |
26 |
26.7 |
0,011 |
H05VV-F 3×1,0 |
5 |
0.6 |
0.8 |
8.0 |
82.9 |
19.5 |
20 |
0,010 |
H05VV-F 3×1,5 |
5 |
0.7 |
0.9 |
9.4 |
117.3 |
13.3 |
13.7 |
0.010 |
H05VV-F 3×2,5 |
5 |
0.8 |
1.1 |
11.4 |
178.7 |
7.98 |
8.21 |
0.0095 |
H05VV-F 3×4,0 |
5 |
0.8 |
1.2 |
13.1 |
247.0 |
4.95 |
5.09 |
0.0078 |
H05VV-F 4×0,75 |
5 |
0.6 |
0.8 |
8.3 |
88.3 |
26 |
26.7 |
0,011 |
H05VV-F 4×1,0 |
5 |
0.6 |
0.9 |
9.0 |
105.4 |
19.5 |
20 |
0,010 |
H05VV-F 4×1,5 |
5 |
0.7 |
1.0 |
10.5 |
148.8 |
13.3 |
13.7 |
0.010 |
H05VV-F 4×2,5 |
5 |
0.8 |
1.1 |
12.5 |
220.1 |
7.98 |
8.21 |
0.0095 |
H05VV-F 4×4,0 |
5 |
0.8 |
1.2 |
14.3 |
306.9 |
4.95 |
5.09 |
0.0078 |
