Home > Instruments & Meters > Test Instrument > Test Machine > CFTM-300D Digial Electro Hydraulic Compression Flexure Testing Machine
CFTM-300D Digial Electro Hydraulic Compression Flexure Testing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEOTEST EQUIRMENT, GEOTEST EQUIPMENTS
Model Number:
CFTM-300D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Negotiable
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CTM-300A Automatic Compression Test Machine Cement Test MachineNegotiableMOQ: 1 Set -
ITM-300 300J Charpy Pendulum Impact Testing MachineNegotiableMOQ: 1 Set
-
UTM-50T Digital Electronic Universal Tensile Testing MachineNegotiableMOQ: 1 Set
-
RSTM-30G Computer-control Ring Stiffness Testing MachineNegotiableMOQ: 1 Set
-
FTM-1000 Flexural and Compressive Test Machine ManufacturerNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
GEOTEST EQUIRMENT, GEOTEST EQUIPMENTS
Model Number
CFTM-300D
Power
Electronic
Usage
Other, Compression Testing Machine, Compresion and Flexure Testing Compression and Flexure Testing

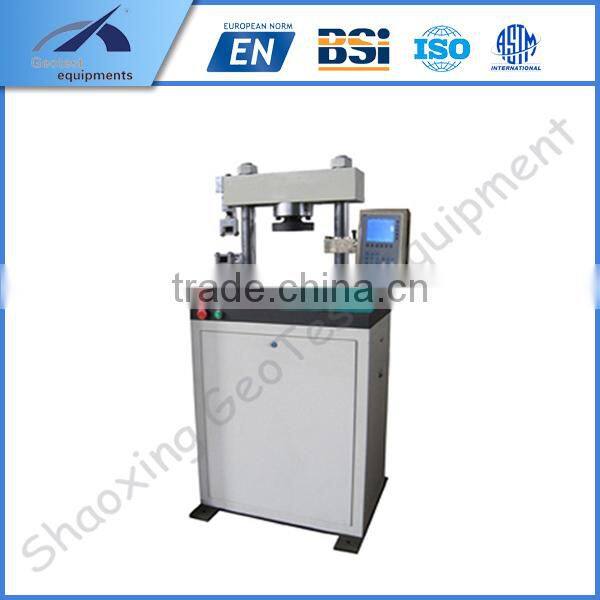

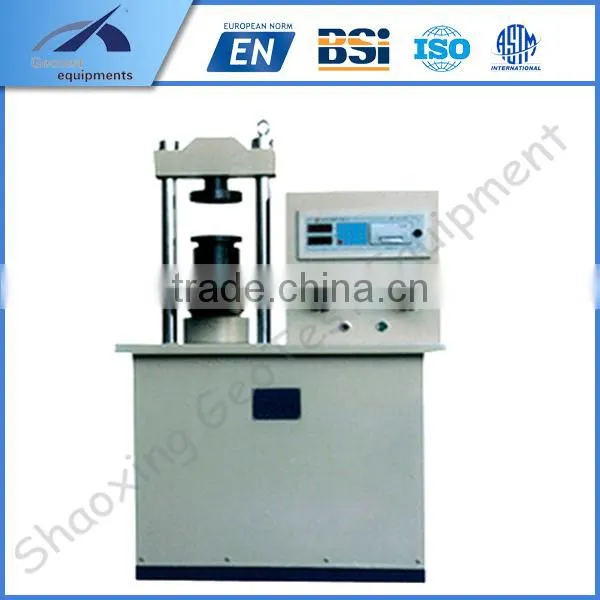

Digial electro hydraulic compression flexure testing machine
The Digial electro hydraulic compression flexure testing machine is mainly used for flexure strength test of concrete material with low strength property, and compressive strength test of cement, mortar and block brick in building materials.
It adopts electro-hydraulic loading, with load figures show that loading rates show that the maximum load to maintain, as well as overload protection, and power data retention and other functions.
Digital display, automatic print the test results.
| Product Name | Digial electro hydraulic compression flexure testing machine |
| Loading Capacity | 300kN |
| Relative indication error | ±1% |
| Rated pressure of the hydraulic pump | 25Mpa |
| Diameter of flexure test shafts | ¢30mm |
| Distance between the center points of upper and lower flexure test shafts | 165mm |
| Distance between the center points of 2 upper flexure test shafts | 150mm |
| Distance between the center points of 2 lower flexure test shafts | 450mm |
| Diameter of bearing platen | ¢155mm |
| Max. distance between upper and lower platen | 230mm |
| Max. piston stroke | 90mm |
| Diameter of piston | ¢125mm |
| Motor Power | 220V 50Hz 1ph 0.75KW |
| Dimensions | 850mm×600mm×1340mm |
| Net Weight | About 400kg |
| Delivery Time | For sample order with 5 working days for general order with 5-15working days |
| Standards | BS.EN.ASTM |
Digial electro hydraulic compression flexure testing machine
Digial electro hydraulic compression flexure testing machine
