Product Description______________________________________________
Description

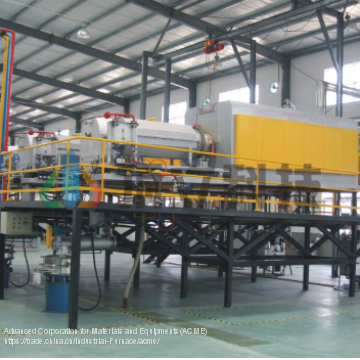

Rotary furnace is mainly used for metal salt calcination and metal oxide reduction process, such as APT calcination, blue tungsten reduction, etc.
Technical Features
1. The rotary reduction furnaces use rotary tube which will result in good powder fluidity.
2. The intermittent loading and unloading type assures good sealing performance and low gas consumption with gas recycling.
3. Full automatic loading and unloading is available, which assures stable product quality and low labor force.
4. Furnace has the functions of remote control operation, remote malfunction diagnosis and remote program update functions.
Optional Configuration of Rotary Furnace
1. Refractory material: silicate aluminum fiber/alumina ceramic fiber/high alumina brick
2. Heater material: 0Cr21Al6Nb, 0Cr27Al7Mo2
3. Tube material: SUS304/SUS310S/RA330/RA600
4. Sealing type: fill sealing/graphite+metal sealing
5. Loading type: vacuum feeding/vibration feeding/manual feeding
6. Operation panel: simulation screen/touch screen/industrial computer
7. PLC: OMRON/Siemens
8. Temperature controller: SHIMADEN/EUROTHERM
9. Thermocouple: C type/S type/N type
10. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
11. Electric components: CHINT/Schneider/Siemens
Specifications of Rotary Furnace
| SpecModel | RF-400-3 | RF-600-4 | RF-800-6 |
| Tube diameter (mm) | 400 | 600 | 800 |
| Heating zone | 4 | 5 | 6 |
| Heating chamber length (mm) | 5600 | 6500 | 8000 |
| Max.temperature (°C) | 1050 | 1050 | 1050 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Heating power (kW) | 140 | 250 | 360 |
| Process gas of rotary reduction furnaces | Ar/N2/H2/NH3 | Ar/N2/H2/NH3 | Ar/N2/H2/NH3 |
| Total size L×W×H (mm) | 12000 × 4000 × 4000 | 14000 × 5000 × 4500 | 16500 × 5500 × 4500 |
| The above specifications are defined according to tungsten powder reduction process. These specifications can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements. | |||
Company information______________________________________________
Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy. With an area of 100,000 m2 ,our annual production is over 200 sets.
Customer Experience Center_______________________________________
ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipment relability and practicality.
Customers visiting ACME__________________________________________
ACME has NO.1 maket share on special heating equipment ,sells to USA, Europe, Russia, Japan, Canada, New Zealand, Middle East, South America, Africa, South Asia and etc.areas and countries.
ACME in exhibitions__________________________________________
Why ACME?______________________________________________________
1.We are the manufacturer not a trade company! Warmly welcome to visit us in Changsha, China!
2.Our equipments are customized! Tell us your requirments and we can meet your needs !
3.ACME had gained Quality ,Environment and Occupation Health certificates of ISO 9001, ISO 14001 and ISO 18000.
/
