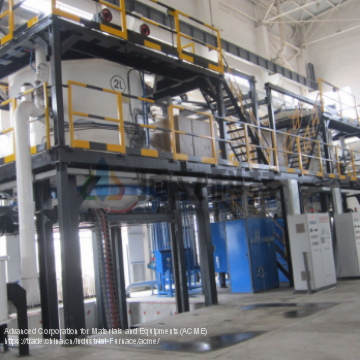

Vertical Chemical Vapor Deposition Furnace(Carbon)

Product Description______________________________________________

Description
Vertical CVD furnace (Carbon) is used for composite material CVD that used hydrocarbon gas (like C3H8) as carbon sources. It works on CVD and CVI treatment for carbon materials.

Technical Features
1. Using different temperature control zones according to the working zone size, assuring great temperature uniformity.
2. The most advance control technology is adopted to control flow and pressure of MTS, realizing stable deposition airflow and small pressure fluctuation range.
3. The newly designed anti-corrosion vacuum unit ensures long continuous working period and low maintainence rate.
4. The vertical vacuum carbon tube furnace uses special designed deposition chamber, which assures good sealing effect and great contamination protection performance.
5. Multiple deposition channels assure flow field uniformity, non-deposition dead corner and great deposition surface.
6. High corrosive tail gas, combustible and explosion gas, solid dust and low melting point product can be treated effectively in the process of deposition.

Optional Configuration of Vertical CVD Furnace
1. Furnace door: screw elevation type/hydraulic elevation type/manual elevation, Manual tight/Auto lock-ring tight
2. Furnace vessel: All carbon steel/Inner layer stainless steel/Total stainless steel
3. Furnace hot zone: Soft carbon felt/Soft graphite felt/Hard composite felt /CFC
4. Heating element and muffle: Isostatic press graphite/Press high purity, high strength and high density graphite/ fine size graphite
5. Process gas system: Volume/Mass flow-meter, Manual valve/Auto valve, Foreign brand/Chinese brand
6. Vacuum pump and gauge: Foreign brand/Chinese brand
7. HMI: Simulation screen/Touch screen/Industrial personal computer
8. PLC: OMRON/Siemens
9. Temperature controller: SHIMADEN/EUROTHERM
10. Thermocouple: C type, S type, R type, B type
11. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
12. Electric components: CHINT/Schneider/Siemens

Specifications of Vertical CVD Furnace

Company information______________________________________________

Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy.  With an area of 100,000 m2 ,our annual production is over 200 sets.

Customer Experience Center_______________________________________

ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipment relability and practicality.

Customers visiting ACME__________________________________________

ACME  has NO.1 maket share on special heating equipment ,sells to USA, Europe, Russia, Japan, Canada, New Zealand, Middle East, South America, Africa, South Asia and etc.areas and countries.

ACME in exhibitions__________________________________________

Why ACME?______________________________________________________

1.We are the manufacturer not a trade company! Warmly welcome to visit us in Changsha, China!

2.Our equipments are customized! Tell us your requirments and we can meet your needs !

3.ACME had gained Quality ,Environment and Occupation Health certificates of ISO 9001, ISO 14001 and ISO 18000.

/
