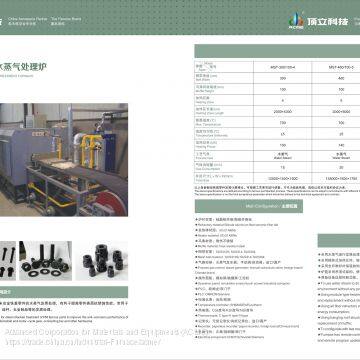

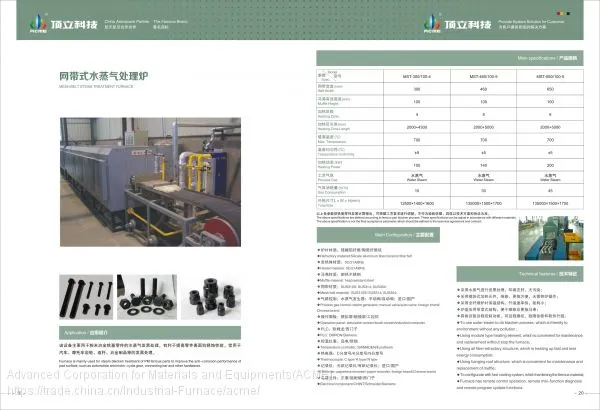

Help CenterMesh Belt Steam Treatment Furnace
Related Products
-
Automatic Carburizing FurnaceUS$ 3000000 - 3000000MOQ: 1 Set -
Pusher Type FurnaceUS$ 3000000 - 3000000MOQ: 1 Set
-
Multi-Tube FurnaceUS$ 3000000 - 3000000MOQ: 1 Set
-
Rotary FurnaceUS$ 3000000 - 3000000MOQ: 1 Set
-
Metal Injection Molding (MIM) Debinding and Sintering FurnaceUS$ 800000 - 5000000MOQ: 1 Set
Description

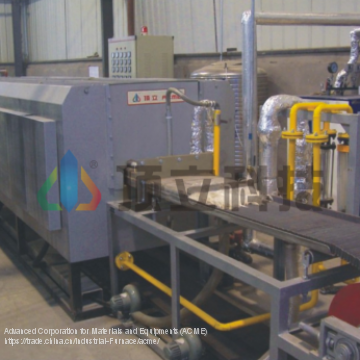

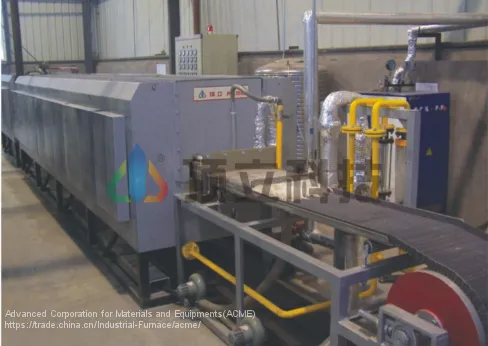

Mesh belt steam treatment furnace is mainly applied for steam blacken treatment of powder metallurgy ferrous parts to improve the anti-corrosion performance of part surface, such as automobile and motor-cycle gear, connecting bar and other hardware.
Technical Features
1. Steam treat furnaces take advantage of steam to do blacken process, which is friendly to environment without any pollution.
2. Module type heating element is used , which is convenient for maintenance and replacement without stop the furnace.
3. All fiber refractory structure guarantees faster heating rate and less energy consumption.
4. Mesh belt sintering furnace uses hanging roof structure, which is convenient for maintenance and replacement of muffle.
5. It has functions of remote control operation, remote malfunction diagnosis and remote program update functions.
Optional Configuration of Mesh Belt Steam Treatment Furnace
1. Refractory material: silicate aluminum fiber/ceramic fiber felt
2. Heater material: 0Cr21Al6Nb
3. Muffle material: heat resistance steel
4. Mesh belt materiel: SUS310S, SUS314, SUS304
5. Process gas control: Volume/mass flow-meter, manual value/auto value, Foreign brand/Chinese brand
6. Operation panel: simulation screen/touch screen/industrial computer
7. PLC: OMRON/Siemens
8. Temperature controller: SHIMADEN/EUROTHERM
9. Thermocouple: C type/K type/N type
10. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
11. Electric components: CHINT/Schneider/Siemens
Specifications of Mesh Belt Steam Treatment Furnace
| SpecModel | MST-300/100-4 | MST-460/100-5 | MST-650/100-5 |
| Belt (mm) | 300 | 460 | 650 |
| Muffle (mm) | 100 | 100 | 100 |
| Heating zone | 4 | 5 | 6 |
| Heating zone length (mm) | 2000+4300 | 2000+5000 | 2000+5000 |
| Max.temperature (°C) | 700 | 700 | 700 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Heating Power (kW) | 100 | 140 | 200 |
| Process gas of steam treat furnaces | Water steam | Water steam | Water steam |
| Gas consumption (m³/h) | 15 | 30 | 45 |
| Total size L×W×H (mm) | 12500 × 1400 × 1600 | 135000 × 1500 × 1700 | 135000 × 1500 × 1700 |
| The above specifications are defined according to ferrous part blacken process. The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements. | |||
