Product Description______________________________________________
Description

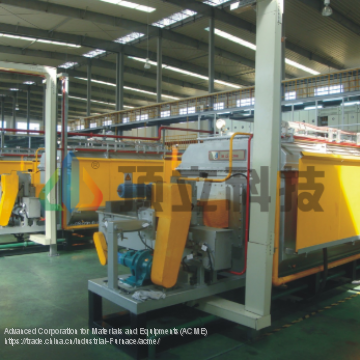

Automatic carburizing furnace is mainly used for carburizing of tungsten powder, reduction of metal powders, sintering of tungsten copper alloy and sintering of tungsten and moly heavy alloy.
Technical Features
1. The furnace uses special designed moly heating component, which features high temperature and long service life.
2. The intermittent loading and unloading type assures good sealing performance and low gas consumption.
3. Automatic carburizing tube furnace is configured with full automatic boat charging, boat pushing, unloading and boat dumping service, which ensures stable quality and low labor force.
4. Furnace has the functions of remote control operation, remote malfunction diagnosis and remote program update functions.
Optional Configuration of Automatic Carburizing Furnace
1. Refractory material: alumina brick/silicate aluminum fiber/ceramic fiber felt
2. Heater material: high temperature moly doped with La alloy
3. Muffle material: aluminum oxide ceramics
4. Process gas control: Volume/mass flow-meter, manual value/auto value, Foreign brand/Chinese brand
5. Operation panel: simulation screen/touch screen/industrial computer
6. PLC: OMRON/Siemens
7. Temperature controller: SHIMADEN/EUROTHERM
8. Thermocouple: C type(tungsten sheath/Moly sheath/ceramic sheath)
9. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
10. Electric components: CHINT/Schneider/Siemens
Specification of Automatic Carburizing Furnace
| SpecModel | AMH-150/230-3 | AMH-300/160-3 | AMH-300/230-6 |
| Muffle size (W×H) (mm) | 150 × 230 | 300 × 160 | 300 × 230 |
| Heating zone of automatic carburizing tube furnace | 3 | 3 | 6 |
| Heating chamber length | 3200 | 3200 | 6400 |
| Max.temperature (°C) | 1600 | 1600 | 1600 |
| Temperature uniformity(°C) | ±5 | ±5 | ±5 |
| Heating power (kW) | 120 | 150 | 360 |
| Process gas | N2/3H2+N2/H2/Ar | N2/3H2+N2/H2/Ar | N2/3H2+N2/H2/Ar |
| The above specifications are defied according to tungsten powder carburizing process. These specifications can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements. | |||
Company information______________________________________________
Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy. With an area of 100,000 m2 ,our annual production is over 200 sets.
Customer Experience Center_______________________________________
ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipment relability and practicality.
Customers visiting ACME__________________________________________
ACME has NO.1 maket share on special heating equipment ,sells to USA, Europe, Russia, Japan, Canada, New Zealand, Middle East, South America, Africa, South Asia and etc.areas and countries.
ACME in exhibitions__________________________________________
Why ACME?______________________________________________________
1.We are the manufacturer not a trade company! Warmly welcome to visit us in Changsha, China!
2.Our equipments are customized! Tell us your requirments and we can meet your needs !
3.ACME had gained Quality ,Environment and Occupation Health certificates of ISO 9001, ISO 14001 and ISO 18000.
/
