Product Description______________________________________________
Description

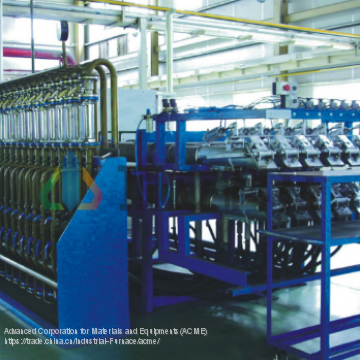

Multi-tube furnace is mainly used for metal powder (like tungsten, moly, etc) reduction.
Technical Features
1. Multiple tube heating guarantees good temperature uniformity and large production capacity.
2. Round tube assures less deformation and smooth loading and unloading.
3. The intermittent loading and unloading type assures good sealing performance and low gas consumption with gas recycling.
4. Pusher furnaces are configured with full automatic boat charging, boat pushing, unloading and boat dumping service, which ensures stable quality and low labor force.
5. Multi-tube reduction furnaces have the functions of remote control operation, remote malfunction diagnosis and remote program update functions.
Optional Configuration of Multi-tube Furnace
1. Refractory material: silicate aluminum fiber/alumina ceramic fiber/high alumina brick
2. Heater material: 0Cr21Al6Nb, 0Cr27Al7Mo2
3. Muffle material: SUS304/SUS310S/RA330/RA600/ZG45Cr28Ni48W5Si2
4. Pusher type: pneumatic/hydraulic/mechanical
5. Loading and unloading: automatic loading and unloading/manual loading and unloading with automatic boat push
6. PLC: OMRON/Siemens
7. Temperature controller: SHIMADEN/EUROTHERM
8. Thermocouple: C type/S type/N type
9. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
10. Operation panel: simulation screen/touch screen/industrial computer
11. Electric components: CHINT/Schneider/Siemens
Specifications of Multi-tube Furnace
| SpecModel | MT-140-14-12 | MT-140-15-12 | MT-140-18-12 |
| Muffle inner diameter (mm) | 140 | 140 | 140 |
| Muffle number | 14 | 15 | 18 |
| Heating zone of multi-tube reduction furnaces | 6 belt 12 zone | 6 belt 12 zone | 6 belt 12 zone |
| Heating chamber length(mm) | 8300 | 8300 | 8300 |
| Max.temperature (°C) | 1100 | 1100 | 1100 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 |
| Heating power (kW) | 480 | 580 | 700 |
| Process gas | Ar/N2/H2 | Ar/N2/H2 | Ar/N2/H2 |
| Total size L×W×H (mm) | 17500 × 3800 × 2500 | 17500 × 3800 × 2500 | 18000 × 3800 × 2500 |
| The above specifications are defined according to tungsten powder reduction process. These specifications can be adjusted in accordance with different materials. The above specifications is not the final acceptance parameter which should be defined in the technical agreement and contract. | |||
Company information______________________________________________
Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy. With an area of 100,000 m2 ,our annual production is over 200 sets.
Customer Experience Center_______________________________________
ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipment relability and practicality.
Customers visiting ACME__________________________________________
ACME has NO.1 maket share on special heating equipment ,sells to USA, Europe, Russia, Japan, Canada, New Zealand, Middle East, South America, Africa, South Asia and etc.areas and countries.
ACME in exhibitions__________________________________________
Why ACME?______________________________________________________
1.We are the manufacturer not a trade company! Warmly welcome to visit us in Changsha, China!
2.Our equipments are customized! Tell us your requirments and we can meet your needs !
3.ACME had gained Quality ,Environment and Occupation Health certificates of ISO 9001, ISO 14001 and ISO 18000.
/
