1. Description:
Copper conductor, PVC or XLPE insulated, PVC or PE sheathed power cable with Stainless steel wire armored, voltage: 0.6/1KV
2. Applications:
These cables are generally suitable for direct burial or for installation on trays or ducts.

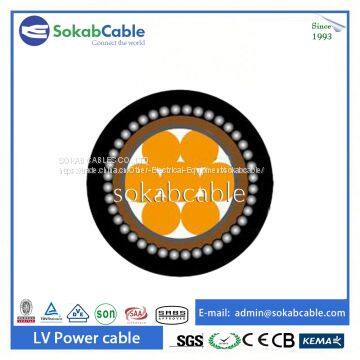

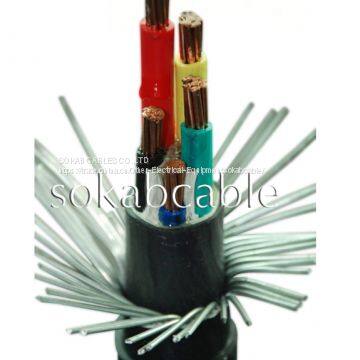

3. Construction
Copper conductor | Plain circular, compact or shaped stranded copper conductor, conform to IEC 60228, Class2 |
Insulation material | PVC rated at 90 ℃ or XLPE |
Bending | PVC |
Armour | Aluminum wire armored |
Sheath | PVC type ST2 to IEC 60502 black. or PE |
4. Standard:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, AS/NZS, UL upon request
5. Technical data:
Rated voltage: 0.6/1KV
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15x cable O.D for single core
12 x cable O.D for multi core
6. Certificates:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, AS/NZS, UL upon request
