1. Description:

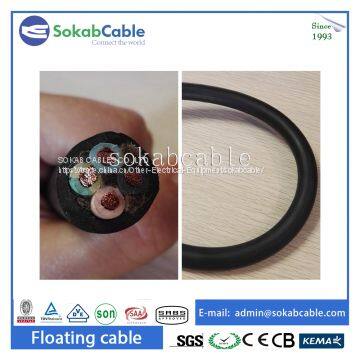

Flexible copper conductor, Ethylene Propylene Rubber insulation, ethylene-propylene rubber(EPR) sheathed movable rubber cable, Rated voltage 300/500V, it can withstand some mechanical external force.
2. Applications:
These cables are suitable for household appliances, electric tools and all kinds of electrical equipment, with rated AC voltage 300/500V, and below, Certified to BS 7919, HD22.4,DIN VDE 0282, AS/NZS 3191, CIEC60245 standard
3. Construction
Copper conductor | Class 5 flexible plain copper to BS EN 60228 Standard |
Insulation material | ERP(Ethylene propylene rubber) to BS 7655 |
Sheath material | ERP(Ethylene propylene rubber) to BS 7655 |
4. Standard:
BS 7919, HD22.4,DIN VDE 0282, AS/NZS 3191, CIEC60245 other standard upon request
5. Technical data:
The long-term working temperature of conductor should be no longer than 65*
Maximum permitted operating temperature of conductor is 60°C.
Permitted lowest working temperature is -35°C
Min. Bending Radius
6 x OD if Overall diameter D>25mm
4xOD if overall diameter D>25mm
Core Identification:
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
6. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
