1. Description:

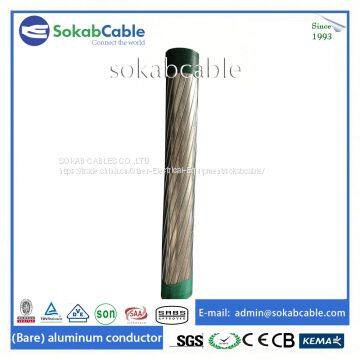

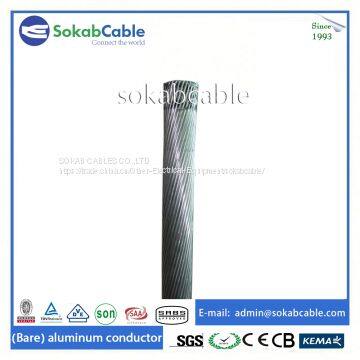

all aluminum stranded conductor, aac cable ,overhead bare aluminum twisted
2. Applications:
AAC conductor is used in overhead electric power transmission and distribution lines with various grade voltage
3. Construction

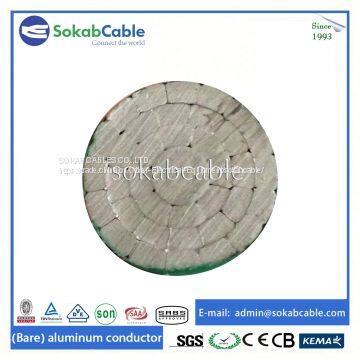

Construction: | AAC conductor is composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires |
Features and Benefits of A | AAC Conductor is widely used in power transmission lines with various voltage levels, since they thave such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist. |
4. Standard:
IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204, EN50182
other standard such as: AS/NZS, UL upon request
5. Advantages:
a. Excellent electric and mechanical characteristics.
b. Good conductivity, Resistance chemical corrosion and heat-aging,environment stress.
c. Unit volume light, Simple in structure.
d. Convenient to use, especially for laying across
6. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
