1. Description:
See below detail description of the construction, Flame retardant, fire resistance, low smoke zero halogen available.
2. Applications:
These cables are suitable for the interconnection between power distribution unit, widely used in controlling signaling protecting and measuring system

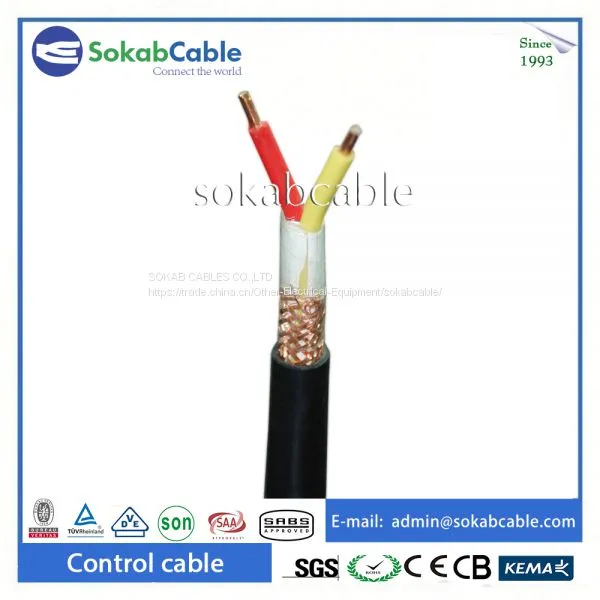

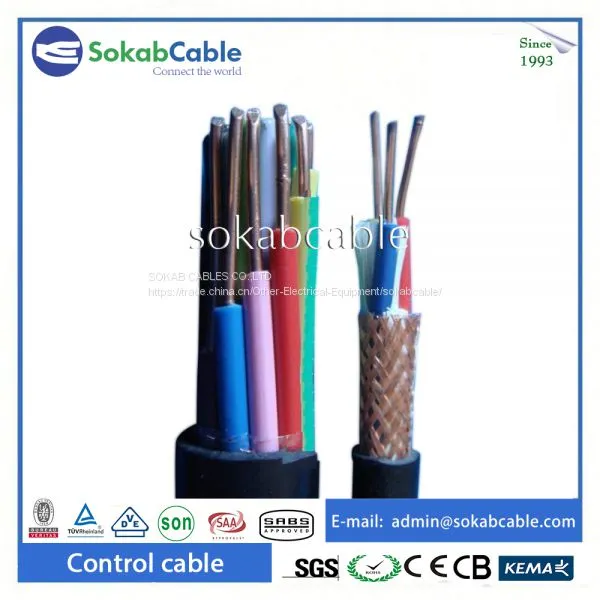

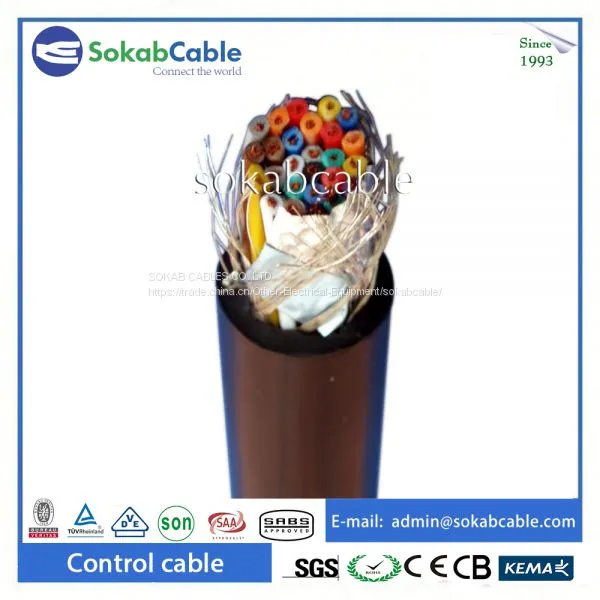

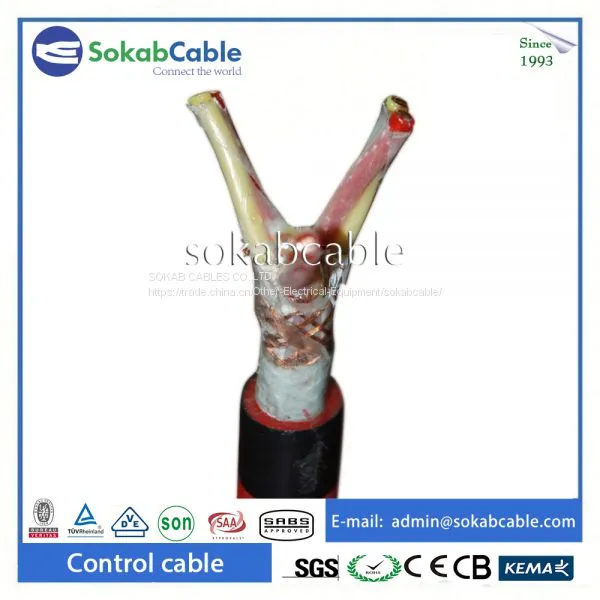

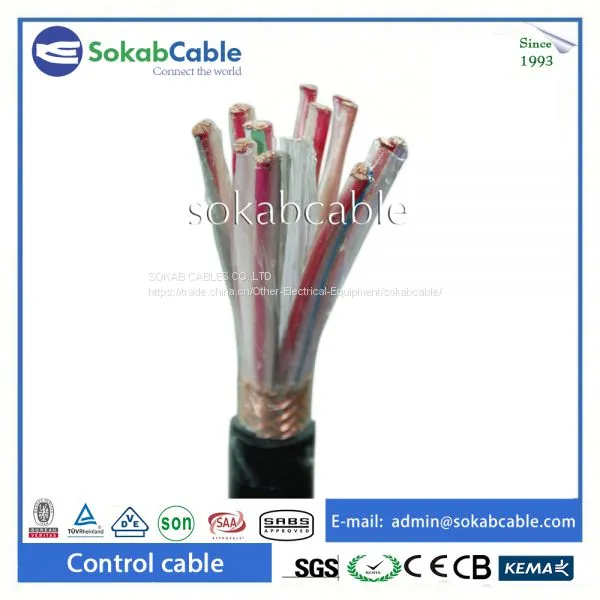

3. Construction
Copper conductor | Copper conductor |
Insulation | PVC insulation |
Screen | Copper wire braided |
Sheath | PVC outer sheath or PE |
4. Standard:
IEC60502, IEC60332 , other standard such as: BS, DIN, AS/NZS, UL upon request
5. Technical data:
Rated voltage: 450/750V, 0.6/1kv
Max. Operating Temp of Conductor: under normal 70℃, emergency ( 105℃), short circuit no more than 5s (160℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 12x cable O.D for single core
6. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
7. Core Identification:
Black core with white numbering. OEM Color available, Green/ Yellow earthing core upon request
