1. Description:

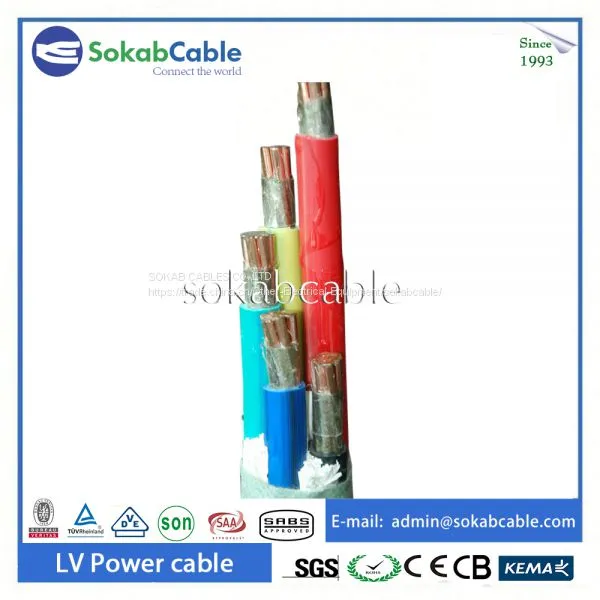

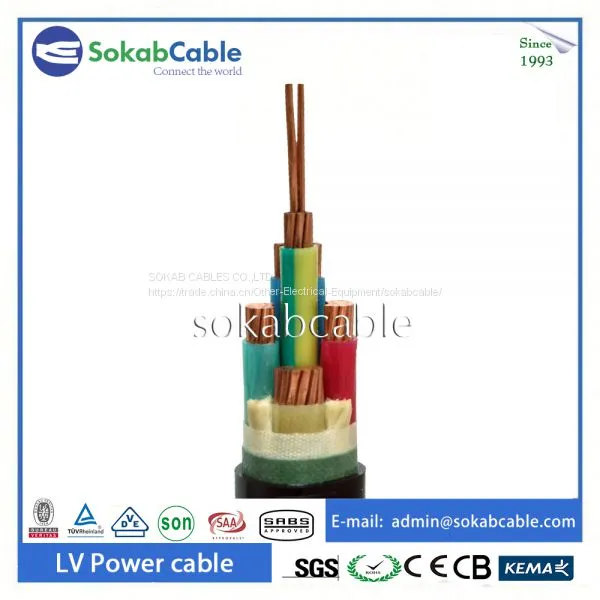

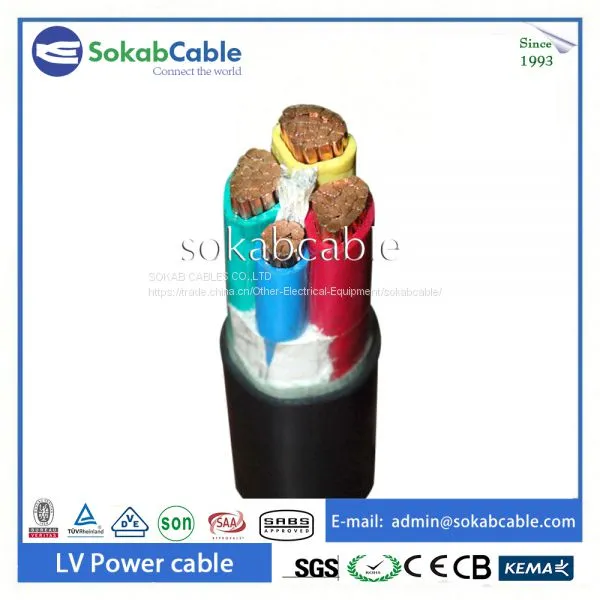

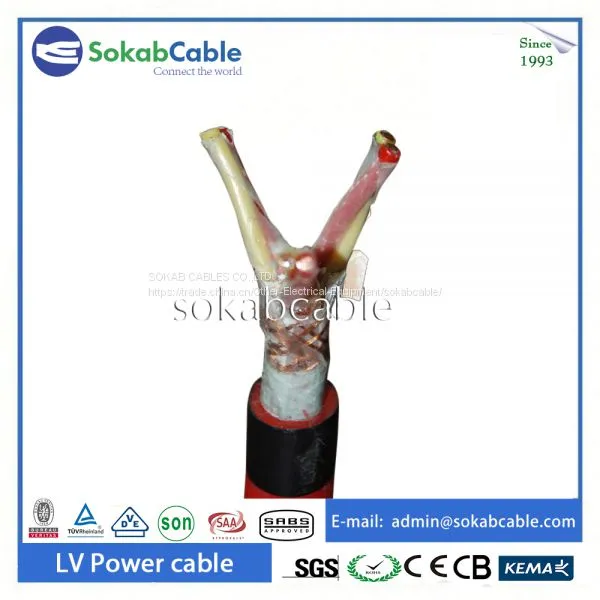

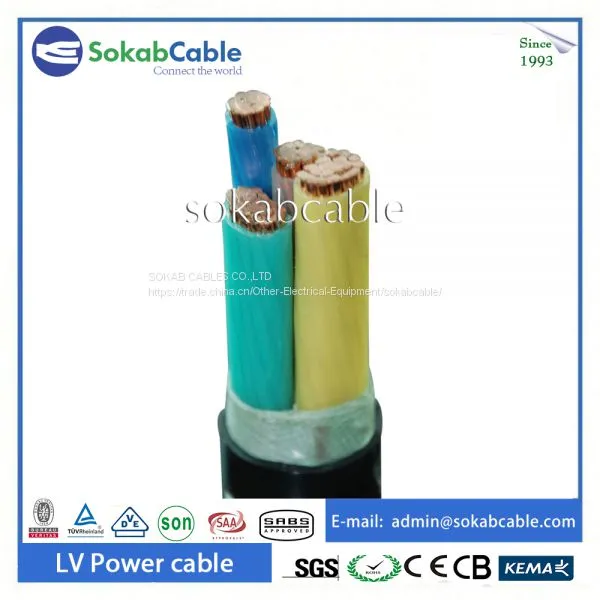

Copper conductor, PVC insulated, PVC sheathed power cable, Unarmored, voltage: 0.6/1KV
2. Applications:
These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage
3. Construction
Copper conductor | Plain circular, compact or shaped stranded copper or aluminum conductor, conform to IEC 60228, Class2 |
Insulation material | PVC rated from 70℃ to 90 ℃ |
Sheath material | PVC or FR-PVC type ST2 to IEC 60502 black. |
4. Standard:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, AS/NZS, UL upon request
5. Technical data:
Rated voltage: 0.6/1KV
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
6. Certificates:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, AS/NZS, UL upon request
