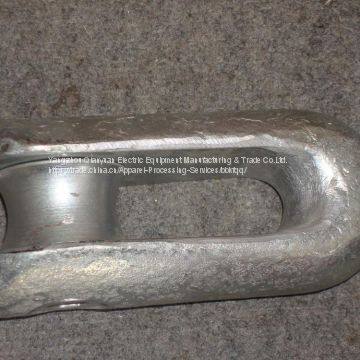

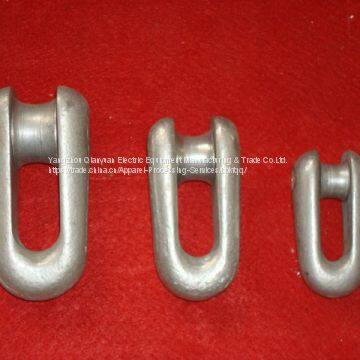

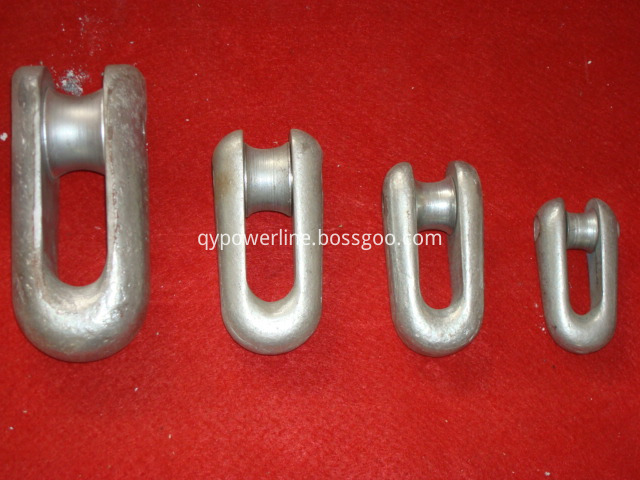

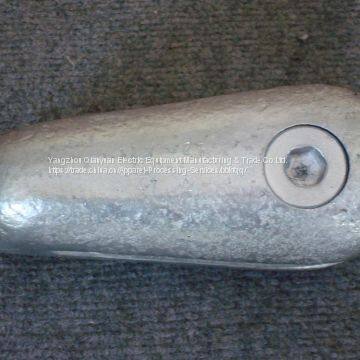

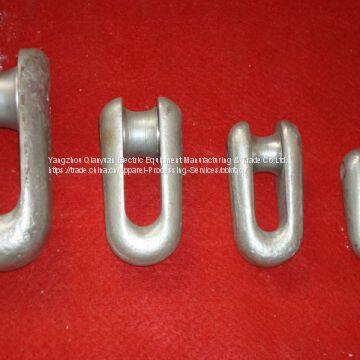

Electric Power Line Fixed Joint

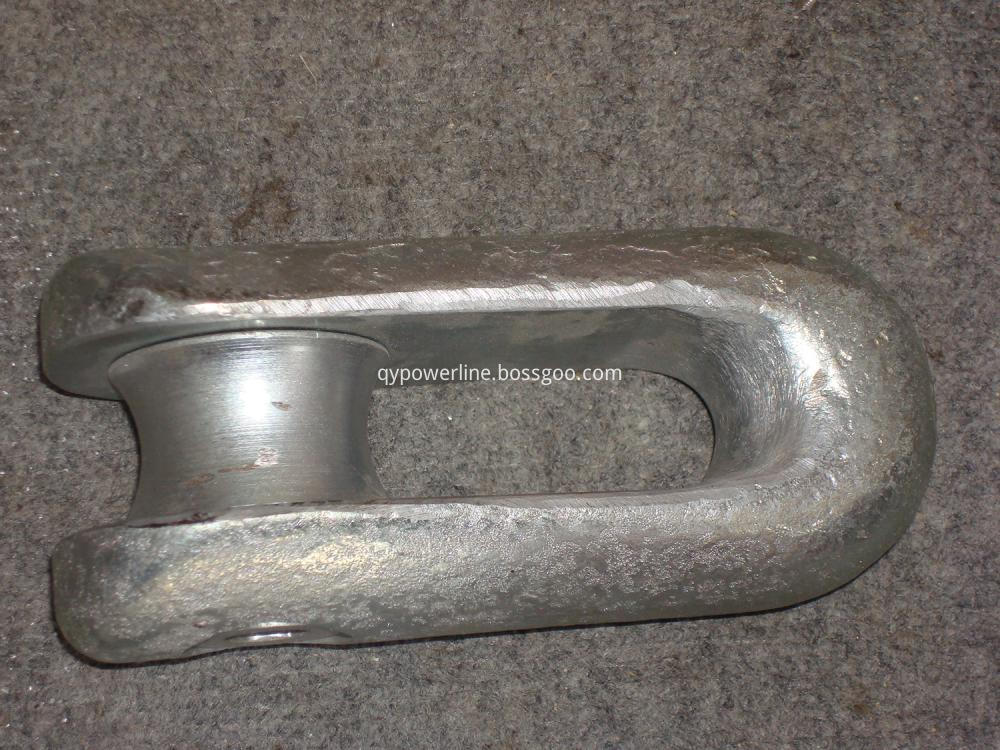

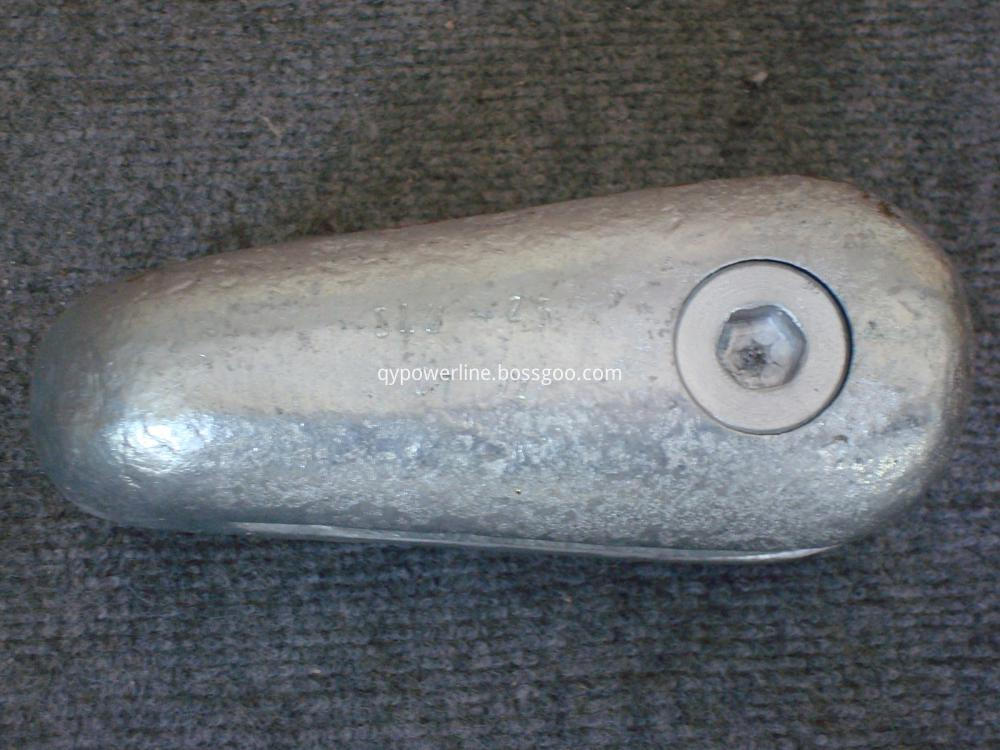

The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel.used to connect pilot wire rope or pulling rope and pass over wheel on the pulley .

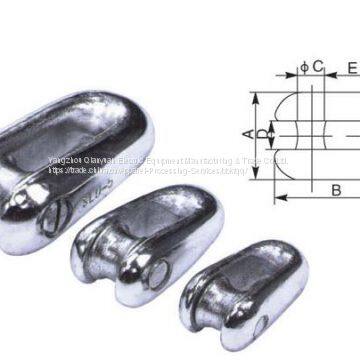

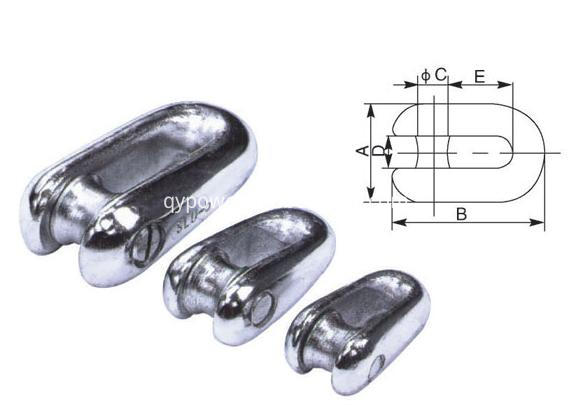

1.High tensile galvanized steel Stringing Equipment Fixed Joint Product No. Model Main Size (mm) Rated Load (KN) Weight (KG) A B C D E 10282 XZ-10 36 68 18 14 29 10 0.22 10283 XZ-30 37 76 20 17 31 30 0.27 10284 XZ-50 48 96 23 19 42 50 0.69 10285 XZ-80 56 110 28 24 50 80 0.96 10286 XZ-100 59 126 30 26 54 100 1.20 10287 XZ-130 61 134 32 27 56 130 1.30 10288 XZ-150 63 138 37 27 58 150 1.40 10289 XZ-180 70 138 37 28 58 180 2.40 10290 XZ-250 80 178 44 35 72 250 3.82 10291 XZ-320 85 186 46 38 80 320 3.92
2.Rated load: 10~320kN
3.Weight: 0.2~3.9kgs
4.Connector for stringing rope
