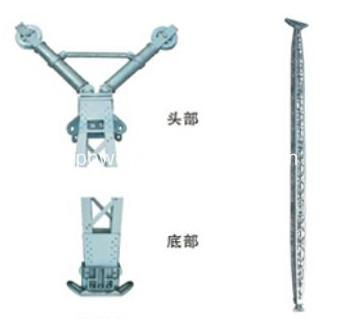

Aluminum Alloy Grid Inner Suspension Gin Pole
Application
Aluminum alloy inner suspended lattice gin pole from 11m to 24m is used to assemble and erect the tower and pole in transmission and distribution construction.
Notes
1.Use high strength angle aluminum alloy as main materials, steel parts are galvanized.
2.Including 2 sets waist loop.
3.The safety factor is 2.5.
Technical Data
| Product No. | Model | Length | Cross Section (mm) | Rated Load(KN) | Safe Coefficient(K) | Weight(kg/m) |
| 10350 | B11-300 | 11 | 300 | 29 | 2.5 | 11.5 |
| 10351 | B13-300 | 13 | 22 | |||
| 10352 | B15-300 | 15 | 16 | |||
| 10353 | B13-350 | 13 | 350 | 30 | 2.5 | 14 |
| 10354 | B15-350 | 15 | 21 | |||
| 10355 | B18-350 | 18 | 15 | |||
| 10356 | B15-400 | 15 | 400 | 28 | 2.5 | 15.5 |
| 10357 | B18-400 | 18 | 19 | |||
| 10358 | B20-400 | 20 | 14 | |||
| 10359 | B15-500 | 15 | 500 | 70 | 2.5 | 19 |
| 10360 | B18-500 | 18 | 50 | |||
| 10361 | B20-500 | 20 | 41 | |||
| 10362 | B18-600 | 18 | 600 | 112 | 2.5 | 22 |
| 10363 | B20-600 | 20 | 95 | |||
| 10364 | B22-600 | 22 | 76 | |||
| 10365 | B24-600 | 24 | 35 | 24 |
