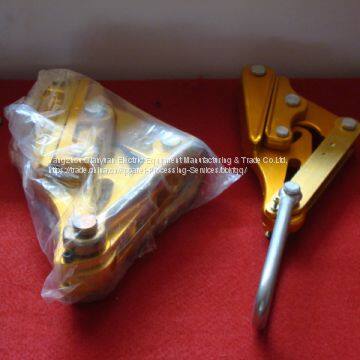

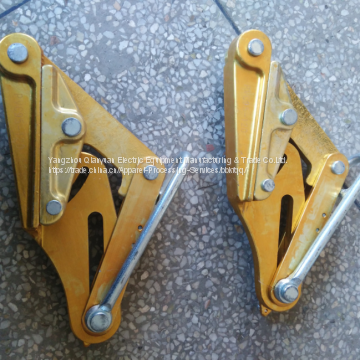

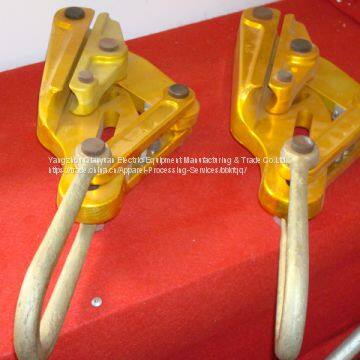

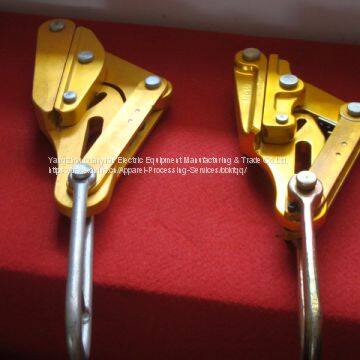

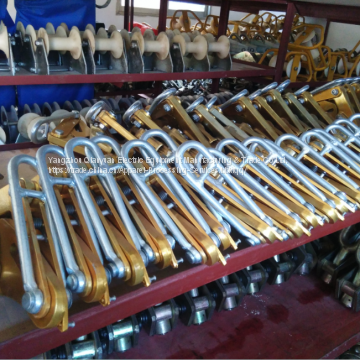

Aluminum Alloy Conductor Wire Grip
Use and Characteristic
Aluminum ACSR Cable Grip,ACSR Come Along Clamp is suitable to tighten the Insulated conductors or adjust of sag.With high stength aluminum titanium alloy forging, the weight is light.The jaw part adopts a special texture processing so that it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Technical Data
| Product No. | Model | Applicable conductor ACSR(mm²) | Max Gap (mm) | Rated Load KN | Limit load KN | Weight kg |
| 10229 | LHD--1 | 25-70 | 14 | 10 | 20 | 1.5 |
| 10230 | LHD--2 | 95-120 | 18 | 15 | 30 | 2.1 |
| 10231 | LHD--3 | 150-240 | 24 | 25 | 50 | 2.5 |
| 10232 | LHD--4 | 300-400 | 32 | 40 | 80 | 4.3 |
| 10233 | LHD--5 | 500 | 34 | 45 | 90 | 6.5 |
| 10234 | LHD--6 | 630 | 36 | 50 | 90 | 6.5 |
| 10235 | LHD--7 | 720 | 38 | 60 | 110 | 9.2 |
