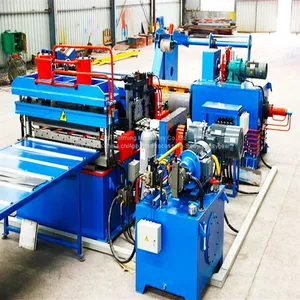

Basic Parameters of 3×650 mm steel coil slitting machine
1.Thickness: 0.5-3.0mm(σs≤245Mpa,σb≤450Mpa)
0.4-2.0mm(σs≤400Mpa,σb≤600Mpa)
2.Width: 100-650mm
3.Coil ID: ф400-ф508mm
4.Coil OD: ≤Ф1800 mm
5.Coil Weight: ≤6T
6.Mini slitting width 25㎜
7.Max Slitting Quantity 8 Pieces(2.0mm≤Thickness≤3.0mm)
12 Pieces(Thickness≤2.0mm)
8.Max Slitting Speed: 120 m/min
9. Recoil ID: ф508mm
10. Recoil Weight: ≤6T
11. Power: around 160kw
11. Machine working direction: From left to right(Facing to operation stage)
3×650 mm steel coil slitting machine Machine Components
1. Coil car(Two sets)
2. Decoiler
3. Coil guide device
4. Leveling and traction device:
5. Cutter
6. Swing bridge (Loop)1:
7. Slitting Machine:
8.Waste edge rewinder(two sets):
9.Swing bridge (Loop)2:
10.Pre-divide device
11.Tensive device:
12. Recoiler
13. Turning supporter:
14.Hydraulic system:
15. Lubrication system
16. Electric system
Packing and shipping about the 4×1645mm steel coil slitting line machines
About our maxmach group
