4×1550 mm Steel Slitter Machine

4×1550 mm steel slitter machine slitting line can decoil, slit and recoil big steel coils as required width standards.

4×1550 mm steel slitter machine slitting line parameter(For reference)
1.1 Steel coil parameters
1.Raw material: Hot or cold rolled steel,galvanized steel coil,
2.Raw material strength: σs≤235Mpa σb≤500Mpa
3.Raw material thickness: 0.3~4.0mm
4.Coil width: 700~1500mm
5.Suitable coil ID: Φ508/Φ610/Φ762
6.Suitable coil OD: Φ1200~Φ1850mm
7.Coil loading capacity: max 30 T
1.2 Finished products parameters
1.Slitting pieces numbers: 0.2mm≤t≤4.0mm, max10 pieces
2.Minimum slitting width: ≥27mm
3.Slitting width tolerance: ≤±0.1mm
4.Recoiling ID: Φ508mm
5.Recoiling OD: ≤Φ1850mm
1.3 4×1550 mm steel slitter machine slitting line Other parameters
1.Slitting speed: ≤60m/min
2.Slitting mode: Dynamic shear, tension shear
3.Electric source: 380V/50HZ Three phases five wires system
4.Total power: 200kw
5.Driving motor:
Five rolls leveling machine: DC adjustable speed motor DC22kw
Slitting machine: DC adjustable speed motor DC55kw
Recoiling machine: DC adjustable speed motor DC75kw
6.Floor space: Length32m x Width9.5m
7.Working direction: From left to right(Facing line on the operation table side)
8.Operator numbers: One technical workers, two common workers
9.Equipment color: As the request of customer
4×1550 mm steel slitter machine slitting line summarize and configuration
1.Coil car(Include installing base) 1suit
2.Hydraulic decoiler 1suit
3.Coil head straightening and leading equipment 1suit
4.Material drawing and five rolls leveling machine 1set
5.Coil head cutting machine 1set
6.Loop 2 sets
7.Guiding equipment 1set
8.Slitting machine 1set
9.Slitter edge winding machine 2sets
10.Tension control table 1set
11.Recoiling machine(include supporting arm, distributor) 1suit
12.Unloading coil car 1set
13.Hydraulic and lubricating system 1suit
14.Electrical system 1suit
4×1550 mm steel slitter machine slitting line Technical procedure
Loading→ Decoiling→ Leveling→ Coil head shearing→ Loop→ Guiding→ Slitting→ Loop→ Tension control→ Recoiling→ Getting off line

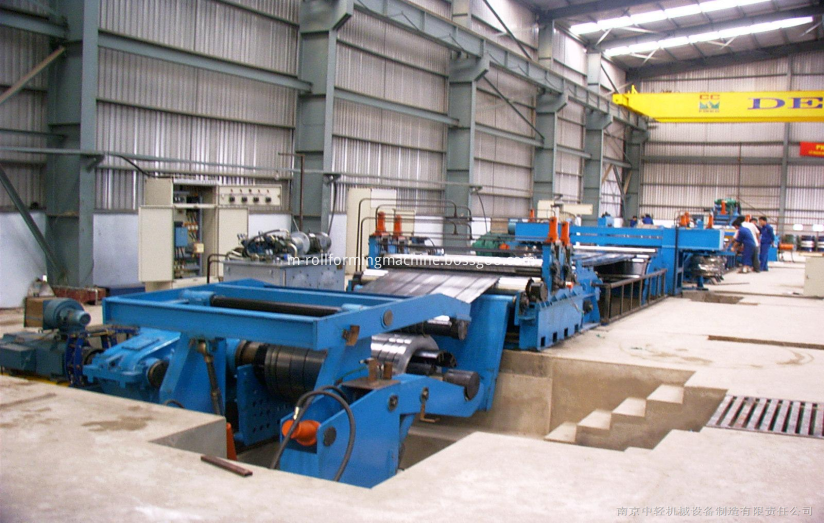

Whole 4×1550 mm steel slitter machine slitting line show
