0.4-2.5×1250mm Sheet Metal Slitting Machine

Basic Parameters of 0.4-2.5×1250mm sheet metal slitting machine
1.Material: Q235A(σs≤245MPa,σb≤450MPa)
2.Thickness: 0.4~2.5 mm
3.Width: 600~1250 mm
4.Coil ID: ф508mm/ф610mm
Coil OD: ≤Ф1600 mm
Coil Weight: ≤15 T
5.Mini slitting width 100㎜
6.Max Slitting Quantity 10 Pieces(Including 2 pieces of waste edge)
7. Width tolerance: ±0.15mm
8.Max Recoiling Speed: 40 m/min
9.Power: Around 85kw
10.Machine dimension: around 31×8.5×2.5 m
11.Machine working direction: From left to right
0.4-2.5×1250mm sheet metal slitting machine Machine Components
1.Coil Storing Stage: 1 set
2. Coil car(Two sets)
Main Parameters:
Loading weight 15t
Moving speed 5 m/min
Motor Power 1.1KW
3. Hydraulic expanding decoiler: Load the coil and expand the coil core, active decoiler and recoil the coil
4. Coil guide device: It can help guide the coil head, prevent the coil head from being falling off
5. Rectify device:
6. Leveling and traction device:
7. Cutter
8. Swing bridge 1:
9. Slitting Machine:
10. Waste edge recoiler:
11. Swing bridge 2:
12. Pre-divide device
13. Damping device:
14. Dividing and pressing device
15. Recoiler
Main parameters:
Recoiler loading weight 15 t
Core axle expanding space 25mm(ф483-ф508)
Drive motor power ≈DC45 kw
16. Hydraulic system:

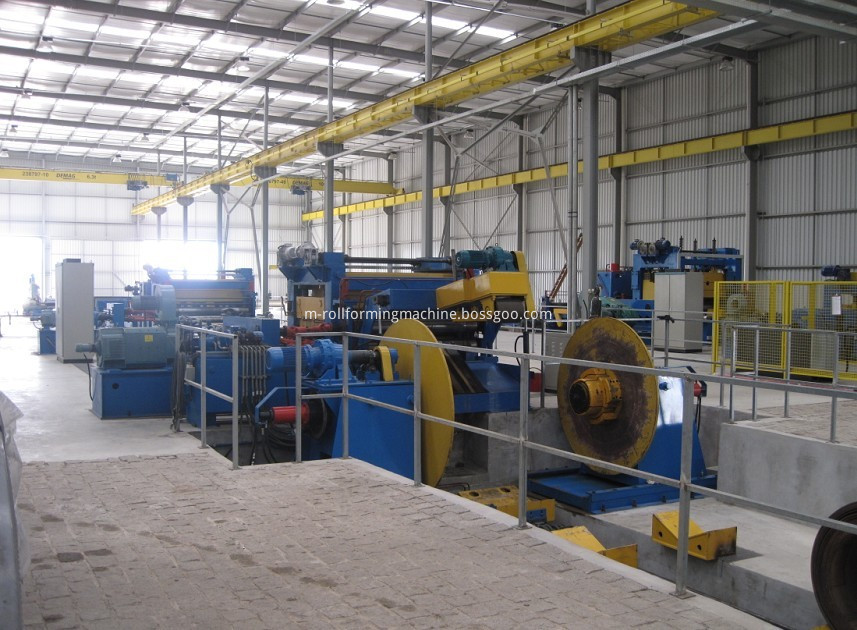

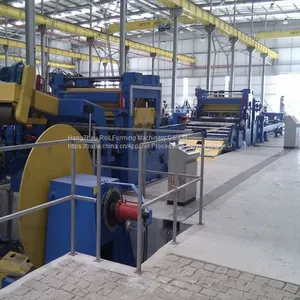

The whole 0.4-2.5×1250mm sheet metal slitting machine show

Packing and shipping about the 0.4-2.5×1250mm sheet metal slitting machine
