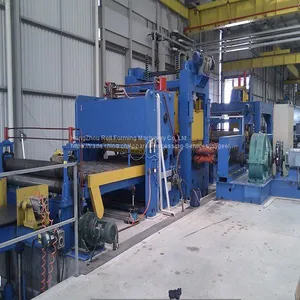

4x1600mm Slitting Lines machine

4x1600 Slitting line can decoil, slit and recoil big steel coils as required width standards.
4x1600mm Slitting Lines machine manufacture parameter

Steel coil parameters
1.Material: Cold and hot rolled sheet
2.Strength: σs≤300Mpa
3.Material Thickness: 1~4mm
4.Coil width: 800~1600mm
5.Coil ID: Φ508/Φ610
6.Coil OD: Φ1000~Φ1800mm
7.Coil Weight: ≤30T
4x1600mm Slitting Lines machine manufacture Finished products parameters
1.Slitting strip numbers: (Not including slitter edge)
1mm≤t≤4mm,biggest 10 pieces;
2.Slitting width: ≥78mm
3.Width tolerance: ≤±0.1mm
4.Slitting straightness accuracy: ≤0.8mm/1000mm
5.Recoiling ID:Φ508mm
6.Recoiling OD:≤Φ1800mm
4x1600mm Slitting Lines machine manufacture Other parameters
1.Slitting speed: ≤60m/min
2.Slitting mode: Dynamic shear, tension shear
3.Electric source: 380V/50HZ Three phases five wires system
4.Total power: 220kw
5.Driving electrical motor:
Five rollers leveling machine:Governor motor DC30kw
Slitting line:Governor motor DC45kw
Recoiling line:Governor motor DC55kw
6.Floor space: (L)28m x (W)9m x (H)4m
7.Working direction: From the left to the right(Facing line on the operation table side)
8.Operator: Two technical workers, two common workers
9.Equipment color: As the request of customer
4x1600mm Slitting Lines machine manufacture Summarize and configuration

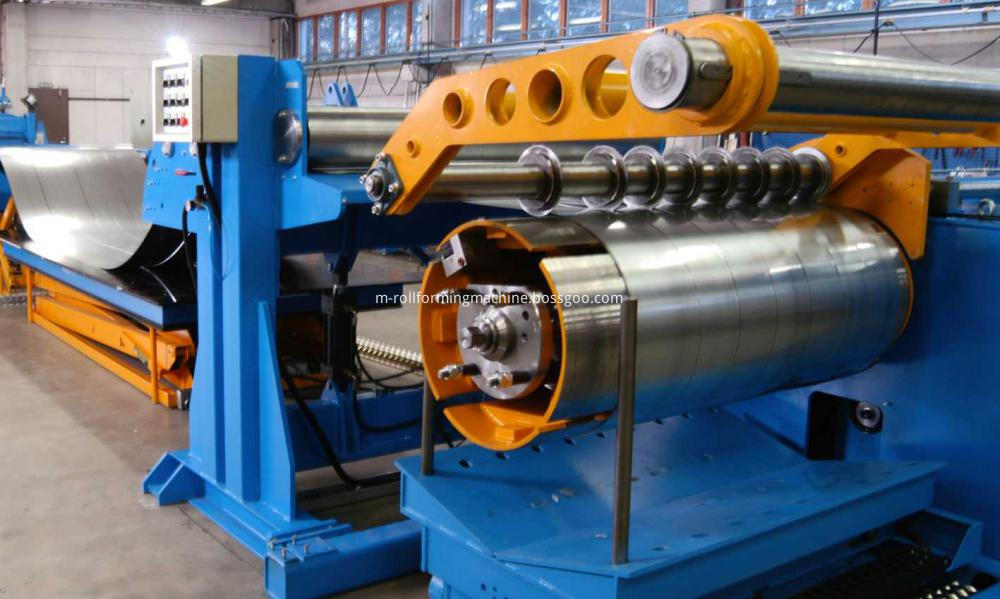

1.Coil car(Include installing base) 1suit
2.Decoiler 1suit
3.Coil unwinding and material leading equipment 1suit
4.Pinching and five rolls leveling machine 1set
5.Coil head cutting machine 1set
6.Loop 2 sets
7.Guiding equipment 1set
8.Slitting machine 1set
9.Slitter edge recoiling machine 2sets
10.Tension control table 1set
11.Recoiling machine(Include supporting arm, distributor) 1suit
12.Discharging car 1set
13.Hydraulic and lubricating system 1suit
14.Electrical system 1set
4x1600 Slitting line can decoil, slit and recoil big steel coils as required width standards Technical procedure

Loading→ Decoiling→ Leveling→ Coil head cutting→ Loop→ Guiding→ Slitting→ Loop→ Tension→ Recoiling→ Getting off line

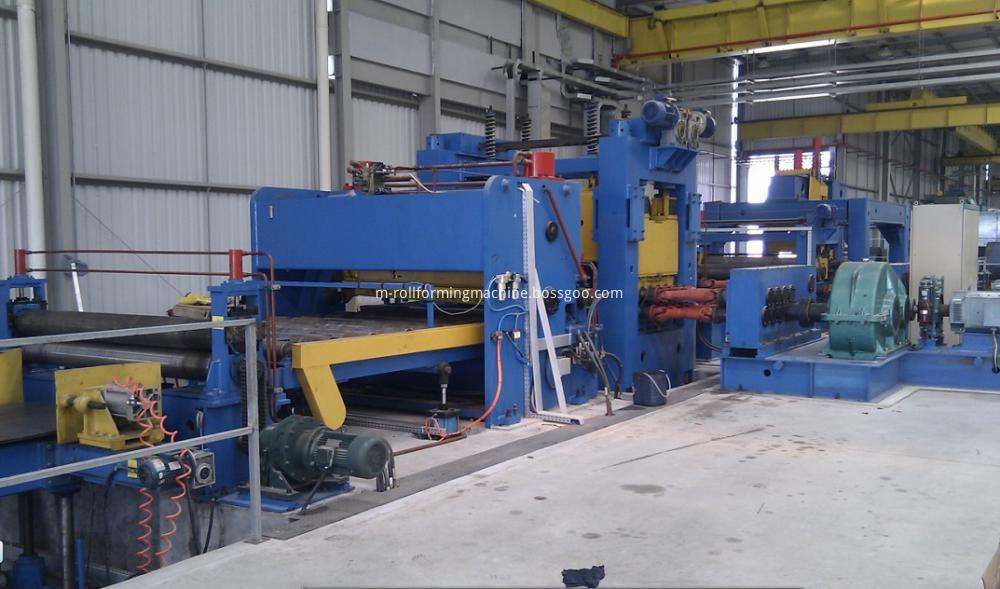

The whole line show
