2x1500 mm film roll slitting machine manufacturer can decoil, slit and recoil big steel coils as required width standards.
2x1500 mm film roll slitting machine manufacturer Line parameter(For reference)
Steel coil parameters
1.Raw material: Hot or cold rolled steel,galvanized steel coil,
coloured steel coil
2.Raw material strength: σb≤510Mpa σs≤470Mpa
3.Raw material thickness: 0.2~2.0mm
4.Coil width: 300~1500mm
5.Suitable coil ID: Φ508/Φ610
6.Suitable coil OD: Φ1200~Φ1800mm
7.Coil loading capacity: max 20 T
Finished products parameters
1.Slitting pieces numbers:
0.2mm≤t≤2mm, max20 pieces
2.Minimum slitting width: ≥65mm
3.Slitting width tolerance: ≤±0.1mm
4.Slitting straightness accuracy: ≤0.8mm/1000mm
5.Recoiling ID: Φ508mm
6.Recoiling OD: ≤Φ1500mm
2x1500 mm film roll slitting machine manufacturer Other parameters
1.Slitting speed: ≤150m/min
2.Slitting mode: Dynamic shear, tension shear
3.Electric source: 380V/50HZ Three phases five wires system
4.Total power: 240kw
5.Driving motor:
Five rolls leveling machine: DC adjustable speed motor DC22kw
Slitting machine: DC adjustable speed motor DC55kw
Recoiling machine: DC adjustable speed motor DC75kw
6.Floor space: Length26m x Width9.5m
7.Working direction: From right to left(Facing line on the operation table side)
8.Operator numbers: Two technical workers, two common workers
9.Equipment color: As the request of customer
2x1500 mm film roll slitting machine manufacturer Line summarize and configuration
1.Coil car(Include installing base) 1suit
2.Hydraulic decoiler 1suit
3.Coil head straightening and leading equipment 1suit
4.Material drawing and five rolls leveling machine 1set
5.Coil head cutting machine 1set
6.Loop 2 sets
7.Guiding equipment 1set
8.Slitting machine 1set
9.Slitter edge winding machine 2sets
10.Tension control table 1set
11.Recoiling machine(include supporting arm, distributor) 1suit
12.Unloading coil car 1set
13.Hydraulic and lubricating system 1suit
14.Electrical system 1suit
2x1500 mm film roll slitting machine manufacturer Technical procedure
Loading→ Decoiling→ Leveling→ Coil head shearing→ Loop→ Guiding→ Slitting→ Loop→ Tension control→ Recoiling→ Getting off line

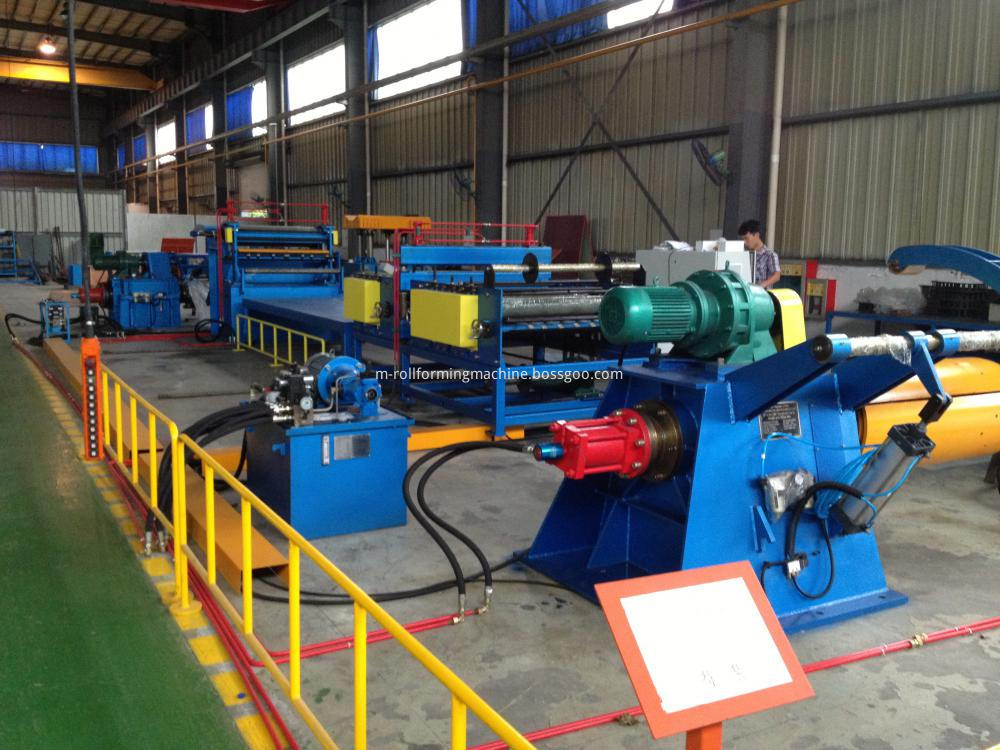

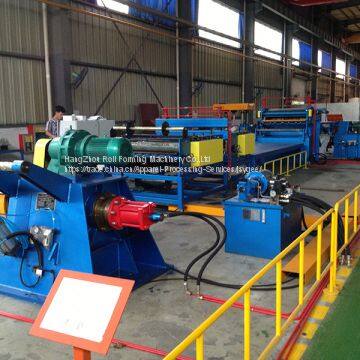

The whole 2x1500 mm film roll slitting machine manufacturer show
Packing and shipping about the 2x1500 mm film roll slitting machine manufacturer
About our maxmach group
