4×1645mm Steel Coil Slitting Line Machines

Basic Parameters of 4×1645mm steel coil slitting line machines:
1. Material: CR and HR steel
2. Thickness: 0.4~4 mm (σs≤280MPa; σb≤500MPa)
3. Width: 500-1645mm
4. Coil ID: Φ508/610/762mm
Coil OD: Φ1200-Φ2000 mm
Coil Weight: ≤30T
5. Speed: ≤90m/min
6. Total Power: ≈320kw
7. Power supply: 415V/50Hz 3 Phase 5 wire
8. Dimension (L*W*H) 31m*9m*3m
9. Machine working direction: From right to left(Facing from the operating stage to the machine)
4×1645mm steel coil slitting line machines parameters:
1. Max Slitting Quantity: 15 Pieces (not include waste edge) (0.4mm≤t≤1.5mm)
5 Pieces (not include waste edge) (1.5mm≤t≤4mm)
2. Width tolerance: ≤±0.05mm
3. Slitting width: 50mm(minimum)
4. Recoiler ID: Φ508mm
Recoiler OD: ≤Φ2000mm
4×1645mm steel coil slitting line machines Work Flow
Feeding material →decoiler →leveling →cut head →loop →guidance →slitting →loop → tension →recoiling →output
4×1645mm steel coil slitting line machines Machine Components
The machine is composed of coil loading car, decoiler, coil guide device, leveller, cutter, stacking lifting car, loop, rectify device, slitter, waste-edge reminder, recoiler, coil unloading car, hydraulic system, electrical system and lubrication system.

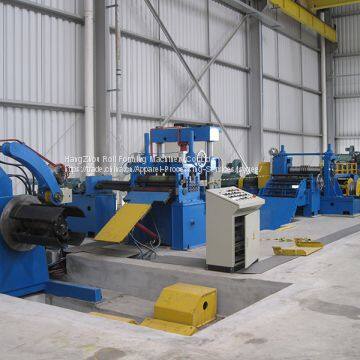

The whole 4×1645mm steel coil slitting line machines show
