ITHERM TM411 Innovative Advanced, Modular RTD Thermometer

Xian Wellwork Industrial Co., Ltd.
ITHERM TM411 Innovative Advanced, Modular RTD Thermometer thumbnail-1
ITHERM TM411 Innovative Advanced, Modular RTD Thermometer thumbnail-2
ITHERM TM411 Innovative Advanced, Modular RTD Thermometer photo-1

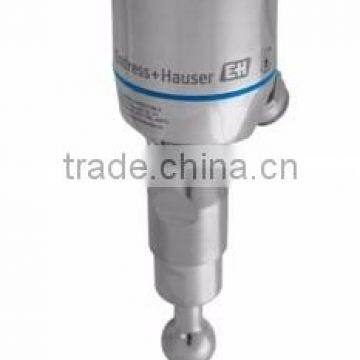

ITHERM TM411 Innovative Advanced, Modular RTD Thermometer photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
TM411
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number TM411

iTHERM TM411 Innovative advanced, modular RTD thermometer



For use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries



Product Overview



It has been designed to meet the requirements of the Food & Beverages and Life Sciences industries and complies with the highest quality standards. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. It offers many technical innovations: iTHERM QuickSens, StrongSens or QuickNeck. This leads to distinctive reduction of maintenance costs, improved product quality, process efficiency and safety.

Benefits

  • User-friendly and reliable from product selection to maintenance

  • iTHERM inserts: globally unique, fully-automated production. Full traceability and consistently high product quality for reliable measured values

  • iTHERM QuickSens: fastest response times (t90s: 1.5 s) for optimum process control

  • iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

  • iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration

  • Over 50 hygienic process connections

  • International certification: explosion protection as per ATEX/IECEx, hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

Field of application

  • Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • Measuring range: –200 to +600 °C (–28 to +1 112 °F)

  • Pressure range up to 40 bar (580 psi)

  • Protection class: up to IP69K

Technical information



Measuring PrincipleResistance Temperature Detector
Characteristic / Applicationmetric style
modular temperature assembly
hygienic/aseptic design (3-A®, EHEDG, ASME BPE, FDA)
hygienic process connections
with neck
suitable for hazardous areas
incl. protection tube
QuickSens for fastest response time
StrongSens for most robust design
QuickNeck for easy and cost saving recalibration
Terminal headTA30A - E+H, aluminium - cover low, hinged - w. or w/o. display
TA30D - E+H, aluminium - cover high, hinged
TA30R - stainless steel blasted - screwed cover - w. or w/o. display
TA30R - stainless steel handpolished - screwed cover - w. or w/o. display
TA30S - polypropylene - screwed cover
TA30P - polyamide - cover high, hinged
Thermowell / protection tubewelded protection tube
without protection tube
T- and cornerpiece
Insert / probemineral insulated (MI), flexible
pipe version, isolated wires, not flexible
Outer diameter protection tube6,0 mm (0,24")
9,0 mm (0,35")
12,7 mm (0,5")
Material protection tube/thermowell1.4435 delta-ferrit < 1%
316L
Process connectioncompression fitting
weld in adapter
clamp connections acc. to ISO2852
screwed pipe joint acc. to DIN 11851
aseptic screwed pipe joint acc. to DIN 11864-1
metallic sealing system
thread acc. to ISO 228 for liquiphant adaptor
APV Inline
Varivent
Ingold
SMS 1147
Neumo Biocontrol
T- and corner pieces
Tip shapestraight
reduced
tapered
Surface roughness Ra0,76 μm (29,92 µin)
0,38 μm (14,96 µin)
0,38 μm (14,96 µin) electropolished
Operating temperature rangePT100:
-200 °C … 600 °C
(-328 °F … 1.112 °F)

StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)

QuickSens:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. process pressure (static)at 20 °C: 40 bar (580 psi)
Accuracyclass A acc. to IEC 60751
class AA acc. to IEC 60751
Response timedepending on configuration
QuickSens: t90 = 1,5 s
StrongSens: t90 = 9,5 s
Integration head transmitteryes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvalsATEX II1G Ex ia IIC T6
ATEX II1/2G Ex ia IIC T6
ATEX II 3 G Ex nA IIC T6, II3D
ATEX II1/2G Ex ia IIC T6, II1/2D
ATEX IECEx II1G Ex ia IIC T6 Ga
ATEX IECEx II1/2D Ex tb IIIC Da/Db
ATEX IECEx II1/2G Ex ia IIC T6 Ga/Gb
ATEX IECEx II1/2D Ex ia IIIC Da/Db
ATEX IECEx II1/2G Ex ia IIC T6, II1/2D
ATEX IECEx II1G Ex ia IIC T6, II1D FM NI I / 2 A-D
FM IS, NI I / 1+2 A-D
NEPSI
CertificationSIL (transmitter olny)
