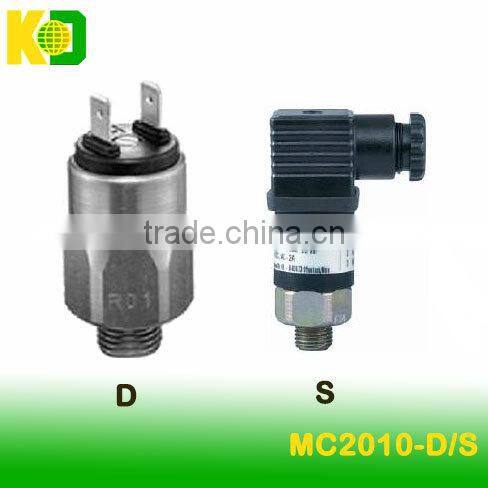

Water Pressure Switch Oil Pressure

Water pressure switch oil pressure

Specification:

S-type

Delay: 10-20% (25-35%,1-5% optional)

Tolerance: 3% of preset

Output: SPST, NO/NC, contact with gold-plating

     ≤DC42V,1A

     ≤DC115V,0.15A

     ≤AC42V,3A

     ≤AC125V,3A

     ≤AC250V,0.5A

 Working Temperature: -20~85°C

Weather Proof: IP65

Electric Connect: Terminal

Life Cycle: 1,000,000

Process Connect: SS304

Withstand Voltage;:

Diaphragm type: 30MPa,

Piston type: 60MPa

Material: membrane: NBR

Piston: Steel type woth NBR-sealed

Connection: galvanized steel

D-type

Delay: 10-20% (25-35%,1-5% optional)

Tolerance: 3% of preset

Repeatability: ±3%

Output: SPST, NO/NC, contact capacity:110VA

Working Temperature: -45~130℃

Weather Proof: IP65

Electric Connect: 6.3*0.8 Insert

Life Cycle: 1,000,000

Process Connect: SS304

Withstand Voltage;

Diaphragm type: 30MPa,

Piston type: 60MPa
