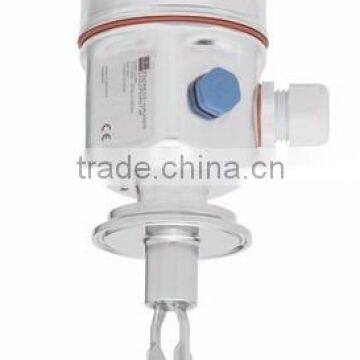

Vibronic Point level detection Liquiphant FTL50H
Compact vibration point level switch for liquids especially in the food and life sciences industry
Product Overview
Liquiphant FTL50H is a point level switch for use in hazardous areas with all international certificates. Especially useable in the food and life sciences industry with hygienic certificates (3-A, EHEDG, ASME BPE). FTL50H offers functional safety SIL2/SIL3. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Benefits
International hygienic certificates (3-A, EHEDG, ASME BPE). FDA-conformed material
Electro-polished and passivated surface finishing
International explosion protection certificates and overfill prevention certificate (WHG)
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed functionUse in safety systems requiring functional safety to SIL2/SIL3 in accordance with
IEC 61508/IEC 61511-1No calibration required, easy to start up
Variety of standardized hygienic process connections for hygiene sensitive applications
Field of application
Point level switch for all liquids with completely welded housing concept.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp, dairy coupling, aseptic, DRD, SMS, Varivent)
Temperature: -50 to +150°C (-58 to +302°F)
Pressure: -1 to +64bar (-14.5 to +928psi)
Sensor material: 316L
International explosion protection certificates, WHG overfill prevention, SIL, EN10204-3.1, ship building approval, ASME BPE, 3-A, EHEDG, FDA, USP class VI
Technical information
| Measuring Principle | Vibration Liquids | |
| Characteristic / Application | Liquiphant M Density with Density Computer FML621 Temperature and Pressuremeasurement Modular & completely welded housing concept Focus Food & Pharma surface up to 0,3µ for compensation (option) | |
| Supply / Communication | Transmitter power supply (MUS) | |
| Ambient temperature | -50...70°C -50...60°C for hazardous applications | |
| Process temperature | 0...80°C (validity of accuracy data) -50...0°C/80...150°C (with reduced technical data) | |
| Process pressure absolute | 0...25bar >25...64bar (with reduced technical data) | |
| Wetted parts | 316L | |
| Hygienic | 3A EHEDG | |
| Sensor length | Compact: 50,5mm | |
| Output | Pulse | |
| Certificates / Approvals | ATEX IECEx | |
| Specialities | Commissioning with ReadWin2000 | |
| Components | Density Computer FML621 | |
