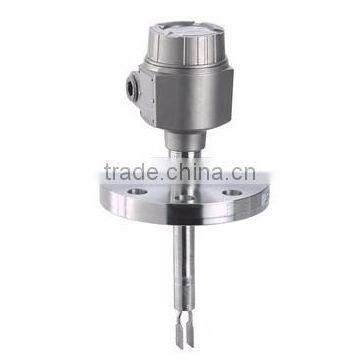

Vibronic Point level detection Liquiphant FTL51
Point level switch with extension tube for liquids in all industries
Product Overview
Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Benefits
Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
IEC 61508/IEC 61511-1International explosion protection certificates and overfill prevention certificate (WHG)
No calibration required, easy to start up
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed functionSecond line of defense to protect the environmental
Variety of standardized process connections for all applications
Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
Field of application
Point level switch with extension tube for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -50 to +150°C (-58 to +302°F)
Pressure: -1 to +100bar (-14.5 to +1,450psi)
Sensor material: 316L, Alloy
International explosion protection certificates, WHG overfill prevention, SIL, EN10204-3.1,
ASME B31.3
Technical information
| Measuring Principle | Vibration Liquids | |
| Characteristic / Application | Liquiphant M Density with Density Computer FML621 Temperature and Pressuremeasurement Modular housing concept wide range of process connections pipe extension up to 3m (6m option) for compensation (option) | |
| Supply / Communication | Transmitter power supply (MUS) | |
| Ambient temperature | -50...70°C -50...60°C for hazardous applications | |
| Process temperature | 0...80°C (validity of accuracy data) -50...0°C / 80...150 °C (with reduced technical data) | |
| Process pressure absolute | 0...25bar >25..100bar (with reduced technical data) | |
| Wetted parts | 316L/C4 | |
| Sensor length | 115...3000mm >3000...6000mm (Option) | |
| Output | Pulse | |
| Certificates / Approvals | ATEX IECEx | |
| Specialities | Commissioning with ReadWin2000 | |
| Components | Density Computer FML621 | |
