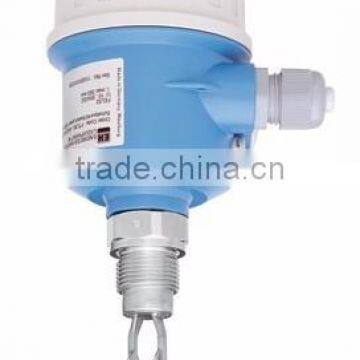

Vibronic Point Level Detection Liquiphant FTL50 photo-2
Vibronic Point Level Detection Liquiphant FTL50 photo-3

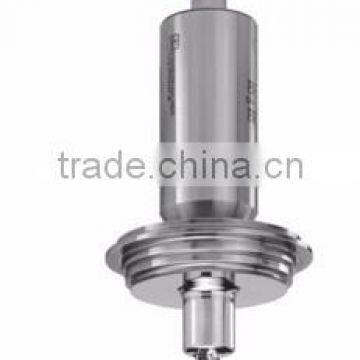

Vibronic Point Level Detection Liquiphant FTL50 photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
FTL50
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number FTL50

Vibronic Point level detection Liquiphant FTL50



Compact vibration point level switch for liquids in all industries



Product Overview



Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.



Benefits

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
    IEC 61508/IEC 61511-1

  • International explosion protection certificates and overfill prevention certificate (WHG)

  • No calibration required, easy to start up

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Second line of defense to protect the environmental

  • Variety of standardized process connections for all applications

  • Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)



Field of application

Point level switch for all liquids.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +64bar (-14.5 to +928psi)

  • Sensor material: 316L, Alloy

  • International explosion protection certificates, WHG overfill prevention, EN10204-3.1, SIL, ship building approval, ASME B31.3

Technical information

Measuring PrincipleVibration Liquids
Characteristic / ApplicationModular housing concept
wide range of process connections
Analogue and bus interfaces
Extensive certificate range (e.g. Ex,WHG)
compact, e.g. pipes

Supply / CommunicationPROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC or 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM
Ambient temperature-50 °C...+70 °C
(-58 °F...+158 °F)
Process temperature-50 °C...+150 °C
(-58 °F...+302 °F)
Process pressure absolute / max. overpressure limitVacuum...64 bar
(Vacuum...928 psi)
Min. density of medium0.5g/cm³(0.4g/cm³ option)
Main wetted parts316L, Alloy
Process connectionThread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DN25...DN100,
ASME 1"...4",
JIS 25A...100A
Process connection hygienicTri-Clamp ISO2852

OutputPROFIBUS PA
19...253V AC
10...55V DC-PNP
19...253V AC or 10...55V DC
8/16mA, 11...36V DC
NAMUR
PFM

Certificates / ApprovalsATEX, FM, CSA, NESPI, TIIS, INMETRO
Overfill prevention WHG
SIL
EN10204-3.1
NACE
Marine GL/ABS
AD2000
ASME B31.3
OptionsHeavy duty stainless steel housing mainly for the oil and gas industry

SpecialitiesFoamdetection
Detekt a densitychange
second line of defense

ComponentsFTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR
