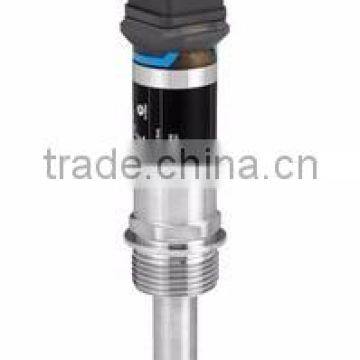

Vibronic Point level detection Liquiphant FTL31
Point level switch in compact design with stainless steel housing
Product Overview
Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill prevention or pump dry-run protection in cleaning and filter systems as well as in cooling and lubrication vessels.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration or adjustment
- Plug & play
Benefits
Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss
Independent of changing media properties an accurate switching point is offered
A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles
No calibration is required, no specific know-how or tools (e.g. software) necessary
Robust design made of stainless steel (316L) assures highest durability
A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application
No mechanically moved parts, free of maintenance
Field of application
Point level switch in compact design with stainless steel housing.
Process connections: Threads
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to 580psi)
Surface roughness: 3.2µm
Approvals: WHG overfill prevention and leakage detection, CSA C/US, 3.1 material certificate, marine approval, final inspection report
Technical information
| Measuring Principle | Vibration Liquids | |
| Characteristic / Application | Level switch for liquids and is used in tanks, vessels and pipes. | |
| Supply / Communication | 20 ... 253V AC/DC, 2-wire 10 ... 35V DC-PNP 3-wire | |
| Ambient temperature | 40 °C ... 70 °C (-40 °F ... 158 °F) | |
| Process temperature | -40 °C ... 150 °C (-40 °F ... 302 °F) | |
| Process pressure absolute / max. overpressure limit | Vacuum ... 40 bar (Vacuum ... 580 psi) | |
| Min. density of medium | >0,7g/cm³ (>0,5g/cm³ optional) | |
| Main wetted parts | 316L | |
| Process connection | Threads: G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1 | |
| Output | AC/DC, DC-PNP | |
| Certificates / Approvals | WHG EN10204-3.1 Material Final Inspection Report | |
| Options | Adjustment switching delay Cleaned from oil+grease, PWIS free | |
