Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g

ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g

Name: ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g
Brand: ALCON
SKU: 141813714
Availability: InStock

Dow Technology Electronics Trading Co L.l.c

ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g thumbnail-1

ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g thumbnail-2

ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g photo-1

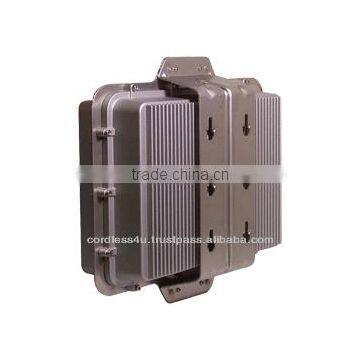

ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g photo-2

US$ 1,200 - 1,330 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

ALCON

Model Number:

ALINK-2450g

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Taipei Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name ALCON

Model Number ALINK-2450g

ALCON ALINK-2450g Long Range High Power 5W Wireless Outdoor AP Client Bridge WDS 2.4GHz 11b/g

Alcon Alink-2450g with 15dbi Omni Antenna is our max power 5W 2.4Ghz Outdoor Access Point base station

Features:
High Output power up to 37dBm - 5000 mW
Fully interoperable with IEEE 802.11b/g compliant devices
Support Multi-SSID and VLAN function in AP mode
Enhance user performance and density QoS(WMM) support
Powerful data security WEP/ WPA/ WPA2 support
Range PTP up to 30 Km

Tested range in public WiFi Zones with 15dbi Omni Antennas : Up to 100m coverage to Android, Smartphone, iPad etc. Up to 200m coverage to Laptops Up to 4km to home or enterprise users with additional clent CPEs equpiment ( Up to 2km with AOC 2406n; Up to 3-4 km with AOU-2410 ; Up to 4-5km with ASU-2405)

AP Specification

Standards Compliance	IEEE 802.11b, IEEE 802.11g, IEEE802.3, IEEE 802.3u
SDRAM	32 M Byte
Flash	8 M Byte
Radio Frequency Type	DSSS/OFDM
Modulation	IEEE 802.11b: CCK,DQPSK,DBPSK IEEE 802.11g: OFDM with BPSK,QPSK,16QAM,64QAM
Frequency Band	America/FCC:2.412~2.462 GHz (11 channels) Europe CE/ETSI:2.412~2.472 GHz (13 channels)
Transmission Power	802.11b: 37dBm@1~11Mbps 802.11g: 31dBm@54Mbps; 32dBm@48Mbps; 34dBm@36Mbps; 35dBm@6~24Mbps
Transmission Rate	IEEE802.11b: 1/2/5.5/11Mbps IEEE802.11g: 6/9/12/18/24/36/48/54Mbps
Access Point Interfaces	Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
Sensitivity	IEEE 802.11b: -98dBm @ 1Mbps; -93dBm @ 11Mbps, PER < 8% IEEE 802.11g: -95dBm @ 6Mbps; -75dBm @ 54Mbps, PER < 10%
Antenna Type	N-type external high gain antenna (optional)
Security Systems	64-bit/128-bit/152-bit WEP encryption; Wi-Fi Protected Access (WPA)/ WPA2
Wireless Setting	Operation Mode – AP/ Client / Wireless Bridge (WDS) PtP and PtMP (up to 16 links)/ Repeater Channel Selection (Setting varies by Country) Adjustable transmit power by 1dBm step
Software/Firmware	Site Survey DHCP Client Suppressed SSID Spanning Tree settings Wireless access control by MAC address filter (up to 50) Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs) Web-based configuration via popular browser (MS IE, Netscape…) Windows “Locator” program to help find IP in DHCP client mode Firmware upgrade and configuration backup via Web Reset to default by WebUI VPN pass-through (PPTP, L2TP, IPSEC) SysLog SNMP v1/v2c MIB support: MIB I, MIB II (RFC-1213) and Private MIB Support QoS(WMM) Support Time settings
Operating Environment	Operating Temperature: -30 ~ +70°C
Power	DC 48Volt ± 5%; 2.2A (Max.); AC adapter AC 100V ~ 240V
Regulatory Approval	N/A
Network Management System OS Support	Windows 2000 /XP/ Vista/ Window 7
Warranty	One year limited
