ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna

ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna thumbnail-1
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna thumbnail-2
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna thumbnail-3
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna thumbnail-4
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna photo-1
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna photo-2
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna photo-3
ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps With 7-dbi Omni Antenna photo-4
US$ 105 - 125 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
ALCON
Model Number:
Alcon AOU-2410
Contact Supplier Request Quote Chat Now
Dow Technology Electronics Trading Co L.l.c
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name ALCON
Model Number Alcon AOU-2410

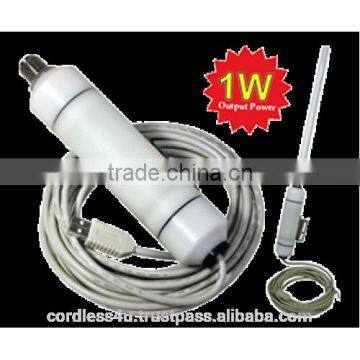

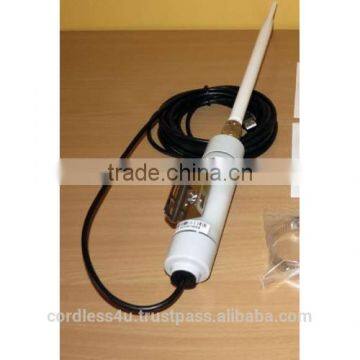

 ALCON AOU-2410 Outdoor long Range high power USB Adapter 1W 2.4Ghz 11b/g/n Mimo with 7-dbi Omni Antenna



High output power : 1-watt immediate radio RF output;
High EIRP radiation power with 7-dbi antenna: 30dBm + 7dbi = 37dBm/6-watt
Omni-directional design for alignment-free; up to 3Km non-LOS and 8Km with LOS

AOU-2401 Include : USB Adapter device, 5m  usb Cable, External 7dBi Dipole Antenna, installation CD, 1 bracket





Highlights
  • Complies IEEE 802.11 N/G/B standard
  • IP67 enclosure for outdoor use : survive 27~131°F (-3 ~55°C)
  • Dual-chip design : RealTek 3070L + 1-watt output chip; low temp., better isolation, big power
  • Support 150 Mbps data rate
  • High output power : 1-watt immediate radio RF output;
  • High EIRP radiation power with 7-dbi antenna: 30dBm + 7dbi = 37dBm/6-watt
  • Omni-directional design for alignment-free; up to 3Km non-LOS and 8Km with LOS
  • Complies with Universal Serial Bus Rev. 1.0, 1.1 and 2.0 specifications and UPnP
  • Support 64/128-bit WEP encryption, advanced WPA/WPA2 AES/TKIP and WPS security
  • Support 20/40 MHz Bandwidth in AP mode
  • SoftAP function : to create AP function with PC + indoor AP for sharing/serving indoor users
  • Low power consumption (USB) with advanced power management
  • Support driver for Windows 2000, XP 32/64 and Vista 32/64, Apple Mac and Linux
  • Support auto-installation and diagnostic utilities
Specifications
Standards Compliance IEEE 802.11b/g, 802.11 draft n 2.0, USB 2.0
Chipsets Solution RealTek 3070L
Our own masked 1-watt RF power chip
(2 chipset solution)
Modulation IEEE802.11b: CCK,DQPSK,DBPSK
IEEE802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
IEEE802.11n draft 2.0:
Frequency Band America/FCC:2.412~2.462 GHz (11 channels)
Europe CE/ETSI:2.412~2.472 GHz (13 channels)
Japan : 2.412~2.484 GHz (14 channels)
TX Power (radio RF output) 20~30dBm (100mW~1W) adjustable
TX Power (EIRP radiation output with 7-dbi antenna) 20dBm + 7-dbi ~ 30dBm + 7-dbi = 27dBm (500mW) ~ 37dBm (6-watt)
adjustable
Transmission Rate IEEE802.11b: 1/2/5.5/11 Mbps
IEEE802.11g: 6/9/12/18/24/36/48/54 Mbps
IEEE802.11n draft 2.0: 150 Mbps
Access Protocol CSMA/CA
Sensitivity -91dBm @ 11Mbps, PER < 8% packet size 1024; -76dBm @ 54Mbps, PER < 10% packet size 1024; -76±2dBm @ 65Mbps: 802.11n(20MHz); -74±2dBm @ 135Mbps: 802.11n(40MHz);
Frequency Stability With ±10ppm
Antenna Type External 7dBi Dipole Antenna
Security Systems 64/128-bit WEP,WPA-PSK,WPA2-PSK,802.1X and Cisco CCX support WPS PIN/PBC
USB USB 2.0 with 10 m (30ft) high quality USB cord
Temperature 27~131°F (-3 ~55°C)
Network Management System OS Support Windows 2000/XP32-64/Vista32-64/Macintosh/Linux







1 Year warranty – Original made in Taiwan

R&R GROUP INTERNATIONAL
Taipei Taiwan, Hong Kong, Dubai UAE





ALCON AOU-2410 High Power USB Mimo Adapter 1W 2.4Ghz.11b/g/n 150Mbps with 7-dbi Omni Antenna
