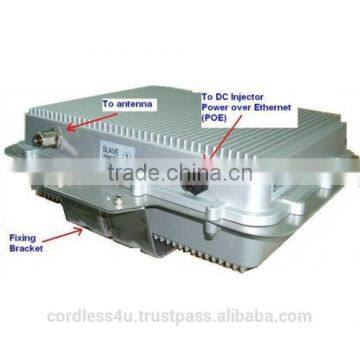

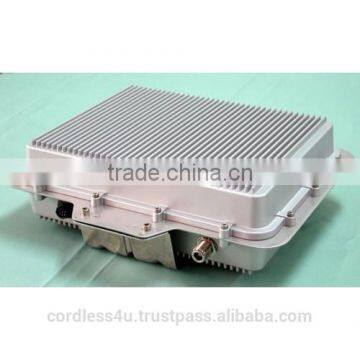

ALCON ALINK-2450g Outdoor High Power 5W Access Point Client Bridge WDS Repeater 2.4GHz 11b/g 54mbps

Standards Compliance

SDRAM

Flash

Radio Frequency Type

Modulation

IEEE 802.11b: CCK,DQPSK,DBPSK
IEEE 802.11g: OFDM with BPSK,QPSK,16QAM,64QAM

Frequency Band

America/FCC:2.412~2.462 GHz (11 channels)
Europe CE/ETSI:2.412~2.472 GHz (13 channels)

Transmission Power

802.11b: 37dBm@1~11Mbps
802.11g: 31dBm@54Mbps; 32dBm@48Mbps; 34dBm@36Mbps; 35dBm@6~24Mbps

Transmission Rate

IEEE802.11b: 1/2/5.5/11Mbps
IEEE802.11g: 6/9/12/18/24/36/48/54Mbps

Access Point Interfaces

Sensitivity

IEEE 802.11b: -98dBm @ 1Mbps; -93dBm @ 11Mbps, PER < 8%
IEEE 802.11g: -95dBm @ 6Mbps; -75dBm @ 54Mbps, PER < 10%

Antenna Type

N-type external high gain antenna (optional)

Security Systems

64-bit/128-bit/152-bit WEP encryption;
Wi-Fi Protected Access (WPA)/ WPA2

Wireless Setting

Operation Mode – AP/ Client / Wireless Bridge (WDS) PtP and PtMP (up to 16 links)/ Repeater
Channel Selection (Setting varies by Country)
Adjustable transmit power by 1dBm step

Software/Firmware

Site Survey
DHCP Client
Suppressed SSID
Spanning Tree settings
Wireless access control by MAC address filter (up to 50)
Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)
Web-based configuration via popular browser (MS IE, Netscape…)
Windows “Locator” program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web
Reset to default by WebUI
VPN pass-through (PPTP, L2TP, IPSEC)
SysLog
SNMP v1/v2c
MIB support: MIB I, MIB II (RFC-1213) and Private MIB
Support QoS(WMM)
Support Time settings

Operating Environment

Power

Regulatory Approval

Network Management
System OS Support

Warranty
