DONGFENG DLK 4*2 Rear Load Garbage Compactor 8m3
Rear Load Garbage Compactor is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:
Rear Load Garbage Compactor is constructed 12# low alloy steel and 4mm carbon steel, the body is fitted on the chassis by the truck beam. It is widely used in garbage disposal in street , school and other places, can be equipped with many garbage bucker, it have dump function, hydraulic operation, dump conveniently.
The features of this Rear Load Garbage Compactor :
1.Simple, efficient collection & treatment methods;
2. Automatic operation;
3. ISO9001,3C
4. High quality low price
5. Economical ,Practical
Main technical parameter of DONGFENG DLK 4*2 Rear Load Garbage Compactor 8m3
Main Technical Parameter | |||
Product Model | DONGFENG Rear Load Garbage Compactor | Overall Dimension(L*W*H)(mm) | 7000×2320×2900 |
Wheelbase(mm) | 3800 | Tank volume(m3) | 8 |
Curb weight(kg) | Approx 6095 | F/ R suspension(mm) | 1180/2020 |
Steering Type | LHD, power steering | Number of Axles | 2 |
Approach/ departure angle (° ) | 20/11 | Max Speed (km/h) | 95 |
Cab capacity | 3 | Cab Type | Flat proof, single row |
Chassis Technical Parameter | |||
Chassis Model | EQ1070TJ9AD3 | Chassis manufacturer | DONGFENG Automobile |
Gear Box | 5 shift | Transmission type | Manual |
Brake System | air brake | Traction Type | 4*2 |
Leaf Spring number | 11/9+7,8/10+7 | Tire size/type | 7.50R16 |
Engine Technical Parameter | |||
Engine Model | CY4102-E3C | Engine manufacturer | DONGFENG CHAOYANG |
Fuel type | diesel | Displacement(ml) | 3856 |
Emission stand | Euro 3 | Power(kw) | 91(124hp) |
Equipment & Performance | 1.Equipped with loading hopper, front push , rear compressed , sewage tank, optional rear overturned mechanism, garbage bucket ,etc | ||
2.Compartment material: side and back 3mm ,floor 4mm thickness carbon steel | |||
3.Equipped with 24V Electrically Hydraulic Control system | |||
Warranty | 12 months, from the date of supply | ||
This Rear Load Garbage Compactor Show as the following:

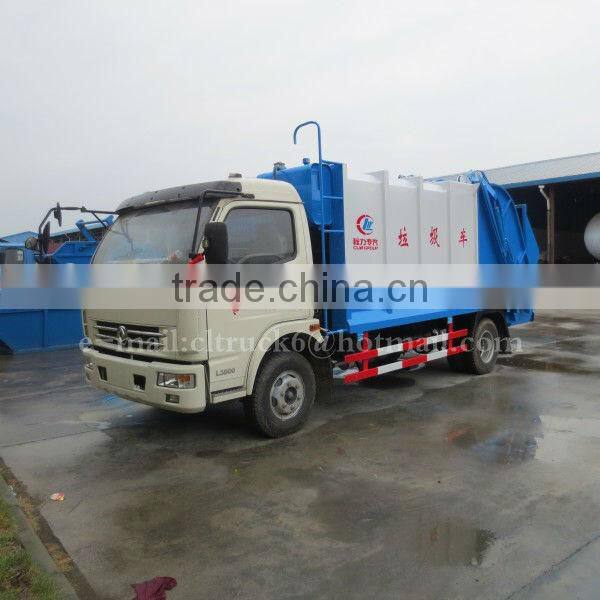

Left Side view of this Rear Load Garbage Compactor :
Sewage outlet of this Rear Load Garbage Compactor :

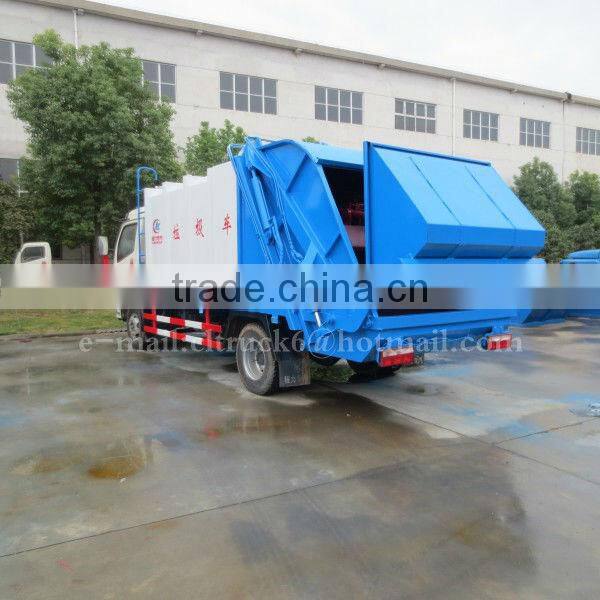

Rear view of this Rear Load Garbage Compactor :

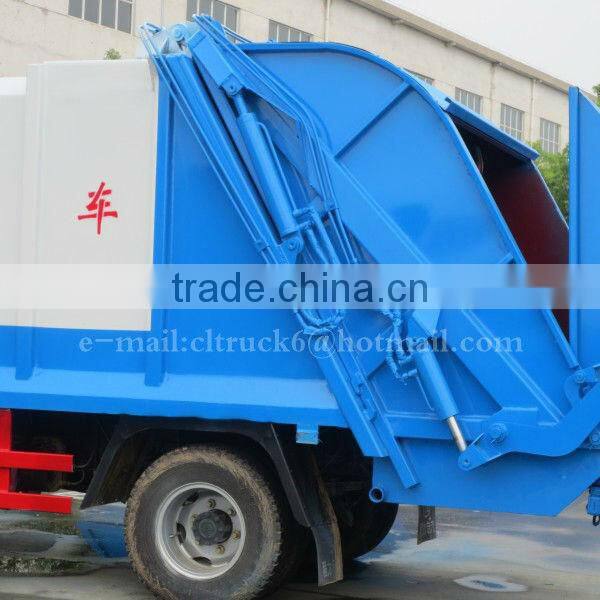

Hydraulic Cylinder of this Rear Load Garbage Compactor :

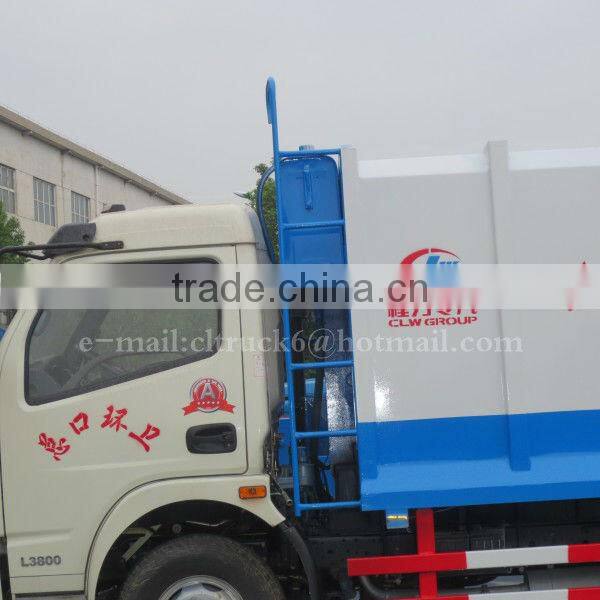

Hydraulic Oil Tank of this Rear Load Garbage Compactor :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
our Certificates:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
