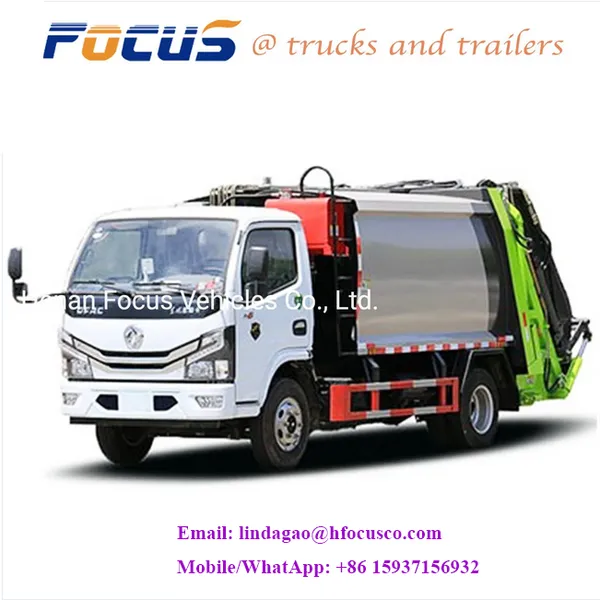

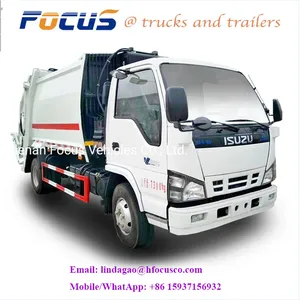

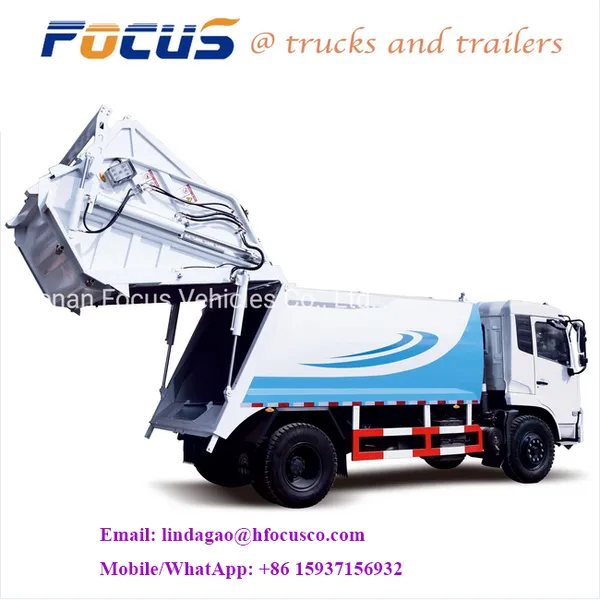

Help CenterChina Factory Direct Foton10-14cbm Garbage Compactor Truck Compressed Garbage Rubbish Trucks
Related Products
-
Cheap 12cbm Diesel Agitator Tank Truck Concrete Mixer Cement Mixer Truck, Construction Mixing Drum Truck HOWO Mobile Concrete Mixer TruckUS$ 6000 - 99999MOQ: 1 Unit -
Sinotruk 6X4 8X4 4X2 Cement Mixer Pump Tank Construction Mixing Drum Truck HOWO Mobile Concrete Mixer TruckUS$ 6000 - 36500MOQ: 1 Unit
-
2.5m3 Self Loading Mixture Cement Howo Mobile Self Loading Concrete Mixer 12 Cubic Meters Concrete Mixer Truck For Sale PriceUS$ 6000 - 99999MOQ: 1 Unit
-
6X4 9cbm Concrete Machine Truck Mixers Exporting South America,Factory Direct Sales Diesel Used Concrete Transit Mixer Truck For Manufacturing Plant Construction WorksUS$ 6000 - 36980MOQ: 1 Unit
-
Cheapest China Top Brand 8 Cubic Meter Concrete Mixer Truck G08V With Hydraulic Pump for SaleUS$ 6000 - 69500MOQ: 1 Unit
Best price HOWO 20cbm refuse compactor truck compression refuse collector waste treatment truck
| Product model | FCS5160ZYS20E |
| Chassis model | DFL1160BX2 |
| Chassis manufacturer of Compression Garbage Truck | Dongfeng Automobile Co., Ltd. |
| Overall dimension of complete vehicle (mm) | 8310(8360;8350) ×2460×2860 |
| Wheelbase of Compression Garbage Truck (mm) | 4200 |
| Wheel track of front wheel (mm) | 1880 |
| Wheel track of rear wheel (mm) | 1860 |
| Kerb mass of Compression Garbage Truck (kg) | 9705,10095,10005 |
| Rated load of Compression Garbage Truck (Kg) | 6100,5710,5800 |
| Gross mass of Compression Garbage Truck (kg) | 16000 |
| Maximum vehicle speed of Compression Garbage Truck (km/h) | 90 |
| Maximum gradeability of Compression Garbage Truck (%) | 20 |
| minimum turning diameter of Compression Garbage Truck (m) | 18 |
| Minimum ground clearance of Compression Garbage Truck (mm) | 250 |
| Approach angle of Compression Garbage Truck (°) | 20 |
| Departure angle of Compression Garbage Truck | 13 |
| Dustbin volume of Compression Garbage Truck (m3) | 12 |
| Volume of precompressor (m3) | 1.9 |
| Compression cycle time of Compression Garbage Truck (s) | 30 |
| Garbage dumping time of Compression Garbage Truck (s) | 40 |
| Compression density of Compression Garbage Truck (t/m3) | 0.0.6-0.8 |
Compression garbage truck is a kind of municipal sanitation garbage truck.
The whole vehicle is composed of a sealed garbage compartment, hydraulic system, and operating system. There are several kinds of compressed garbage trucks at the rear of the compression garbage truck, such as hanging bucket compression garbage truck, dustpan bucket type rear flip compression garbage truck, swing arm compression garbage truck, etc.
The box material is made of high-quality carbon steel, with three sides and four sides. It adopts forward push and backward pressure, curved carriage with fully enclosed (manual operation), and the hydraulic control operating system is electric control and manual control. The loading cycle is a one-key operation. There is a set of left and right sides at the rear of the car, and a set of electric unloading operation system in the cab. The sewage in the sewage collection box at the bottom of the filler can flow into it, and it can be discharged through a ball valve when unloading garbage.
[Function introduction of compressed garbage truck]:
1. Compressed garbage truck, also known as after-loading compressed garbage truck, is a new type of sanitation vehicle that col
