4*2 DONGFENG 140 Side Lift Garbage Truck 10m3
Side Lift Garbage Truck ,is also called side loading garbage truck, self loading garbage truck, side barrel garbage truck ,etc. it mainly consists of chassis, garbage dustbin, hydraulic system, side barrel lifting and cycle mechanism . Through electric hydraulic control , you can realize lifting of the side barrel and discharge of the garbage. We can provide not only side lift garbage truck, we also offer dump garbage truck, butt-type garbage truck, compression garbage truck, sealed garbage truck,etc.
- Product Notes:
1 ISO9001,3C
2 High quality,low price
3 Professional technology
4 Simple collection method, easy to use
- Technical Parameter of 4*2 DONGFENG 140 Side Lift Garbage Truck 10m3
Main Technical Parameter | |||
Product Name | DONGFENG Side Lift Garbage Truck | Overall Dimension(L*W*H)(mm) | 6850×2440×2720 |
Wheelbase(mm) | 3950 | Approach/ departure angle (° ) | 34/17 |
Loading capacity(m3) | 10 | Curb weight(kg) | 5715 |
Front/ rear suspension(mm) | 1065/1835 | Axle number | 2 |
Cab capacity | 3 | Max Speed (km/h) | 85 |
Chassis Technical Parameter | |||
Chassis Model: | EQ1102FLJ5 | Chassis Manufacturer: | DONGFENG Automobile Co., Ltd |
Gear box | DONGFENG 6 shift | Transmission type: | Manual |
Brake System | air brake | Leaf Spring number: | 9/12+9 |
Steering type | LHD/ RHD | Number of Tire | 6 with a spare |
Tire size | 9.00-20 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | YC4E140-33 | Engine Brand | GUANGXI YUCHAI |
Emission stand | Euro 2 | Displacement(ml) | 4257 |
Fuel type: | Diesel | Power(kw) | 105(140hp) |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control | ||
2. Equipped with side lifting mechanism , optional equipped with metal or Plasticbucket | |||

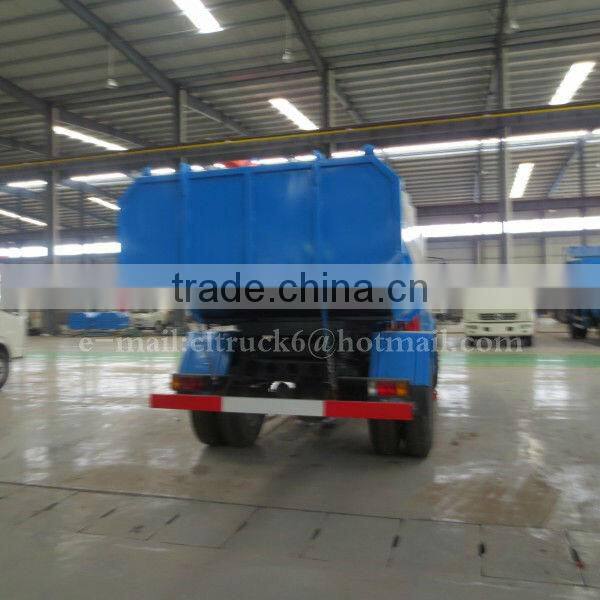

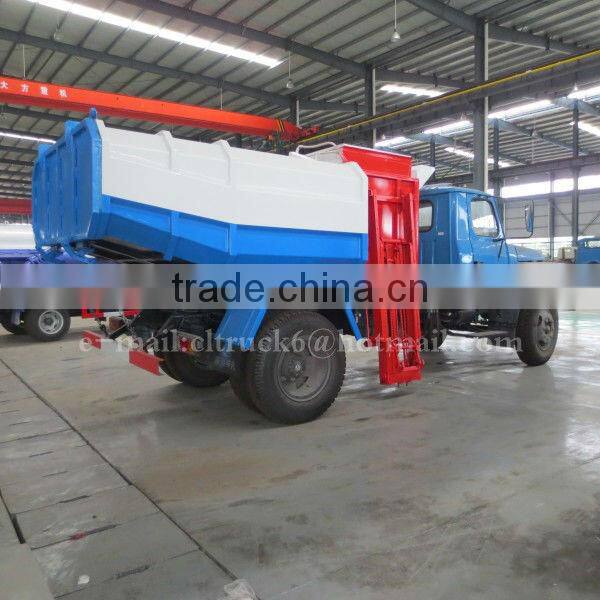

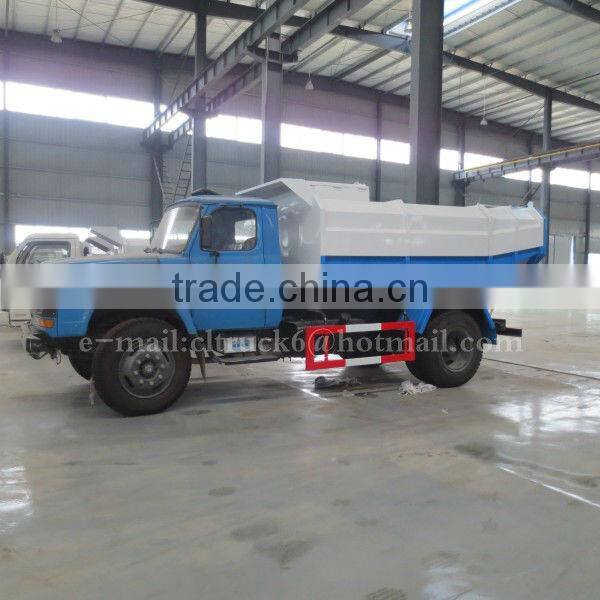

- This Side Lift Garbage Truck show as following:

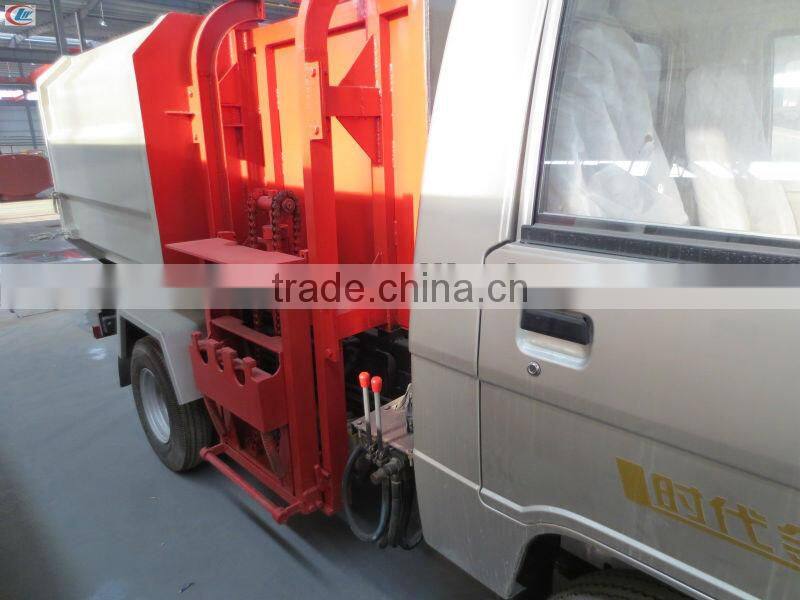

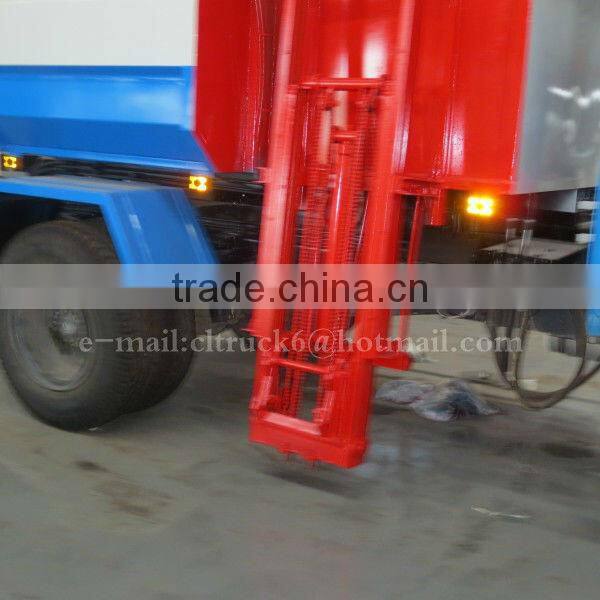

Lift mechanism of this Side Lift Garbage Truck show as the following:

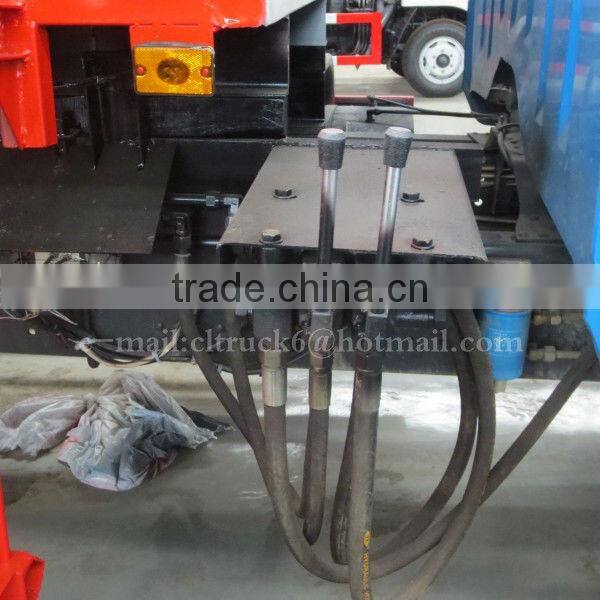

Control Valve & Operation Handle of this Side Lift Garbage Truck :
- Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
- Our Certificates:
- Production Equipments:
- Trucks Exported:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
