4*2 FORLAND Self-Loading Trash Truck 3 Ton
Self-Loading Trash Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:
Self-Loading Trash Truck is constructed 12# low alloy steel and 4mm carbon steel, the body is fitted on the chassis by the truck beam. It is widely used in garbage disposal in street , school and other places, can be equipped with many garbage bucker, it have dump function, hydraulic operation, dump conveniently.
The features of this Self-Loading Trash Truck :
1.Simple, efficient collection methods;
2.Automatic operation;
3.Environmentally friendly ;
4. ISO9001,3C
5. High quality low price
6. Economical ,Practical
,
Main technical parameter of 4*2 FORLAND Self-Loading Trash Truck 3 Ton
Main Technical Parameter | |||
Product Name | FORLAND Self-Loading Trash Truck | Overall Dimension(L*W*H)(mm) | 5100×2000×2650 |
Wheelbase(mm) | 2800 | Curb weight(kg) | 3010 |
Approach/ departure angle (° ) | 23/22 | Max Speed (km/h) | 95 |
Cab capacity | 2 | Cab type | Flat proof |
Chassis Technical Parameter | |||
Chassis Model: | BJ1046V9JB4-X1 | Chassis Manufacturer: | Beiqi FONTON Automobile Co., Ltd |
Brake System | Air brake | Transmission type: | Manual with 5 shift |
Traction Type: | 4*2 | Leaf Spring number: | 7/7+5 |
Axle number | 2 | Steering type | LHD |
Tire size | 6.50-16,6.50R16 | Number of Tire | 6 with a spare |
Engine specification | |||
Engine Model: | 4B1-88C40 | Engine Brand | ANHUI QUANCHAI Power Co., Ltd |
Emission stand | Euro 4 | Displacement(ml) | 2270 |
Fuel type: | Diesel | Power(kw) | 65(88hp) |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control ,Drawbars lifting mechanism, Sealed Box, Material:3mm carbon steel | ||
2. Simple operation, self-loading and self-unloading | |||

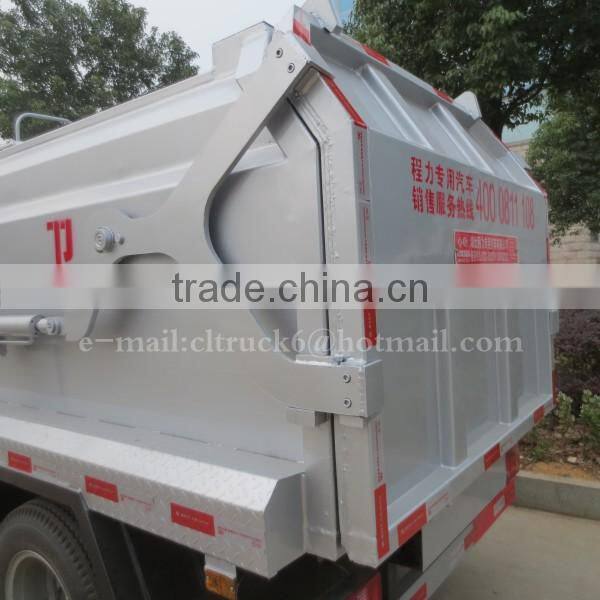

Multi-faceted Picture of 4*2 FORLAND Self-Loading Trash Truck 3 Ton:

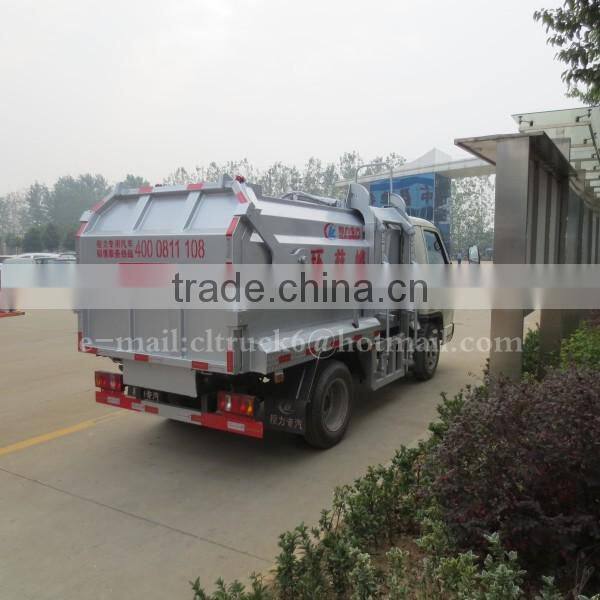

Left Side view of this Self-Loading Trash Truck :

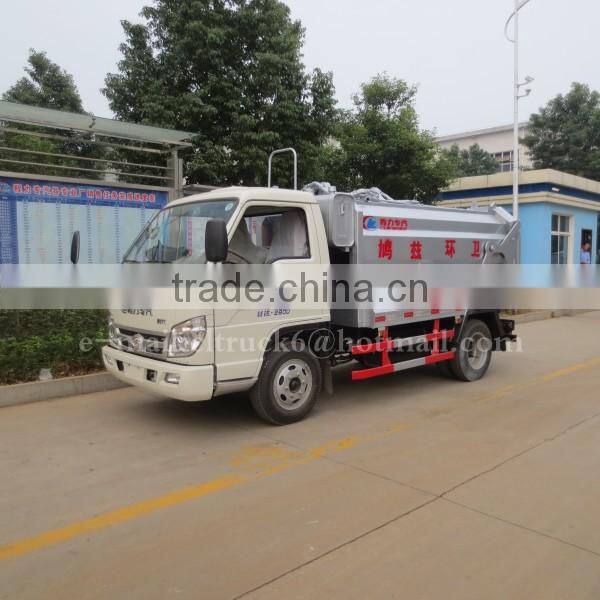

Main View of this Self-Loading Trash Truck :

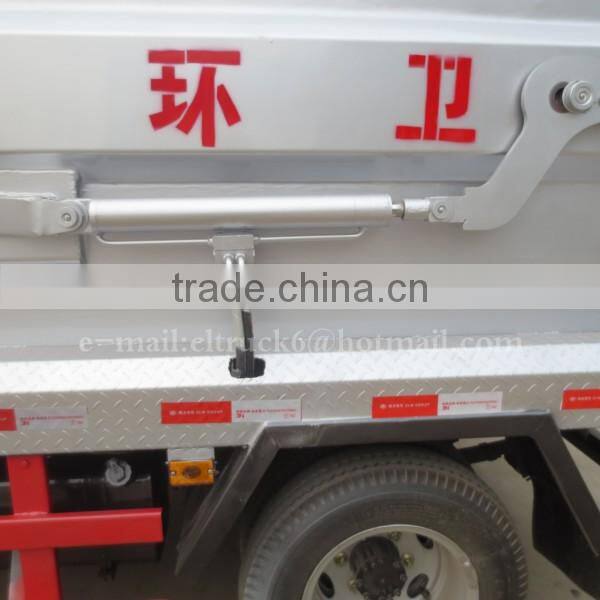

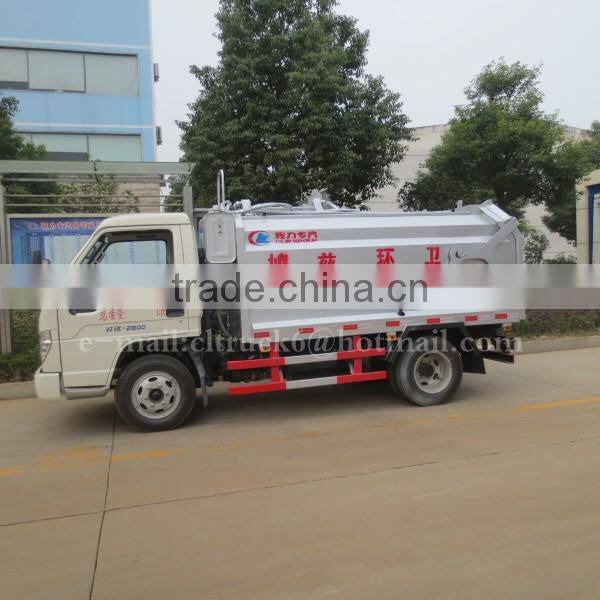

Side view of this Self-Loading Trash Truck :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
our Certificates:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
