vibratory bowl feeders Introduction:
The vibratory bowl feeders is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow, it also can feed materials into the crusher continuously and uniformly,and screen the materials in sand making and stone crushing production line. It is widely used to match the crushing and sieving equipments in many industries like metallurgy, mine, mineral dressing, building material, chemical, grinding,etc.
vibratory bowl feeders Features:
1.Stable and long service life
2.Easy to adjust
3.Reliable operation
4.Easy maintenance
5.Little pollution

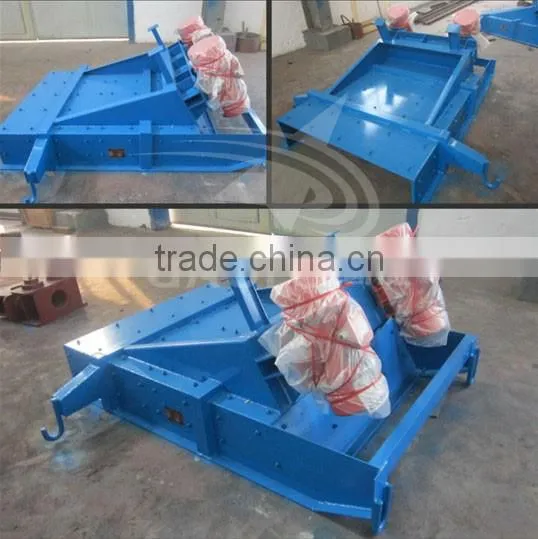

Vibrating Feeder structure
vibratory bowl feeders Principle:
This vibrating feeder adopts an eccentric block to produce centrifugal force which makes the movable parts like screen box and vibrator move continuously in a circle or an approximate circle. The material then vibrates and jumps with the screen box on the tilted screen and is then continuously and equably discharged.

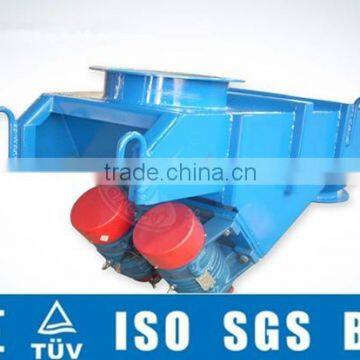

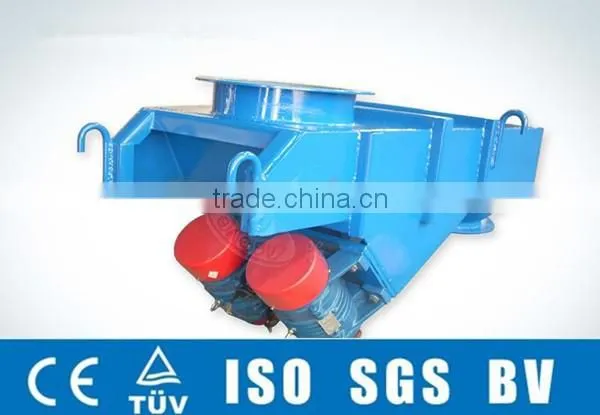

YZO series Vibrating Feeder special motor
vibratory bowl feeders Parameter:
|
Model
|
Max. Feeding Size (mm) |
Capacity
(t/h) |
Motor Power (KW) |
Installation Slope (°) |
Weight(kg) |
Cell size (mm) |
Dimension(mm) |
GZD-650×2300 |
300 |
80 |
1.5×2 |
10 |
2798 |
650×2300 |
2300×1360×780 |
GZD-750×2500 |
350 |
100 |
1.5×2 |
10 |
3260 |
750×2500 |
2500×1460×780 |
GZD-850×3000 |
400 |
120 |
3×2 |
10 |
3607 |
850×3000 |
3110×1800×1600 |
GZD-1000×3800 |
500 |
150 |
5.5×2 |
5 |
3895 |
1000×3600 |
3850×1950×1630 |
GZD-1100×4200 |
580 |
240 |
5.5×2 |
5 |
4170 |
1100×4200 |
4400×2050×1660 |
GZD-1100×4900 |
580 |
280 |
7.5×2 |
5 |
4520 |
1100×4900 |
5200×2050×1700 |
GZD-1300×4900 |
650 |
450 |
11×2 |
5 |
5200 |
1100×4200 |
5200×2350×1750 |
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
